HF scientific Online SCADA System User Manual
Page 19

(8/02)
Rev 1.2
17
3.3 Faceplate
Panel

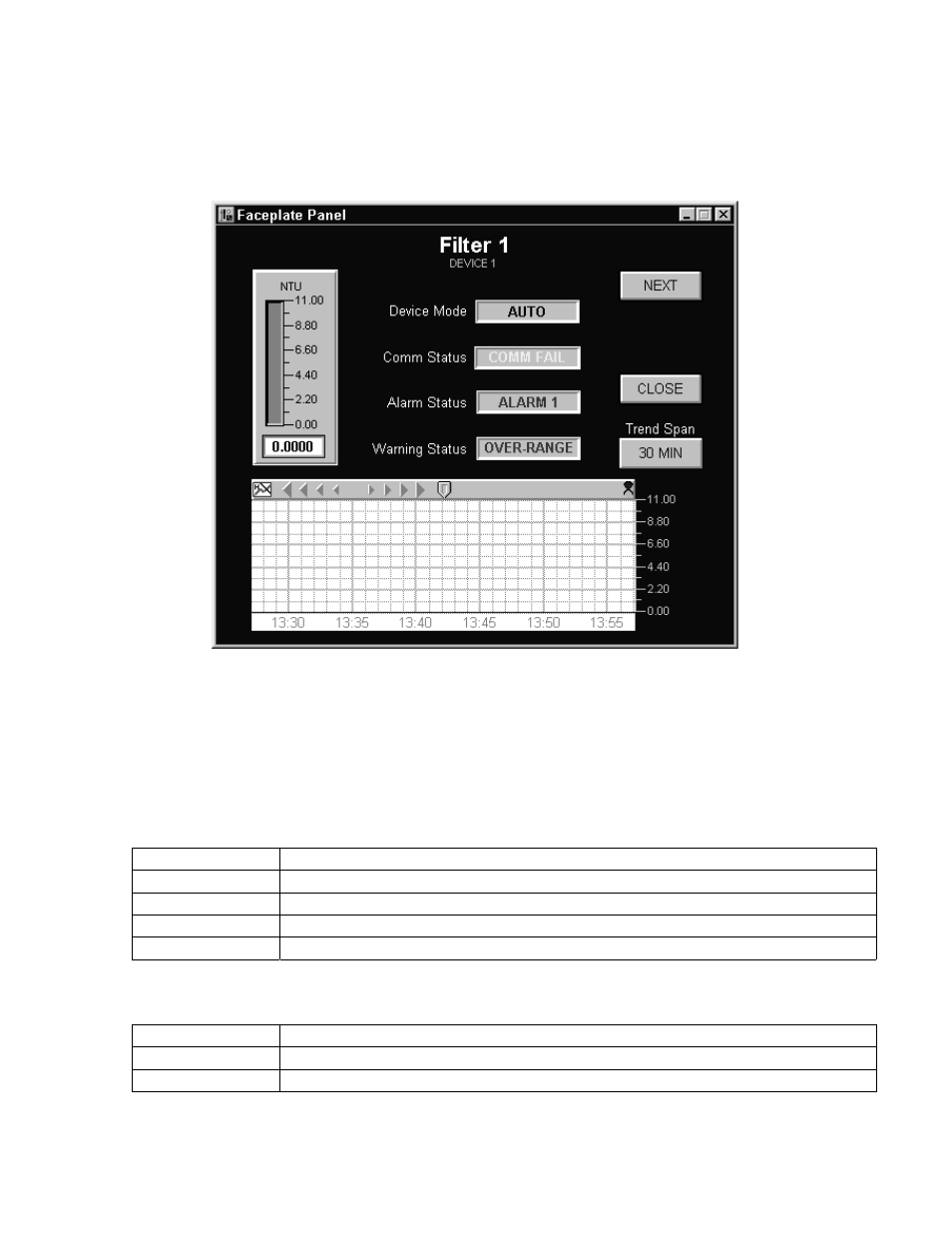

Fig. 3-2
The Faceplate Panel is accessed using the View Device push button on the
Summary panel or by clicking on any of the individual device summary displays
on the Summary panel. This panel provides the following information for each
device:
Device Mode: The modes indicated are as follows:
Mode Description
Unknown
Computer has not yet talked to device to determine the mode.
Calibrate
Device mode is “Calibrate”.
Set-Up
Device mode is “Set-Up”.
Auto
Device mode is “Auto”.
Comm Status: The Comm Status field will display one of the following values:
Comm Status
Description
Comm Fail
Computer cannot talk to device.
Normal
Computer is talking to device.
