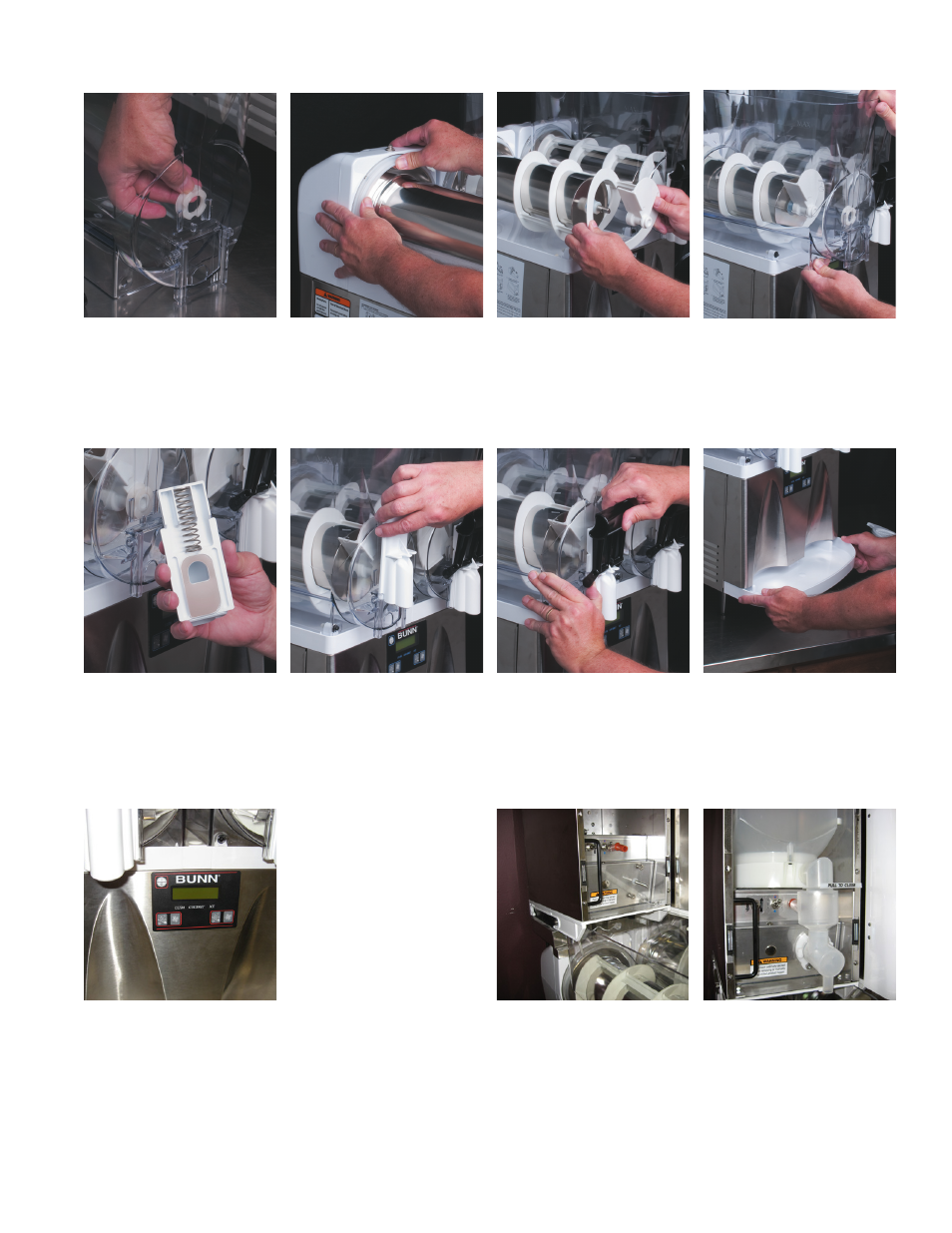

ASSEMBLY
2. Install the hopper seal over the
flange at the rear of the cooling
drum as shown.
3. Align the auger shafts with the
augers. Push the augers as far as
they will go and rotate them so
the flat face of the auger shaft is
aligned with the flat face of the
auger nose.
5. Position the faucet seal and
the return spring in the faucet
valve.
6. Slide the faucet valve assem-
bly into place on the hopper.
7. Press down on the valve to
compress the spring. Position
the faucet handle over the faucet
valve one side at a time and snap
into place on the hopper.
9. Turn ON augers and cooling
function to desired settings.
4. Install the hopper over the
auger and cooling drum and
slide it into place. Push down
until the hopper lock plunger
snaps into place.
1. Replace the auger nose bush-
ing inside the front of the hopper.
8. Install the drip tray and cover.
NOTE: Whether liquid concen-
trate or granulated powder, all
product must be thoroughly
mixed BEFORE adding it to the
hoppers.
10. Slide PAF assembly forward. 11. Reassemble and install all
PAF parts. Return power switch
to the ON position. Close Door.
