Express® Lavatory System - MG-Series with TouchTime® Control
MG-2/TT
Installation Instructions
18
2/8/07
Bradley Corporation • 215-1480 Rev. E; EN 06-915
1
2
3
4
5
6
7
8
9
8
DESCRIPTION
QTY.
PART NO.
REF.
1 1 118-307
VALVE BODY, 1/4" CLOSED
2 1 269-983 DIAPHRAGM
3 1 269-577 ARMATURE
4 1 269-578 SPRING
5 1 269-1729 ARMATURE
HOUSING
6 1 269-1730 CLAMP,
ARMATURE
HOUSING
7 1 269-579 COIL,
SOLENOID
VALVE
8 3 160-447 SCREW,
#8 X 5/8
9 1 125-165 O-RING,
#2-013
1
118-307A
VALVE BODY, 1/4" THRU
1

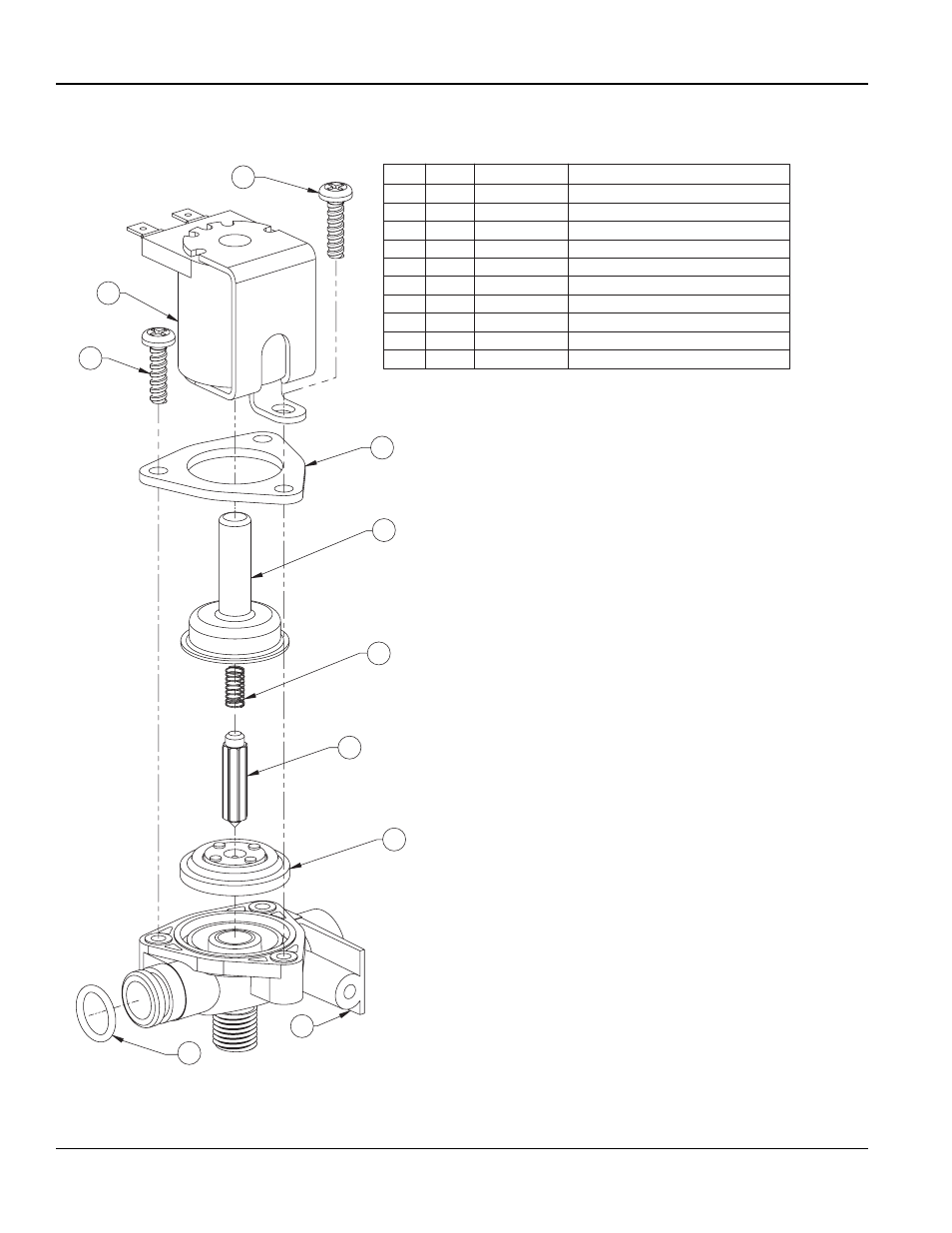

Figure 12
Solenoid Valve S07-067 (closed body) and S07-067A (thru body)
