Express® Lavatory System - MG-Series with TouchTime® Control
MG-2/TT
Installation Instructions
16 2/8/07 Bradley Corporation • 215-1480 Rev. E; EN 06-915
Assembly of Components continued . . .
1/4" CONNECTOR
145-089
SCREW-ALLEN SOCKET #10-24
160-138
AERATOR/HOUSING-FLOW
CONTROL
S05-142
SPACER
182-115

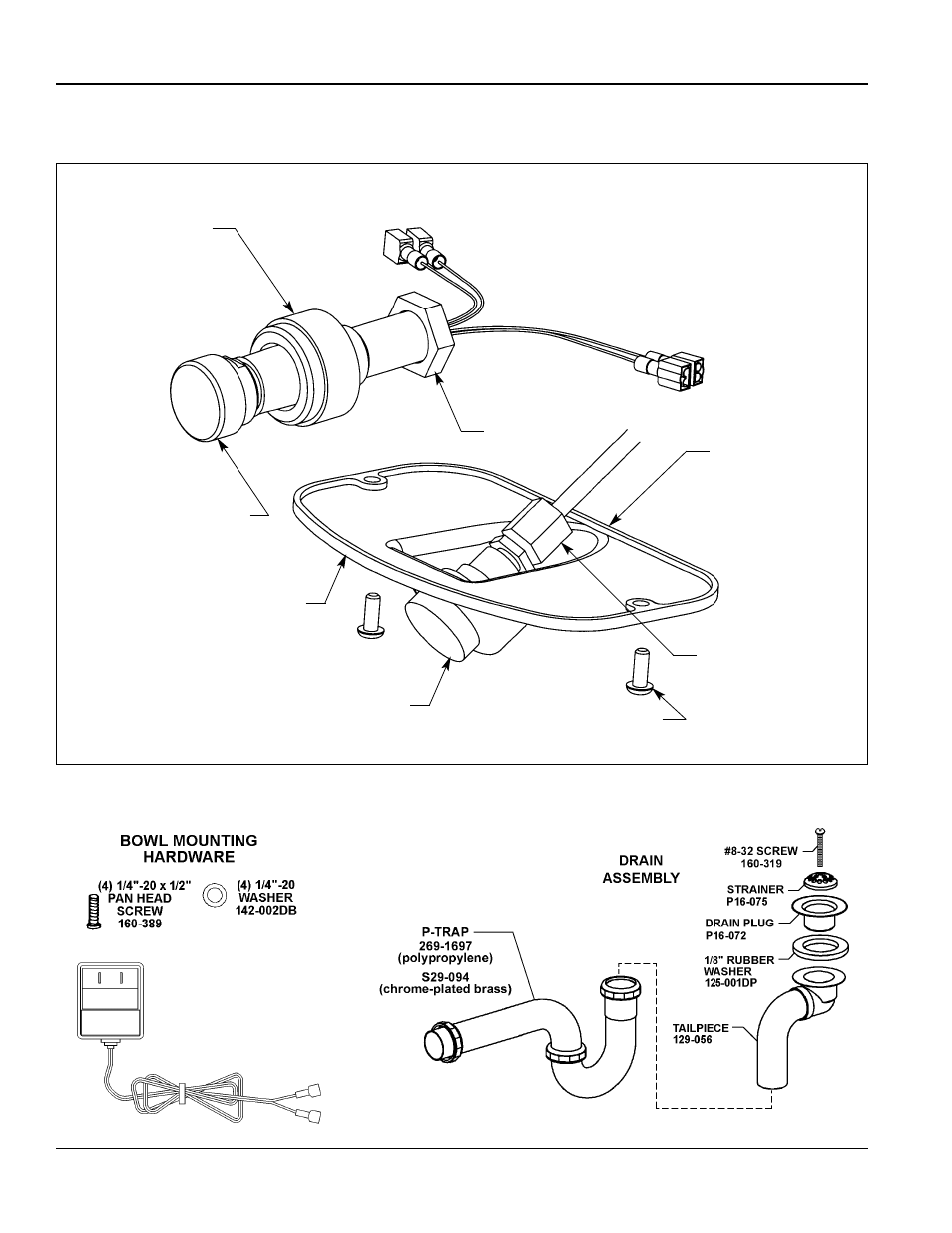

Figure 11
TOUCHTIME® SWITCH
(15-SECOND)
S83-139B
ACCESS PLATE/AERATOR
ASSEMBLY
S05-166
ACCESS PLATE
150-201
NUT
110-115
TouchTime® and Aerator/Access Plate Assemblies
Other replacement parts
110-24 VAC CLASS II
PLUG-IN TRANSFORMER
S83-134
