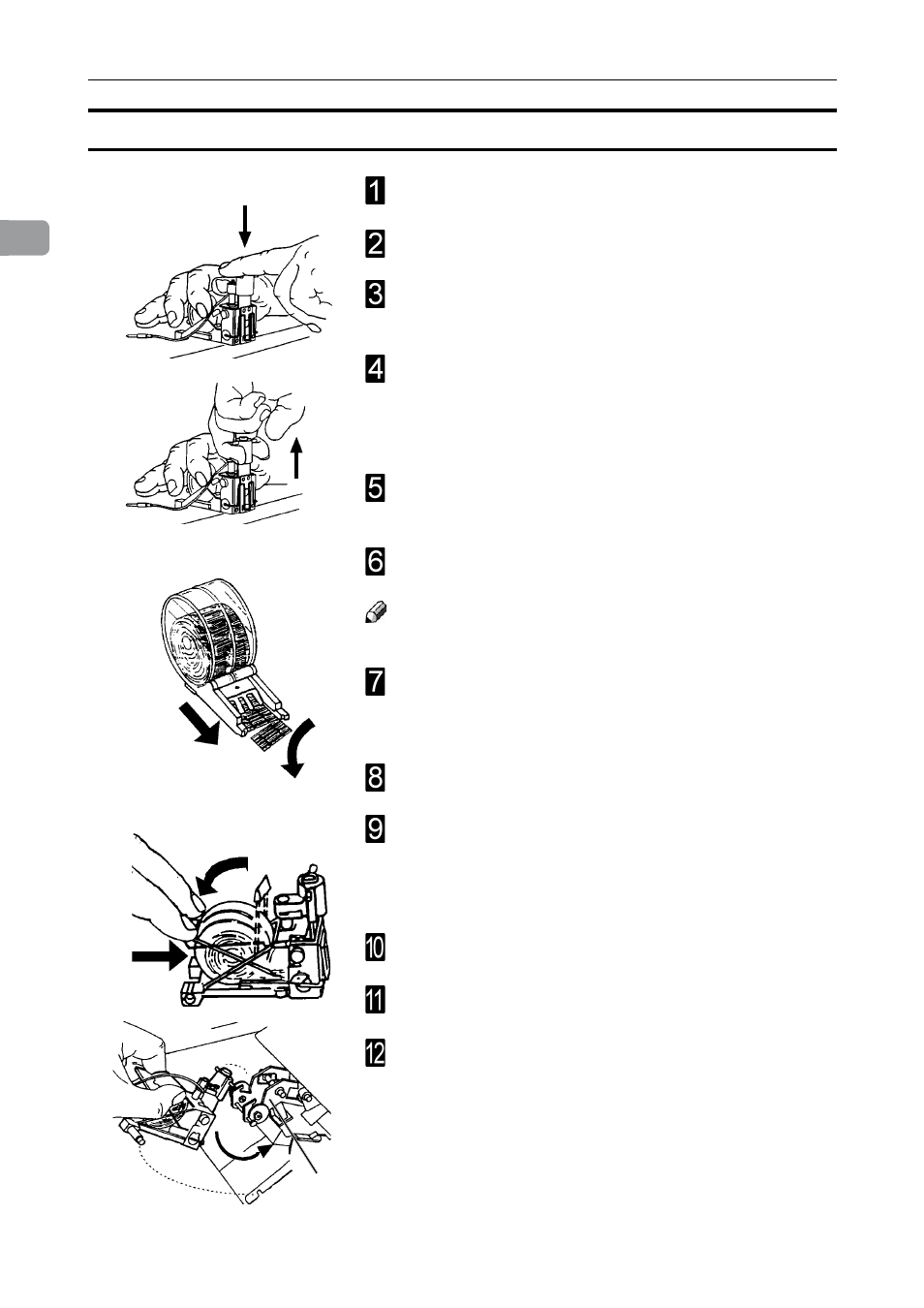

Look inside stapler head for jammed staples in the area

of the staple actuator. Remove staples if any.

Position the stapler head on the edge of a firm surface

(for example the top of a table).
While securely holding the head, actuate the Stapler

up and down through full travel. Perform this operation

without staple cartridge
Renewing or reinstalling the staple cartridge, pull 25

mm (1 inch) of staples out of the cartridge and tear the

staples downward starting at one side pulling away

from you. The staple tear line is indicated by an arrow

on the side of the cartridge.

Insert the cartridge into the stapler head with the end

of the staples facing toward the head of the stapler

mechanism. Push it firmly ahead.
Hold the staple cartridge firmly in place and push down

the cartridge locking lever.

Note

Keep holding (pushing) the staple cartridge into place while

pushing down the cartridge locking lever.

While securely holding the head, actuate the Stapler up

and down through full travel. Perform this operation with

staple cartridge. Repeat this a few times to ensure that

the staples are ejected at each down movement.
Reinstall the stapler head by inserting the pin at the top of

the stapler head into the stapler retraction swing arm (D).

While rotating the stapler head, insert the pin located

at the rear end of the stapler head into the slots in the

frame of the stapler head assembly. Press down the

rear end of the stapler head until the release lever snaps

into place, locking the stapler head in position.
Press down the front end of the stapler head until it

snaps in position under the frame assembly.
Reconnect the staple indication lead (A), see previous

page.

Close the top cover and press the [Esc] button. The

booklet maker will automatically go to Ready mode. If

not and/or error message persists, hand feed a four

sheet set of paper. The booklet maker will automatically

cycle and advance staples until both stapler heads are

driving staples. The booklet maker will automatically go

to Ready mode.

Installing stapler head, staple cartridge / clearing staple jam
