GBC 2000 Plockmatic Bookmaker - Manual (Page 9)

9
9
7

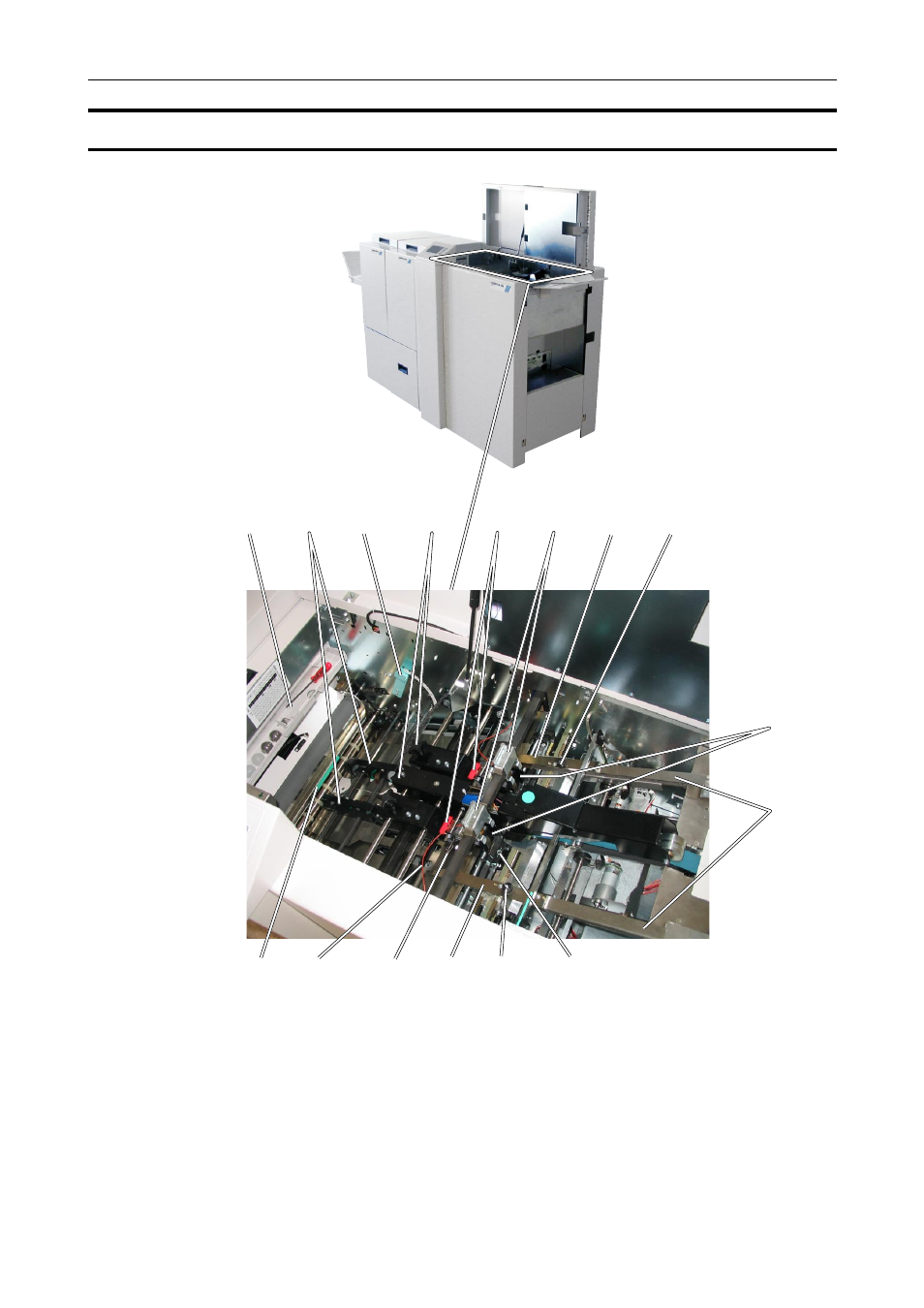

1 Tool box
2 Ball cage
Fold adjust lever, right side
Left side not shown in picture
4 Thumb screws for Stapler assy.
5 Cartridge locking levers
6 Stapler lift brackets
7 Side guide extension
8 Thumb screw for Side guide extension
9 Stapler heads
10 Side guides
11 Guide
12 Staple detection leads, one on each
stapler head
1 Locking pin, one on each stapler head
14 Clincher, left side. Right side not shown
in picture
Booklet Maker, continued
1
8
11
5 2 4
10
6
7 8
Booklet maker,
top view
1
12 14
