Designed by aerobatic world champion Quique Somenzini, the Ultra Micro extreme (UMX) Beast

®

3D BNF

Basic is a thrilling small-scale recreation of one of the most awe-inspiring airplanes ever created. At its
heart is the revolutionary AS3X

System built in to help provide you with a true 3D experience, the ability

to fl y indoors, and handle windy conditions outdoors. The added punch of its stronger 2500Kv, 180BL
outrunner motor delivers an outstanding thrust to weight ratio. But beyond the capability to better perform
all-out 3D, you will fi nd that the Beast 3D with AS3X gives you unmatched precision in its size-class and
remarkably stable handling. Surprisingly, all of the performance possible from the UMX

Beast 3D BNF

Basic only requires basic radio programming. And even though your new model is fully assembled, please
read and follow this manual completely to be sure you’re ready to take full advantage of what this awesome
RC aircraft has to offer.

To register your product online, go to www.e-fliterc.com

Table of Contents

Specifi cations .......................................................3
Prefl ight Checklist .................................................4
AS3X

Stabilization ..............................................4

Low Voltage Cutoff (LVC) .......................................4
Transmitter and Receiver Binding ..........................5
Installing the Flight Battery ...................................5
Arming the ESC ....................................................6
Control Direction Test ............................................6
Control Centering .................................................6
Settings for Control Horns .....................................7
Dual Rates ............................................................7
Adjusting Center of Gravity (CG) ............................7

Flying Tips and Repairs .........................................8
Additional Safety Precautions and Warnings ..........9
Service of Power Components ............................10
Troubleshooting Guide ........................................11
Troubleshooting Guide (Continued) ......................12
Warranty and Repair Policy .................................13
Warranty and Service Information .......................14
Compliance Information for the European Union ..14
Parts Contact Information ...................................54
Replacement Parts ..............................................54
Optional Replacement Parts ................................55

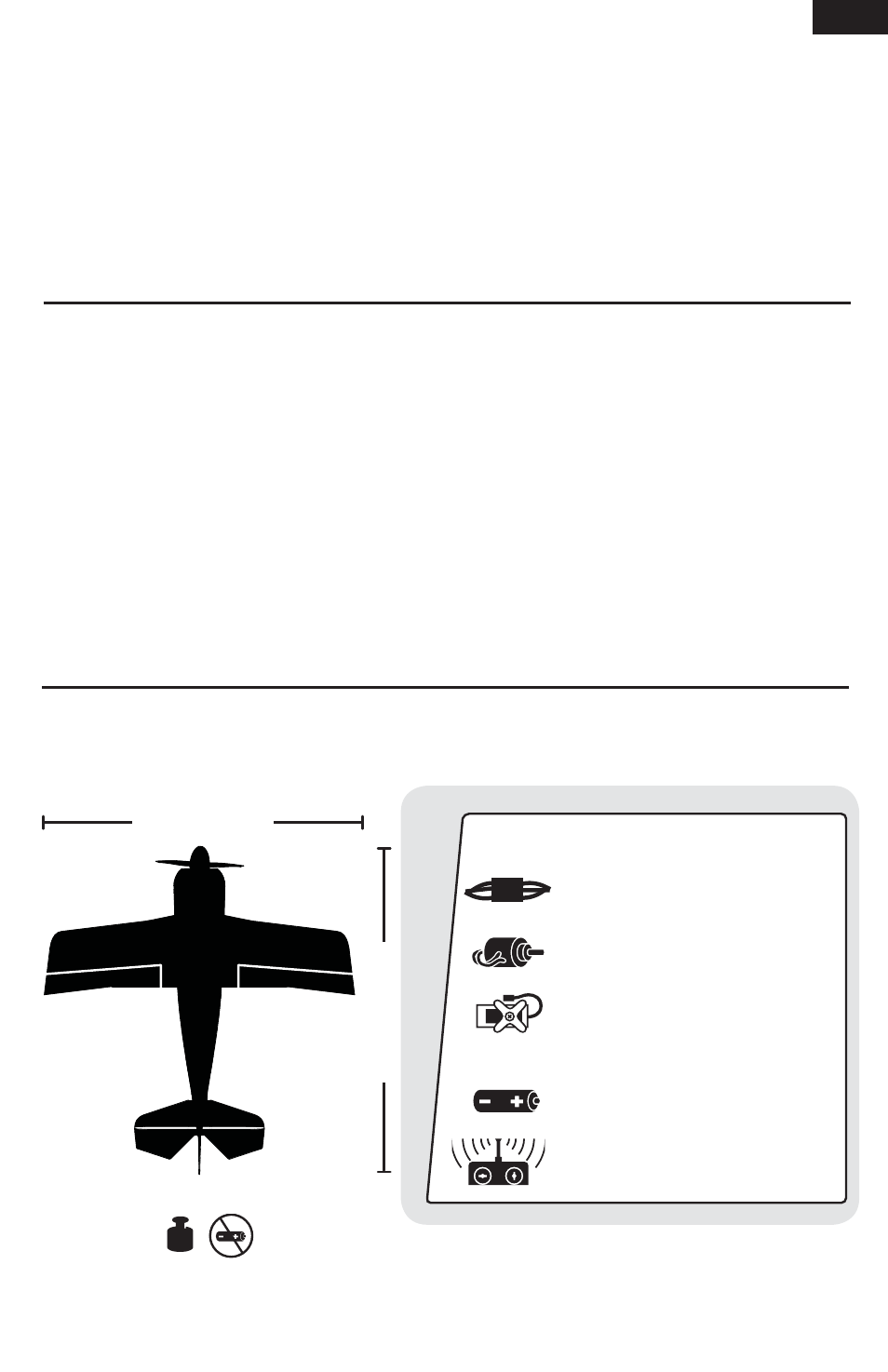

EFLU4864 DSM2 6Ch Ultra Micro
AS3X Receiver BL-ESC

BL180 Brushless Outrunner
Motor, 2500Kv

(4) 2.3 g Performance Linear Long
Throw Servo

Battery: 180mAh 2S 20C Li-Po
Battery Charger: 2S 7.4V Li-Po
Recommended Transmitter:

Spektrum

DSM2

/DSMX

®

full range

with dual-rates (DX4e and up)

Needed to Complete

Installed

15.7 in (400mm)

14.7 in (372mm)

2.0 oz (58 g)

Specifi cations
