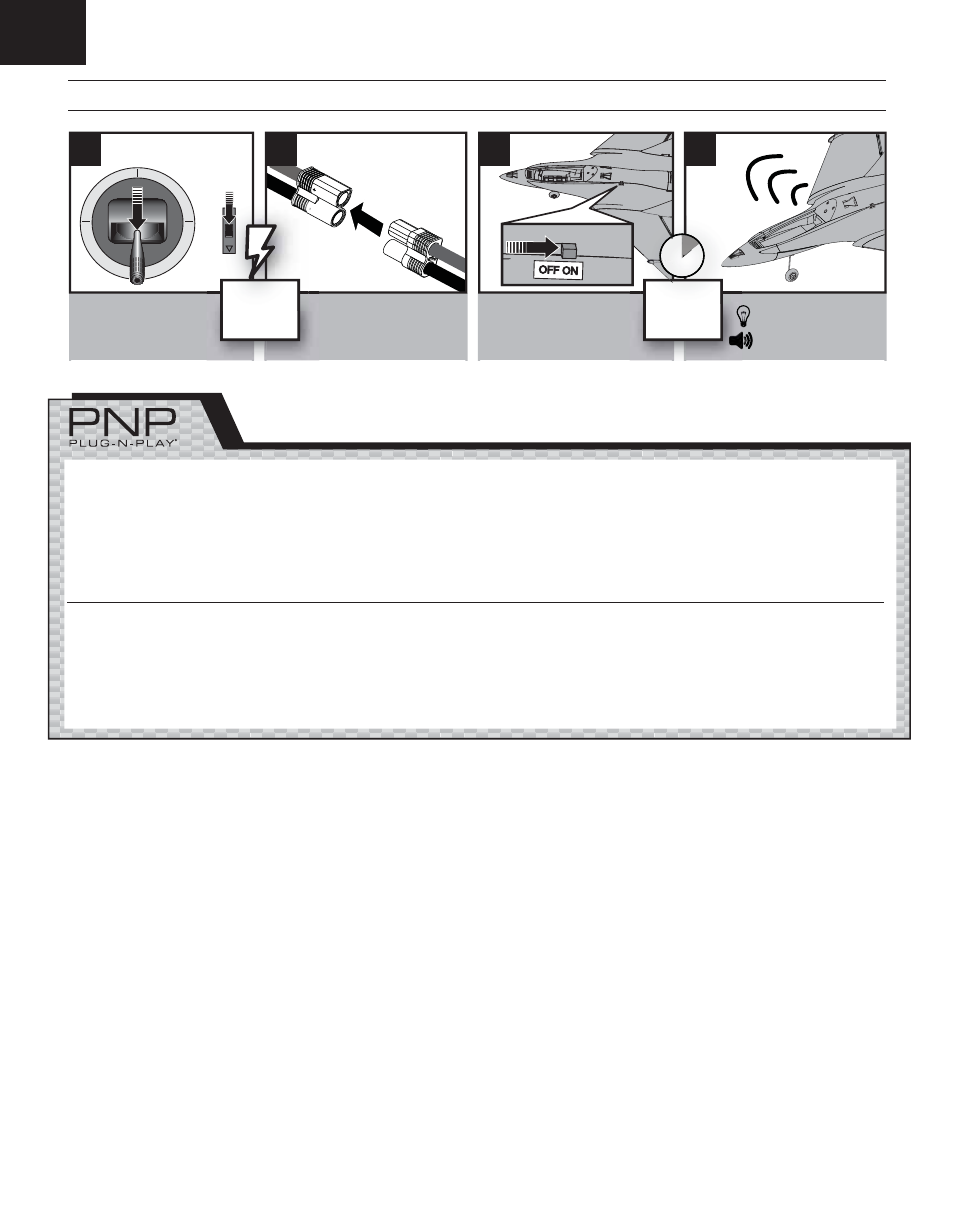

• Lower throttle and
throttle trim to
lowest settings.
• Connect battery to ESC. Continuous LED
Series of tones
• Power on ESC switch.
Power on
Transmitter
Wait 5
seconds
Before Flight
6 6
Installing a Receiver
Battery Selection and Installation
1. Install your full-range receiver in the fuselage using hook and loop tape or
double-sided servo tape.
2. Attach the right aileron to the elevator channel of your receiver. Attach the
left aileron to the aileron channel of your receiver.
3. Attach the Gear to channel 5.
4. Attach the Vector Thrust (VT) to AUX 1.
5. You will also need to activate the delta wing/elevon confi guration of your
transmitter.
For specifi c setups for JR ® /Spektrum 6+ channel transmitters, see the
“Transmitter Setup or Model Setup” sections in this manual.
6. Attach the ESC connector to the throttle channel of your receiver.
1. We recommend the E-fl ite 3200mAh 4S 14.8V 30C Li-Po Battery
(EFLB32004S30).
TIP: To fi nd the correct CG, start by installing the 3200mAh battery all the way
to the front of the battery cavity, then adjust as needed until the desired CG is
achieved.
2. If using another battery, the battery must be at least a 30C 3200mAh
battery.
3. Your battery should be approximately the same capacity, dimensions and
weight as the E-fl ite Li-Po battery.
