E-flite Cap 232 BP ARF - Manual (Page 34)

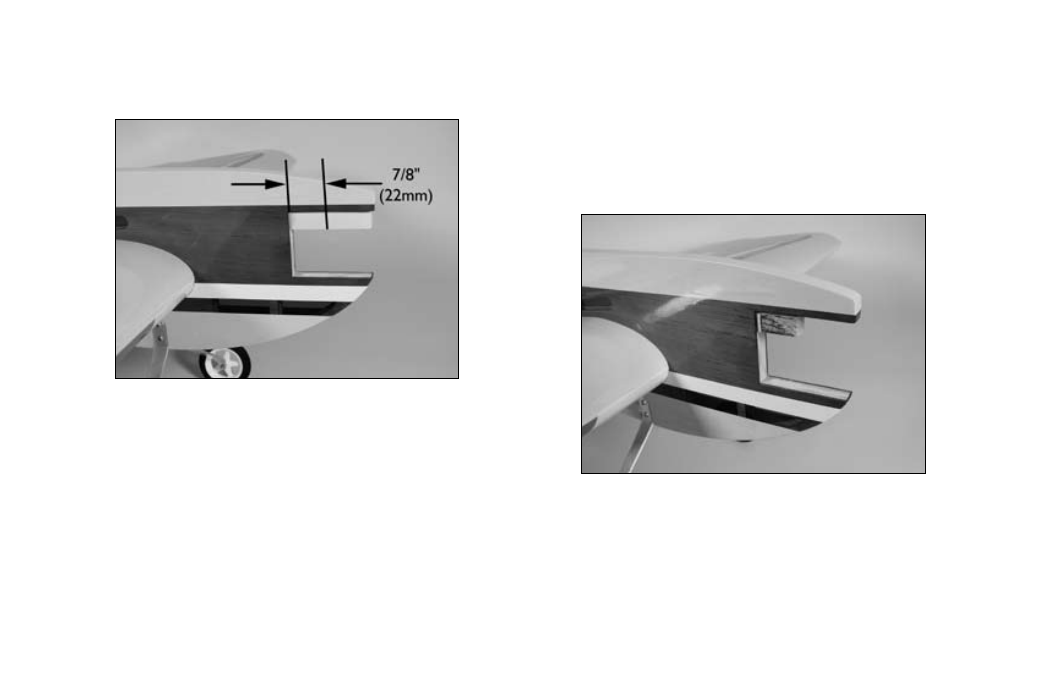

 2. Cut the motor stick to a length of 7/8" (22mm)
as shown when using the Park 450 motor.
Note:.If.you.are.using.a.park.400,.you.can.use.
the.same.measurement.as.the.Park.450,.or.cut.
the.motor.stick.to.a.length.of.1
1 / 8
".(28mm).to.
position.the.propeller.in.the.same.location.as.
the.Park.450..Either.way,.you.will.have.plenty.
of.clearance.between.the.propeller.and.front.of.
the.fuselage.
 3. Use medium CA to glue the two motor offset
shims to the sides of the motor stick. This is
necessary to provide the correct thrust angle for
the motor. Make sure the thin end on the left shim
is towards the front, and the shim on the right has
the thick end of the shim towards the front.
Note:.The.left.and.right.of.the.aircraft.are..
as.viewed.while.sitting.in.the.pilot.seat..The.
photo.above.shows.a.view.of.the.right.side..
of.the.fuselage.
34
