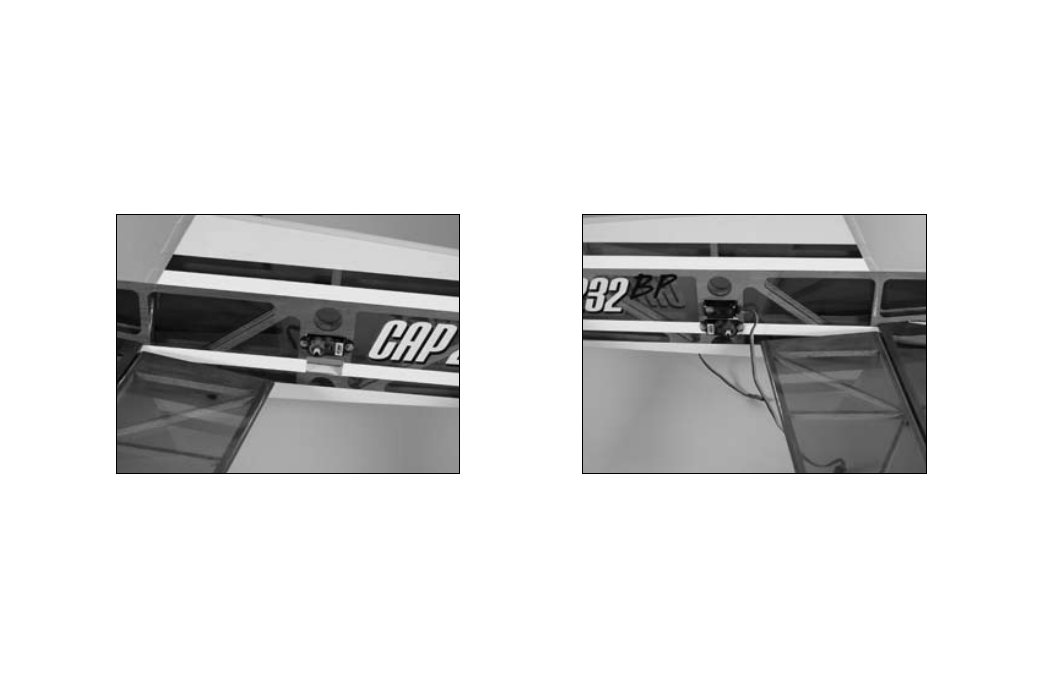

2. The elevator servo is installed in the upper

hole in the fuselage using the hardware provided
with your servo. Pre-drill the holes for the servo
mounting screws using a drill and 1/16" (1.5mm)
drill bit. The output of the servo will be on the left
side facing the front of the plane.

3. The rudder servo is installed in the lower hole

using the hardware provided with your servo.
Pre-drill the holes for the servo mounting screws
using a drill and 1/16" (1.5mm) drill bit. The
output for the rudder servo will be opposite the
elevator servo facing the front of the plane.
