Installation

1. Before beginning installation determine the

system pressure.

Open a faucet to allow the system pressure to equalize.

Read the system pressure at the Pressure Gauge
(Figure 1).

Close faucet.

2. The Expansion Tank Pre-Charge must be set to the system

pressure as determined in Step 1.
Note: The normal pre-charge is 20psi. Do not exceed 80
psi. If system pressure exceeds 80psi, it will be necessary
to either: A. Add a pressure Reducing Valve to the system
or, B. Locate the expansion tank in a riser where the static
pressure is below 80psi.

Unscrew the protective cap from the air inlet valve.

Using a tire pressure gauge check the tank pre-charge
pressure.

If necessary, pressurize the tank to the proper setting us-
ing a manual bicycle tire pump. Caution do not
exceed 80psi.

Replace the protective air cap.

3. Shut off the water supply valve.

4. Shut off power source to the hot water heater, (electricity,

gas, oil burner switch), and drain system following water
heater manufacturer recommendations.

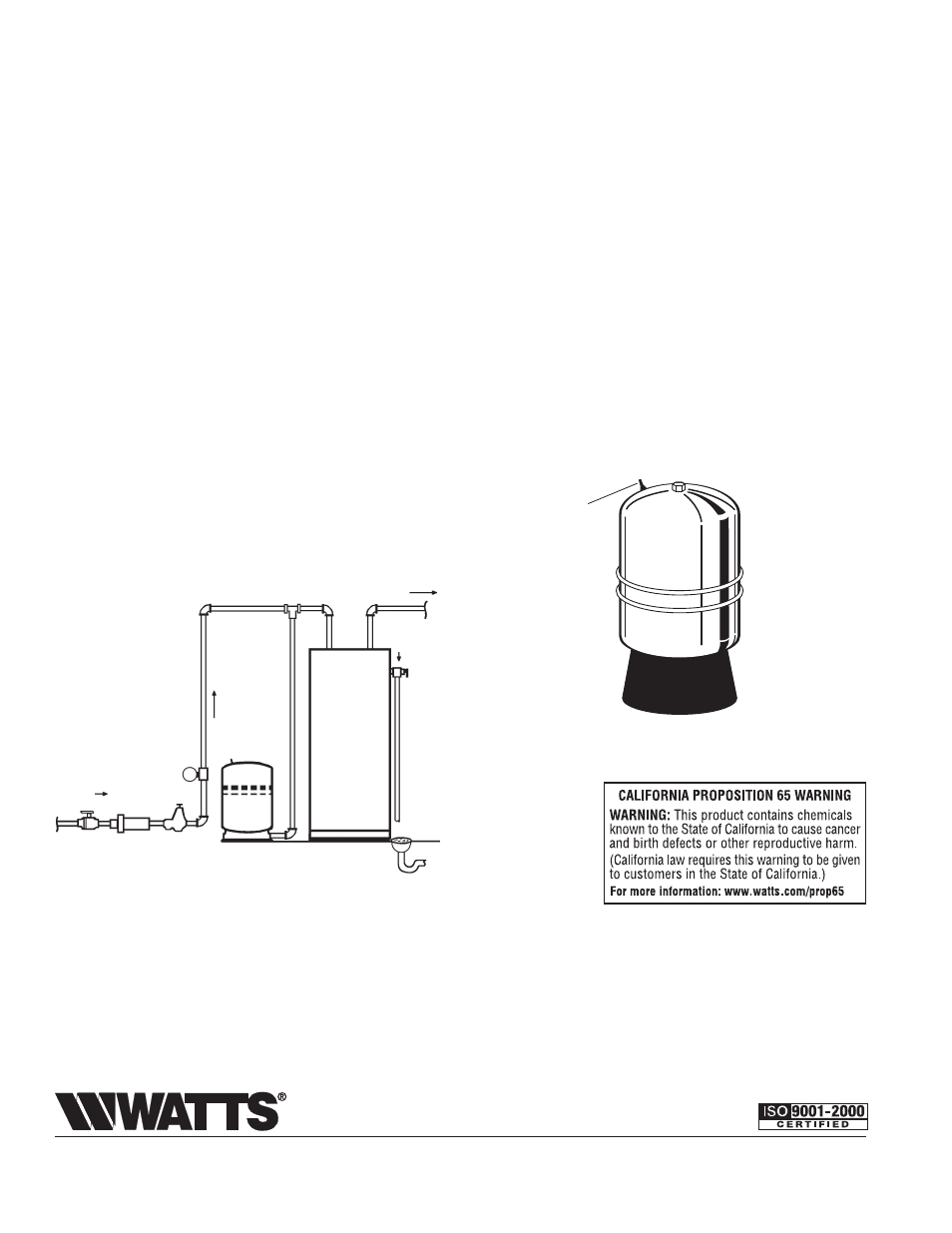

5. Install the Expansion Tank in the System (refer to Figure 1).
a.

This Expansion Tank, as all Expansion Tanks, may even-
tually leak. Do not install without adequate
drainage provisions.

Note: Product information is subject to change without notice and
supersedes all previous publications.

Air Inlet
Valve Cap

Watts
Shutoff Valve

Watts
Backﬂ ow
Preventer

ater Pressure Gauge

Water Heater

Expansion

Tank

To System

Watts
T&P Safety
Relief Valve

Discharge Line

Watts Pressure
Reducing Valve

Figure 1

Water
Supply

Important!

•

A Pressure Relief Valve sized and installed in accordance
with Local Codes must be incorporated in the system.
In those systems requiring a combined Temperature and
Pressure Safety Relief Valve, the Temperature and Pressure
Safety Relief Valve should be sized and installed in accor-
dance with Local Codes.

•

Never plug a Safety Relief Valve.

6. Turn on the water supply valve.

7. Open a hot water ﬁ xture and allow water ﬂ ow until

all air is removed from the system.

8. Reapply power to the hot water heater.

9. Open a hot water ﬁ xture to allow a slight ﬂ ow until

the hot water has reached operating temperature.

10. Re-check system pressure following Step 1.a through c.

Caution: Do not adjust the air pre-charge of the Expansion
Tank with the system under pressure. The air pre-charge
should only be adjusted under zero system pressure.

If necessary adjust the Pressure Reducing Valve to the
Expansion Tank Pre-charge as determined in Step 2.

IS-PLT-35 0932

EDP#2915055

USA: 815 Chestnut St., No. Andover, MA 01845-6098; www.watts.com

Canada: 5435 North Service Rd., Burlington, ONT. L7L 5H7; www.wattscanada.ca
