Step 15 ..Ab.Bracket.Assembly
parts:
.•...Abdominal.Bracket.(2.pieces)
Hardware
(1:1):
.•...2.Button.Head.Screws.(3/8".X.2.3/4")
•...4.Washers.(3/8")
•..2.Lock.Nuts.3/8.-16
tool:
7/32".Hex.Wrench
15-1

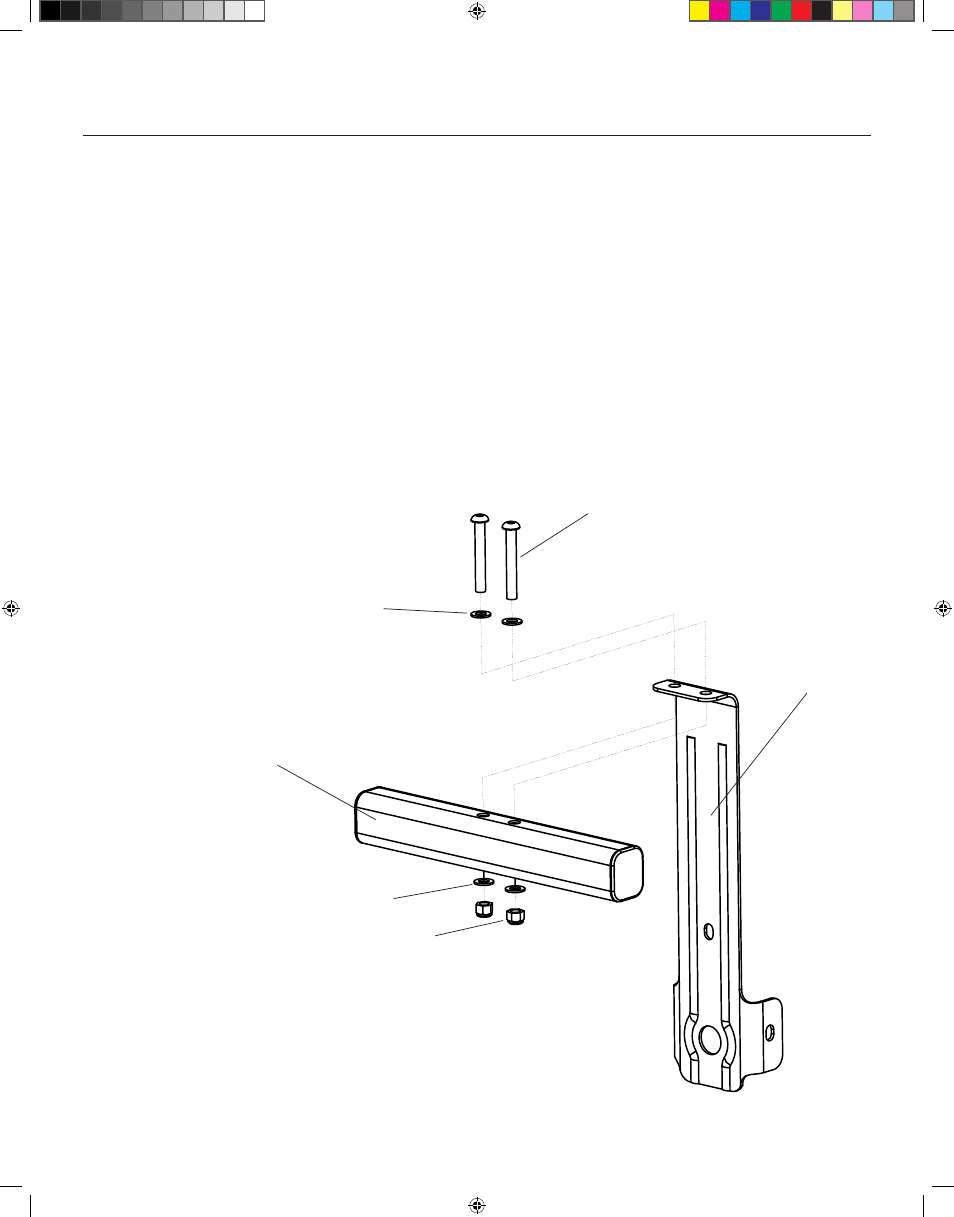

...Attach.the.Ab.Lat.Cross.Bar.to.the.Ab.Bracket.as.shown ..
Assembly Guide
Ab.Bracket
Ab.Lat.Cross.Bar
Flat.Washer
Lock.Nut
Flat.Washer
Button.Head.Cap.Screw
