Watts HY-800 User Manual
Hy-800, Non-freeze yard hydrant
ES-WD-HY-800 1035
© 2011 Watts
Tag:
SPECIFICATION:
Watts Drainage HY-800 non-freeze yard hydrant with epoxy coated cast iron head with lift handle and
lock option, galvanized casing, bronze internal working parts and valve housing, and 1/8" NPT drain port.
Non-Freeze Yard Hydrant
HY-800
3'(914) Depth
-3
4'(1219) Depth
-4
5'(1524) Depth
-5
Depth of Bury (Select One)
Suffix Description
6'(1829) Depth
-6
2'(610) Depth
-2

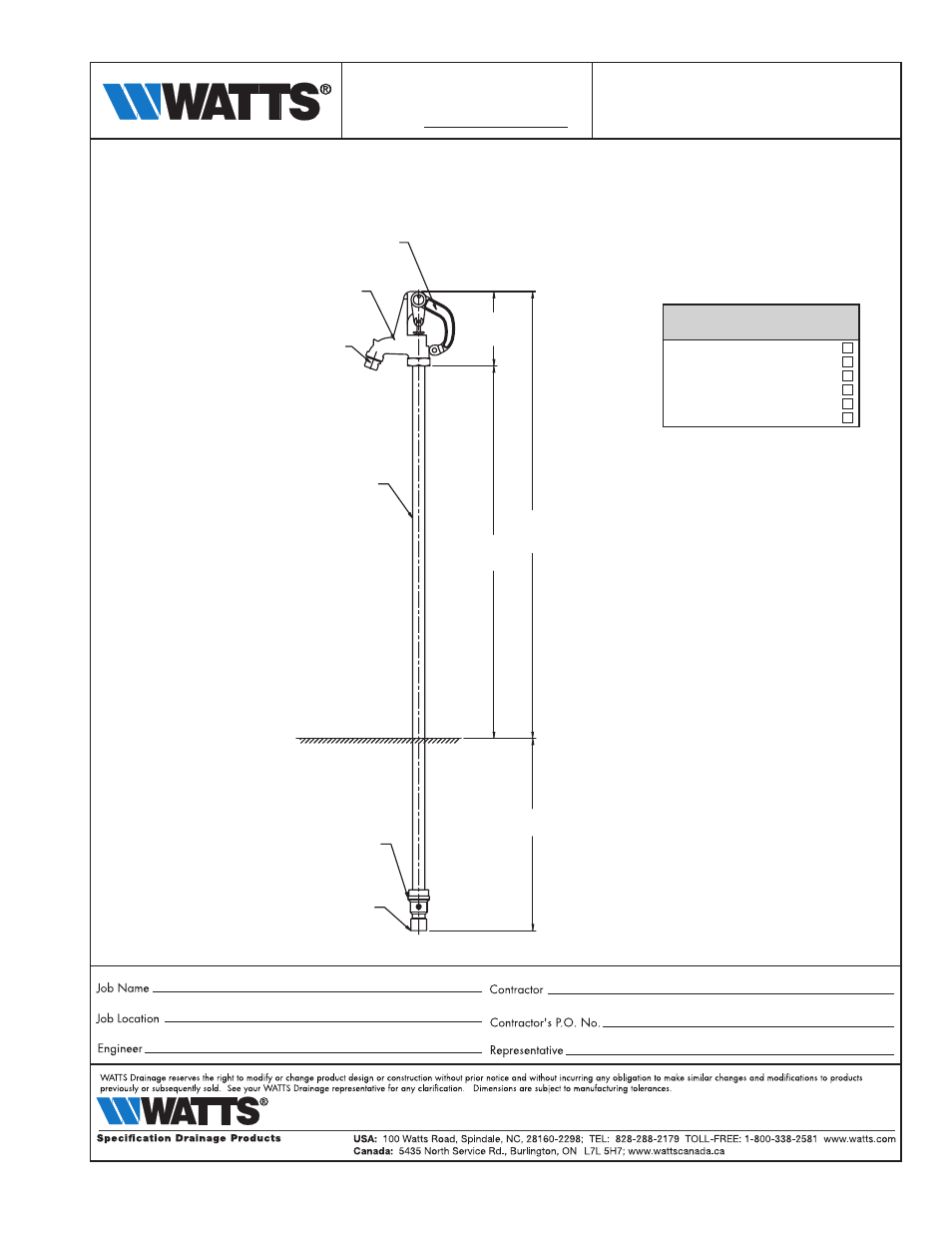

CAST IRON LIFT HANDLE
HEAVY DUTY CAST
IRON HEAD CASTING
3/4” MALE HOSE
CONNECTION
1” GALVANIZED
STEEL CASING
GROUND LEVEL
DRAIN PORT TAPPED
FOR 1/8” NPT
COMBINATION 3/4” FEMALE
OR 1” MALE THREADED
INLET CONNECTION
BURY DEPTH
36"
(914)
30"
(762)
6"
(152)
1'(305) Depth
-1
✔
