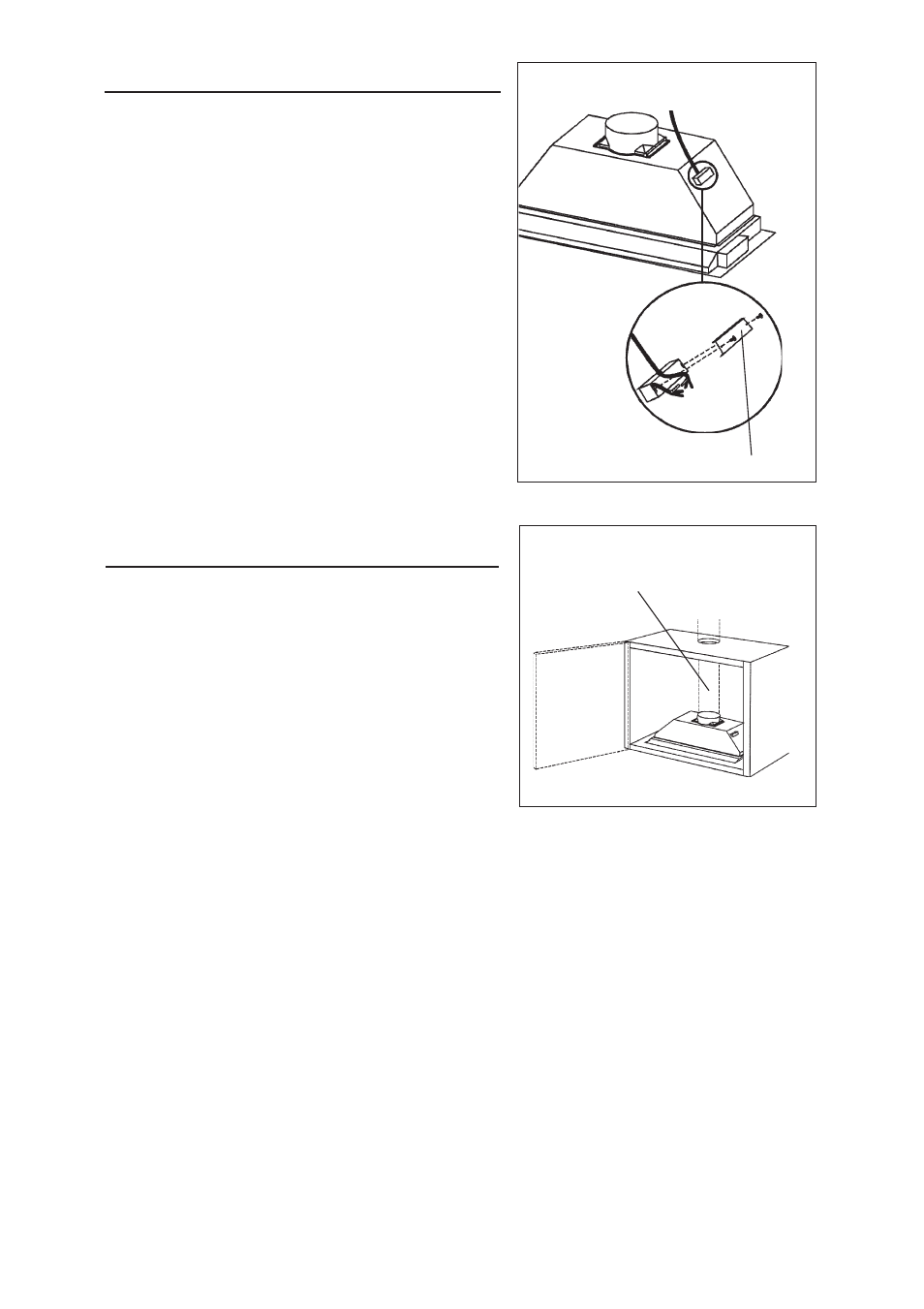

WIRING

Note: This range hood must be properly
grounded. The unit should be installed by a
qualified electrician in accordance with all
applicable national and local electrical codes.

1. Remove the wiring box cover. Remove a

knockout from the wiring box.

2. Secure the conduit to the wiring box

through a conduit connector.

3. Make electrical connections. Connect white

to white, black to black and green to green.

4. Replace wiring box cover and screws. Make

sure that wires are not pinched between
cover and box.

WIRING BOX COVER

CONNECT DUCTWORK

1. Use 8" round metal duct to connect the

duct connector on the hood to the ductwork
above.

2. Use duct tape to make all joints secure and

air tight.

8” ROUND METAL DUCT
