- 6 -

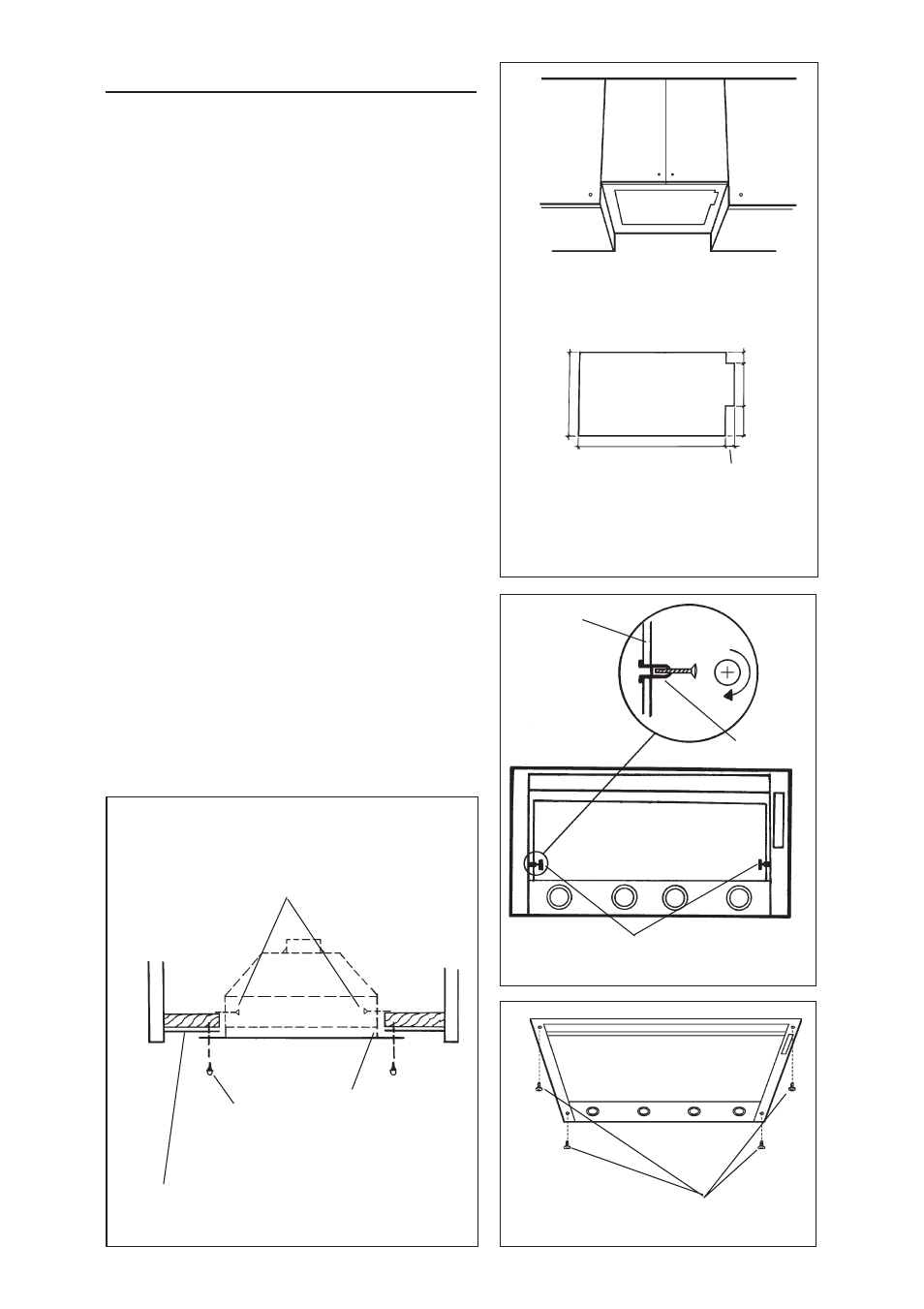

CUT A HOLE IN THE BOTTOM OF

THE CABINET

1-9/16"

1-5/8"

14-15/16"

8-3/4"

4-9/16"

INSTALL THE HOOD

1. Cut a hole in the bottom of the cabinet in

order to settle the hood.

2. Insert (2) mounting screws (M4x30mm

Pan Head) through side of hood behind
filters with bushing so they do not
protrude externally.

3. Insert the hood and attach it temporarily

using the (2) mounting screws
(M4x30mm Pan Head).

4. After unit is inserted and is flush with

bottom of opening, secure the hood
with (4) mounting screws (4,2x15mm
Pan Head).

BUSHING

FRAME

TOTAL
OF 2

2 MOUNTING SCREWS

(M4x30)

4 MOUNTING SCREWS

(4.2x15mm)

(2)

MOUNTING

SCREWS

(M4x30mm)

4 MOUNTING

SCREWS

(4,2x15mm)

METAL OR OTHER

NON-COMBUSTIBLE

MATERIAL

SEE

CUTOUT

DIMENSIONS

A = 26-1/8” (PK2229)

34-3/4” (PK2238)
