Page 11
3/8 ” Black Tube Connection from Faucet
Measure the black tube from faucet to the black drain saddle and
make a straight cut through tube.
Insert black tubing into the quick connect port. Make sure tubing
is pushed all the way in.
This is a gravity feed line, if there is any bend or dip in the
tube the rinse water will not fl ow into the drain properly.
Water may back up and come out of the air gap hole in the
back of the faucet base.
The tubing must be as SHORT and STRAIGHT as possible
to the drain saddle, making a downward slope from faucet
to drain saddle to allow for proper drainage.
Step 24
Note:
Note:
Step 23

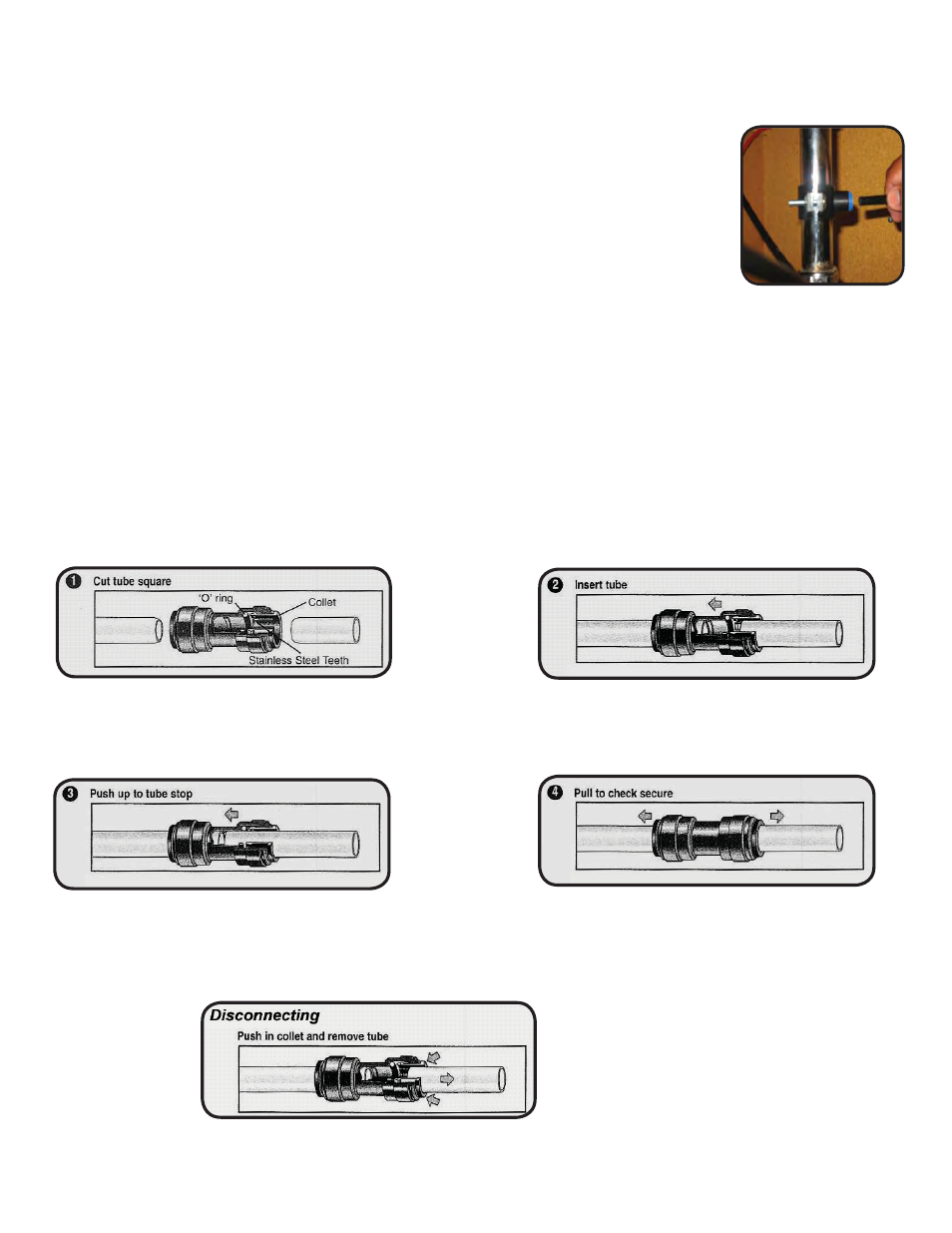

How To Use the Quick Connect Fittings on the RO Module
To make a connection, the tube is simply pushed into the fi tting.
It is essential that the outside diameter be free of score
marks and that burrs and sharp edges be removed before
inserting into fi tting.
Fitting grips before it seals. Ensure tube is pushed into
the tube stop.
Push the tube into the fi tting, to the tube stop. The collet
(gripper) has stainless steel teeth which hold the tube
fi rmly in position while the O-ring provides a permanent
leak proof seal.
Pull on the tube to check that it is secure. It is a good practice
to test the system prior to leaving site and /or before use.
To disconnect, ensure the system is depressurized before
removing the tube. Push in collect squarely against face
of fi tting. With the collet held in this position, the tube can
be removed. The fi tting can then be reused.
