2 Installation
850 Professional IC– Cation
￭￭￭￭￭￭￭￭ 27
4 Installing tubing weighting and aspiration filter
1 2 3 4 5

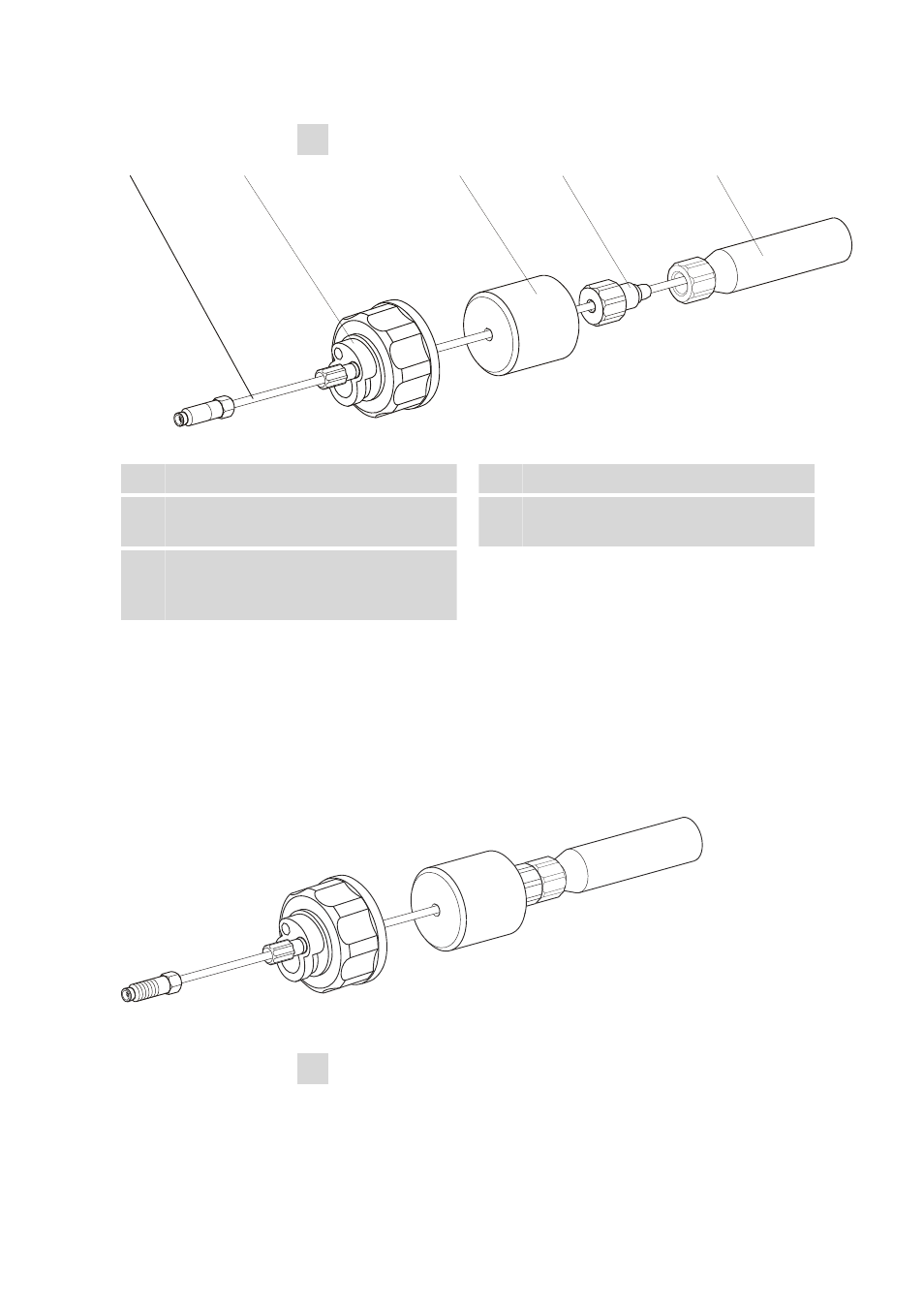

Figure 13 Installing tubing weighting and aspiration filter
1 Eluent aspiration tubing 6.1834.080 2 Eluent bottle attachment 6.1602.160
3 Tubing weighting
From accessory set 6.2744.210. 4 Clamping screw
From accessory set 6.2744.210.
5 Aspiration filter 6.2821.090
With filter holder from accessory set
6.2744.210.
￭ Slide the tubing weighting (13-3) onto the eluent aspiration tub-
ing (13-1).
￭ Slide the clamping screw (13-4) onto the eluent aspiration tubing
(13-1).
￭ Insert eluent aspiration tubing (13-1) into the aspiration filter
(13-5). The end of the tubing must touch the base of the filter.
￭ Screw together clamping screw (13-4) and filter holder (12-1).
The end of the tubing must still touch the base of the filter.
Figure 14 Eluent aspiration tubing fully equipped.
5 Mounting eluent aspiration tubing to the eluent bottle
￭ Insert the eluent aspiration tubing into the eluent bottle (15-10).
