3.4 Setting up the extension module next to the IC instrument
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
18 ￭￭￭￭￭￭￭￭
872 Extension Module IC Module
3 Mounting the bottle holder
1
2
1
2

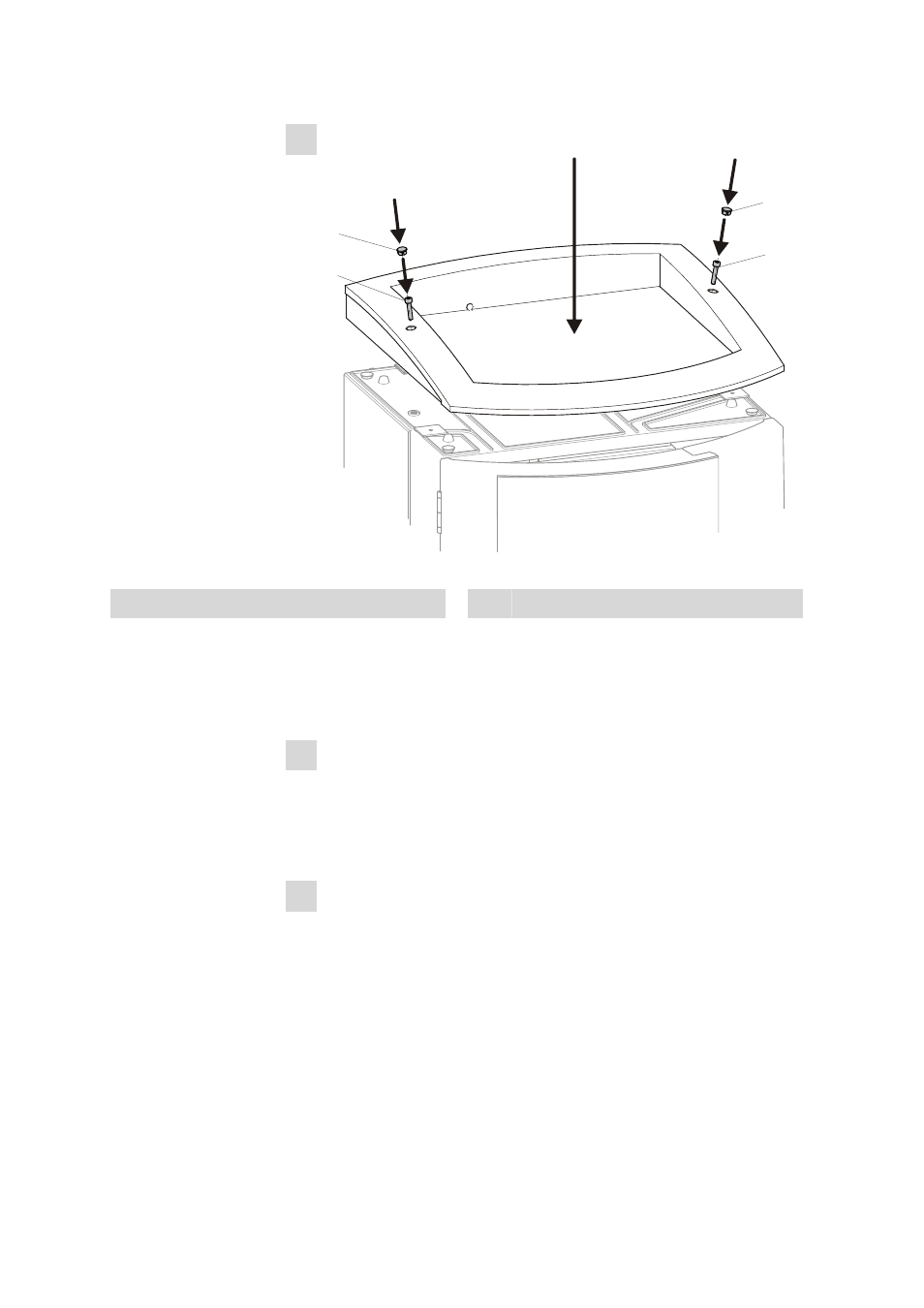

Figure 9 Mounting the bottle holder
1 Cover stoppers 2 Cylinder screws
￭ Place the bottle holder on the extension module.
￭ Tighten the cylinder screws (9-2) with an 6.2621.100 3 mm hexa-
gon key.
￭ Insert covering stoppers (9-1).
4 Connecting the extension module
￭ Plug a 6.2156.060 cable into the connector In of the extension
module and screw it tight.
￭ Plug the other end of the cable into the Extension module con-
nector of the IC instrument and screw it tight.
5 Optional: Connecting a further extension module
￭ Plug the cable 6.2156.060 or a longer 6.2156.070 cable (optional
accessory) into the connector In of the second extension module
and screw it tight.
￭ Plug the other end of the cable into the Out connector of the first
extension module and screw it tight.
