WLA-L11 User’s Manual

63

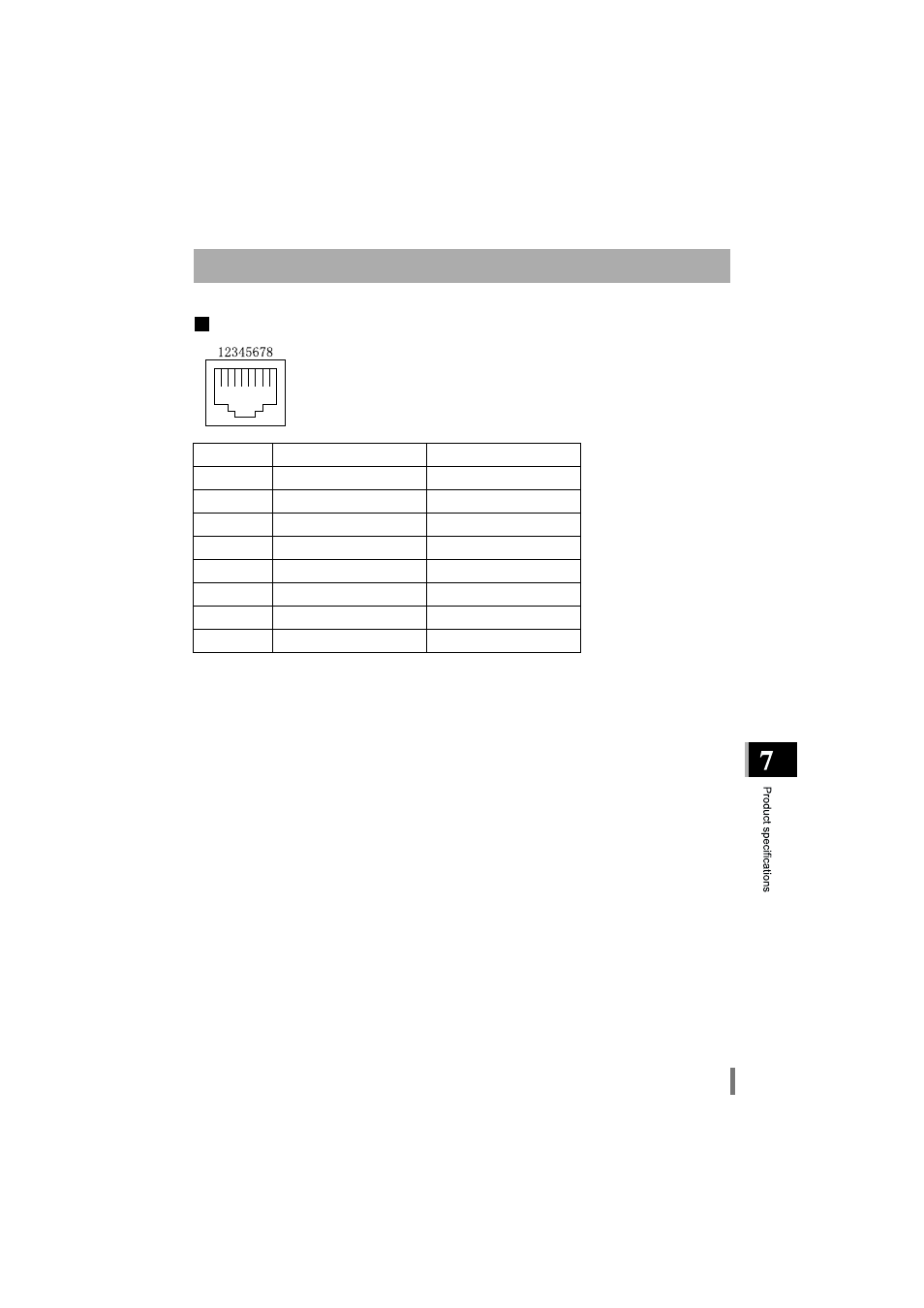

Use the RJ-45 8-pole connector, specified by ISO/IEC8877:1992.

MDI Signal Assignment

LAN Port Connector Specifications

Pin number

MDI signal

Signal function

1

TD+

Send data (+)

2

TD-

Send data (-)

3

RD+

Receive data (+)

4

(Not Use)

Not used

5

(Not Use)

Not used

6

RD-

Receive data (-)

7

(Not Use)

Not used

8

(Not Use)

Not used
