3.15 Low-pressure gradient
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
34 ￭￭￭￭￭￭￭￭
940 Professional IC Vario ONE/LPG (2.940.1150)

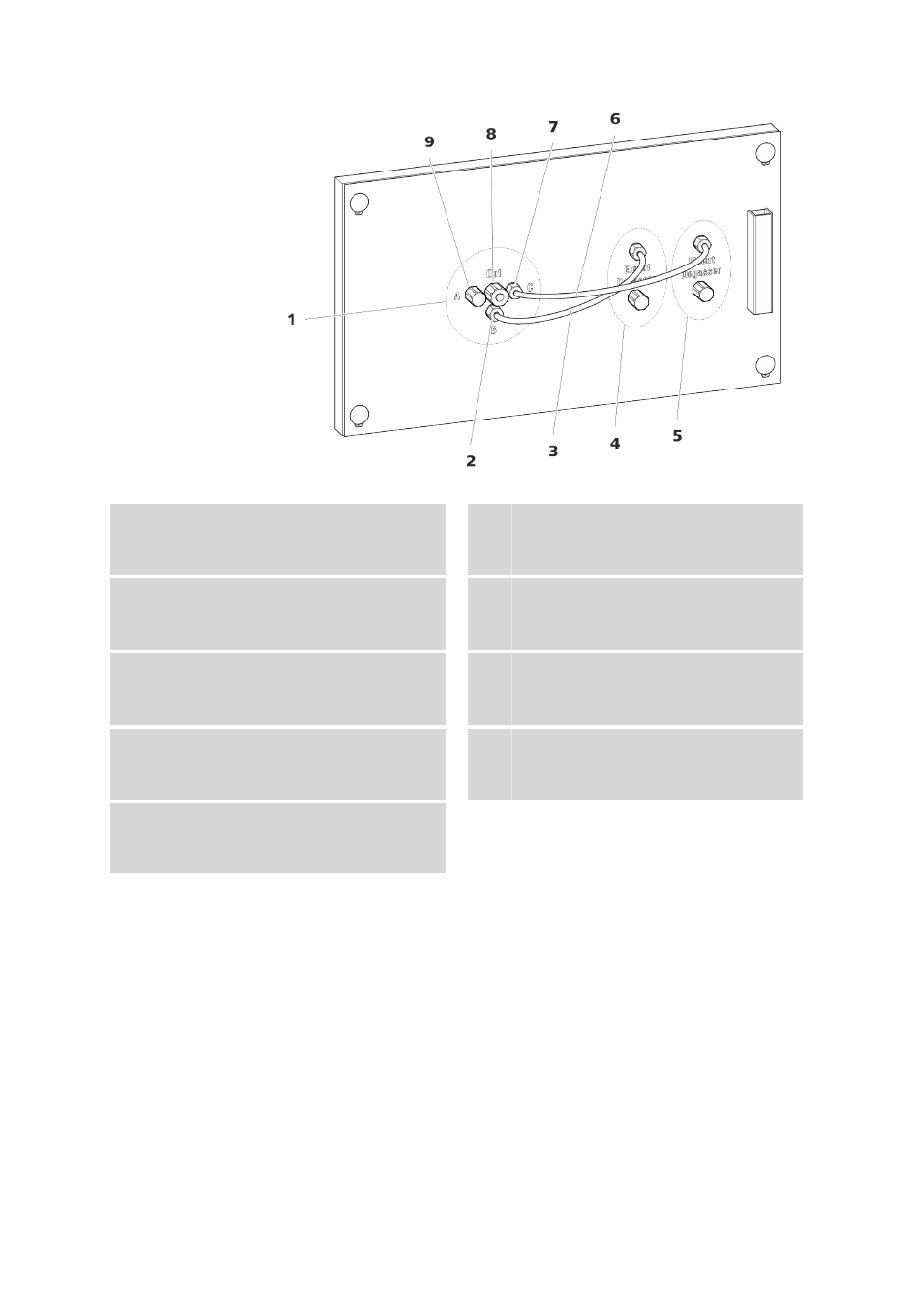

Figure 13 Low-pressure gradient
1 Mixing valve 2 Eluent input B
Connected to the output of the eluent
degasser (13-
4 ).
3 Connection tubing (6.1834.100)
Connects the eluent degasser (13-
4 ) and
input B mixing valve. Pre-installed.
4 Eluent degasser
For eluent B.
5 Eluent degasser
For eluent C. 6 Connection tubing (6.1834.110)
Connects the eluent degasser (13-
5 ) and
input C mixing valve. Pre-installed.
7 Eluent input C
Connected to the output of the eluent
degasser (13-
5 ).
8 Eluent output
Has to be connected to the input of the
high-pressure pump.
9 Eluent input A
Has to be connected to the eluent degasser
in the middle plug-in.
