Push off the white
soft plug, then
make the 8pin
cable thread the
hole on the
bottom board of
M2 arm
Connect to
wireless
video
transmitter
Connect the
8pin cable to
the 8pin port
on the gimbal
before you
mount the
Damping unit
and gimbal

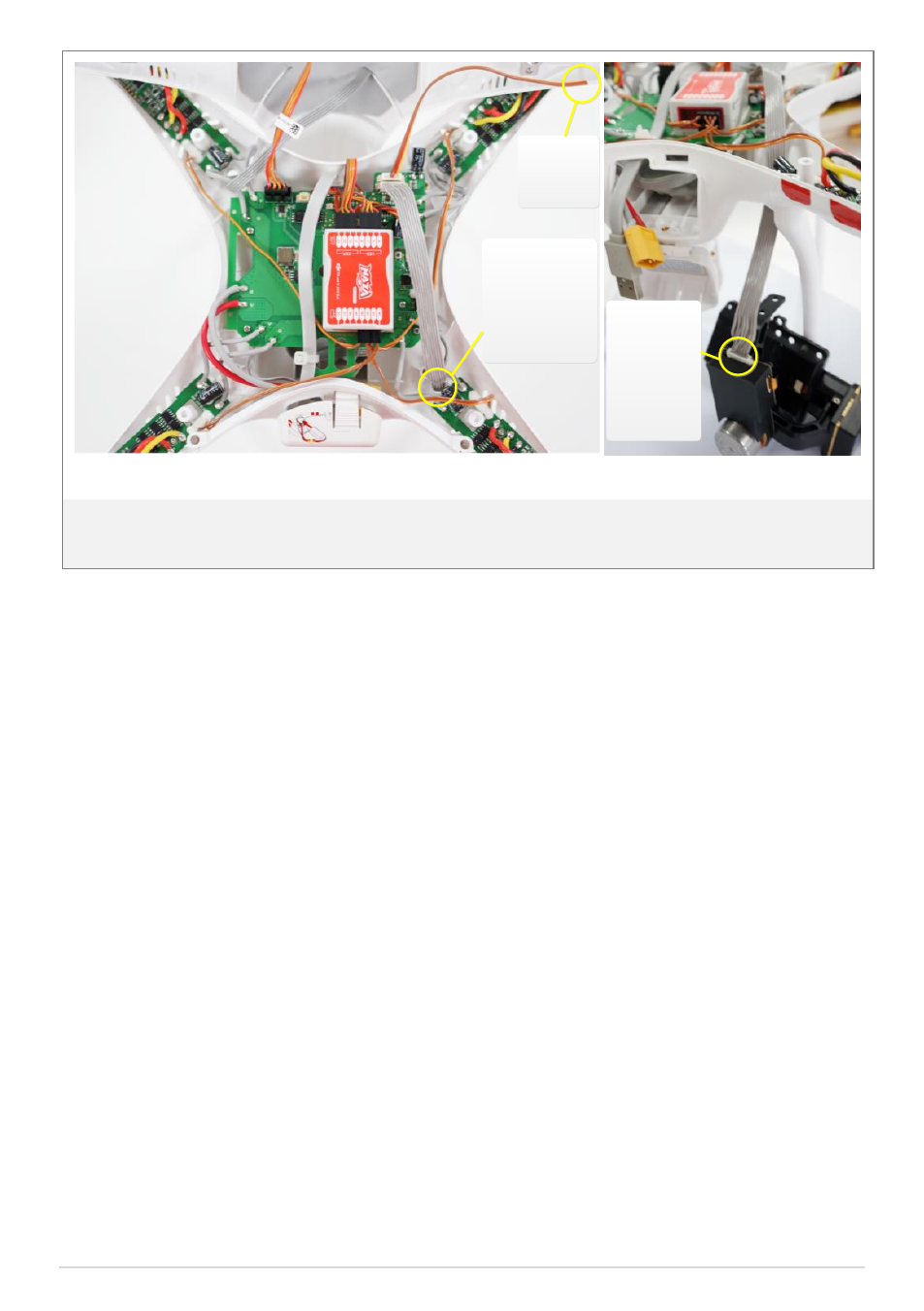

Fig.6 Final connections
6
、Reassemble the covers and propellers, please make sure the cover points to the right nose
direction and the rotating marks on propellers are in accordance with the marks on the cover.
