Appendix
Mount Battery Bracket

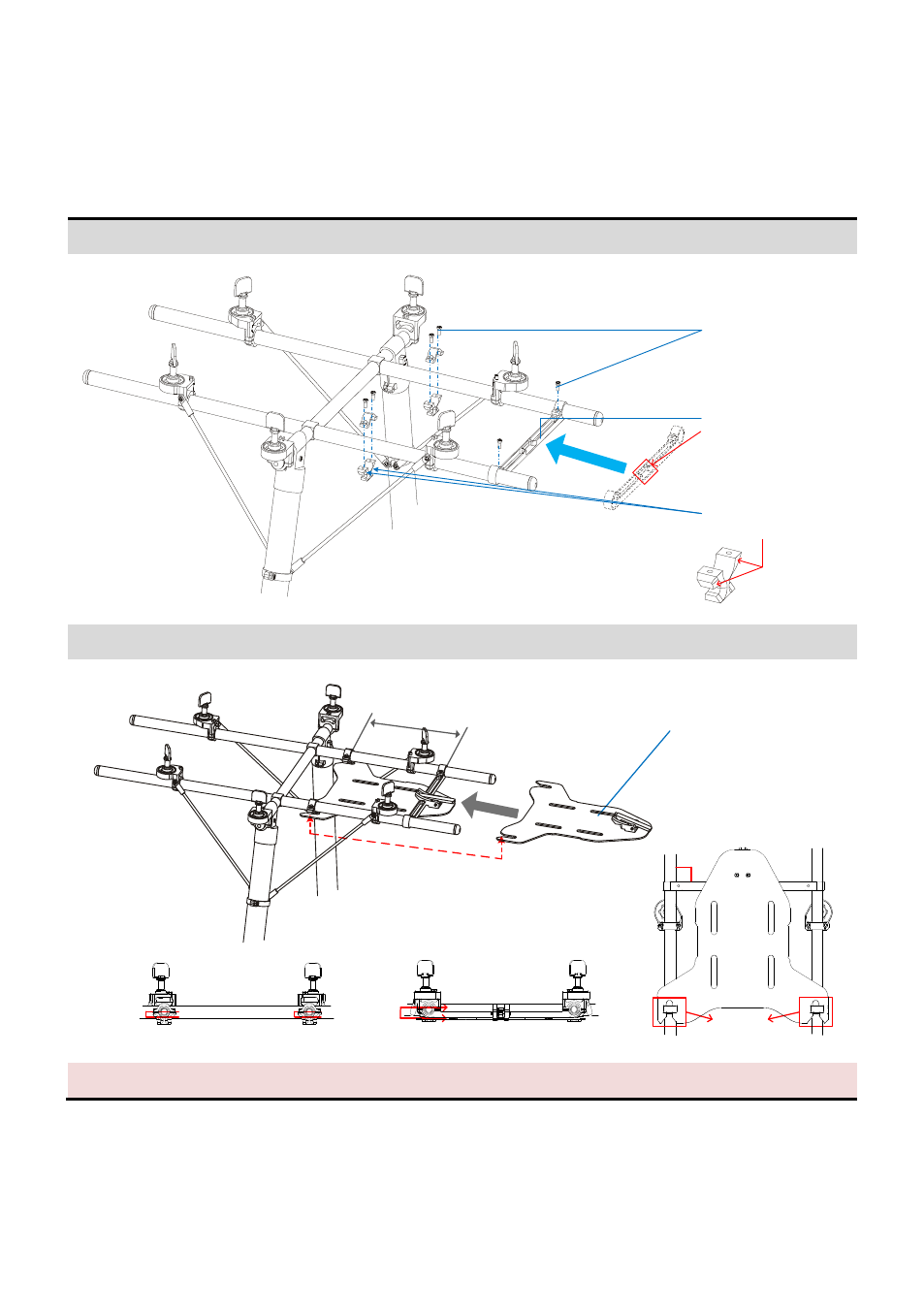

Step1:
Mount the retaining clip and the bracket, fix screws (but not tighten).
Retaining Clips
Chamfer Outwards
M 2.5X5
Bracket
Notch Outwards
Step2:
Place the mounting board and adjust its position, and then tighten all screws.
Ensure to align
Battery Mounting Board
About 131mm
90
o
Parallel
Correct
Parallel
Parallel
