Page 13

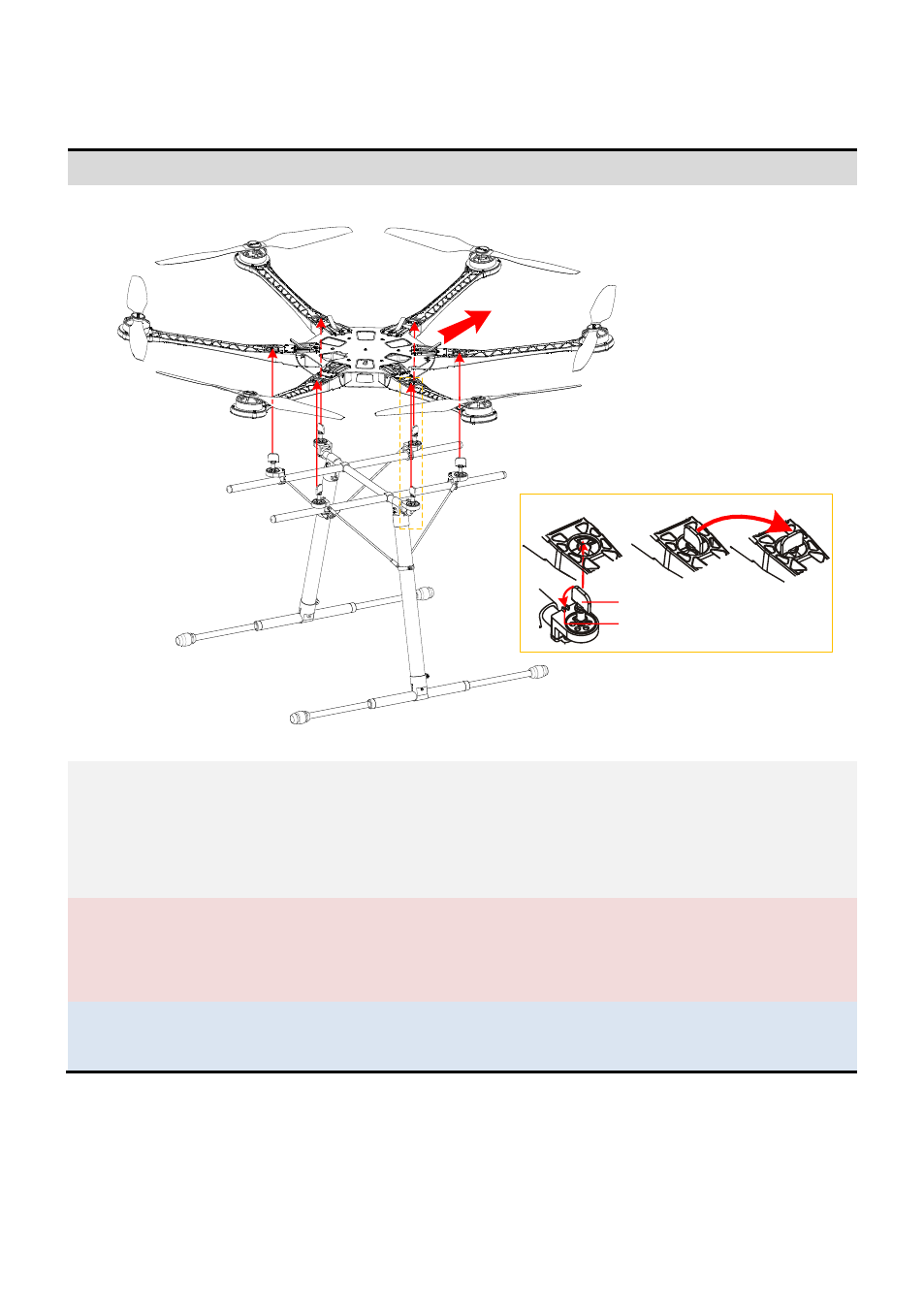

Assembly

(1)

(2)

Align knob to mark

Insert knob into arm

Rotate knob

Airc

raft

ose

①

②

③

④

⑤

⑥

Mark

Knob

Step1: Align all knobs on the H frame to the marks; refer to fig

(1)

Step2: Lie frame and bi-pod horizontally, insert knobs into arms

③

and

⑥

first, and then adjust to

insert others into the arms.

Step3: Rotate the knob to the end, as fig

(2)

shown.

Notices:

 Ensure all knobs on the H frame aligned to the marks, and they would go through the arms

successfully.

Tips:

 It is convenient for you to carry S800 by quick disassembly (Frame, Bi-pod, Frame and Bi-pod).
