9

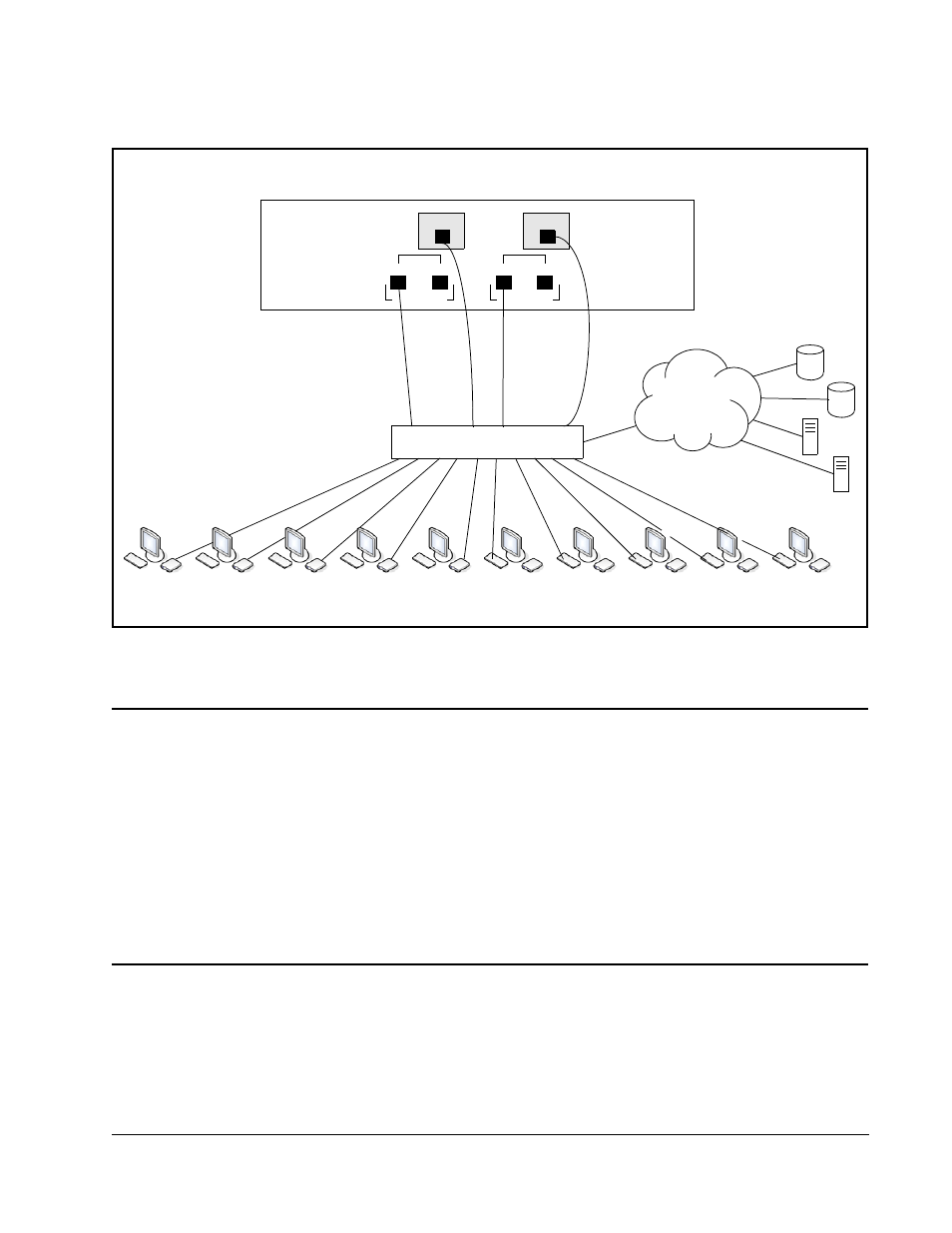

The following figure shows a typical cabling configuration to connect I9420 I/Ports and I9440
I/Ports to an A3100 chassis.
Figure 4. A3100 Chassis Cabling Diagram
Unpacking the I/Port
When unpacking the I/Port, you will find one of each of the following items:
•
I/Port unit
•
I/Port power supply and power cord (optional for some regions)
•
Optional mouse and keyboard (may be shipped separately)
•
Mounting bracket and mounting screws are included with I9420
Setting up the I/Port
To set up your I/Port, do the following:
1. Place the I/Port on a desktop or other solid surface.
2. Make connections as appropriate for your I/Port, as shown in one of the following figures:
PCoIP
PRI
SEC
. . . .
BLADE 5
PCoIP
PRI
SEC
BLADE 6
Network Switch
. . . .
A3100 Chassis with 10 A1410 Blades
Thin Clients and Peripherals
External Data Sources
and Entities
Data
