Cable Configuration
KVM cabling
The picture below shows the default cabling configuration for ClientCube 2 with a KVM switch. For
simplicity, cabling is shown between the KVM and only one zero client. The same cabling
configuration is used for the remaining zero clients.

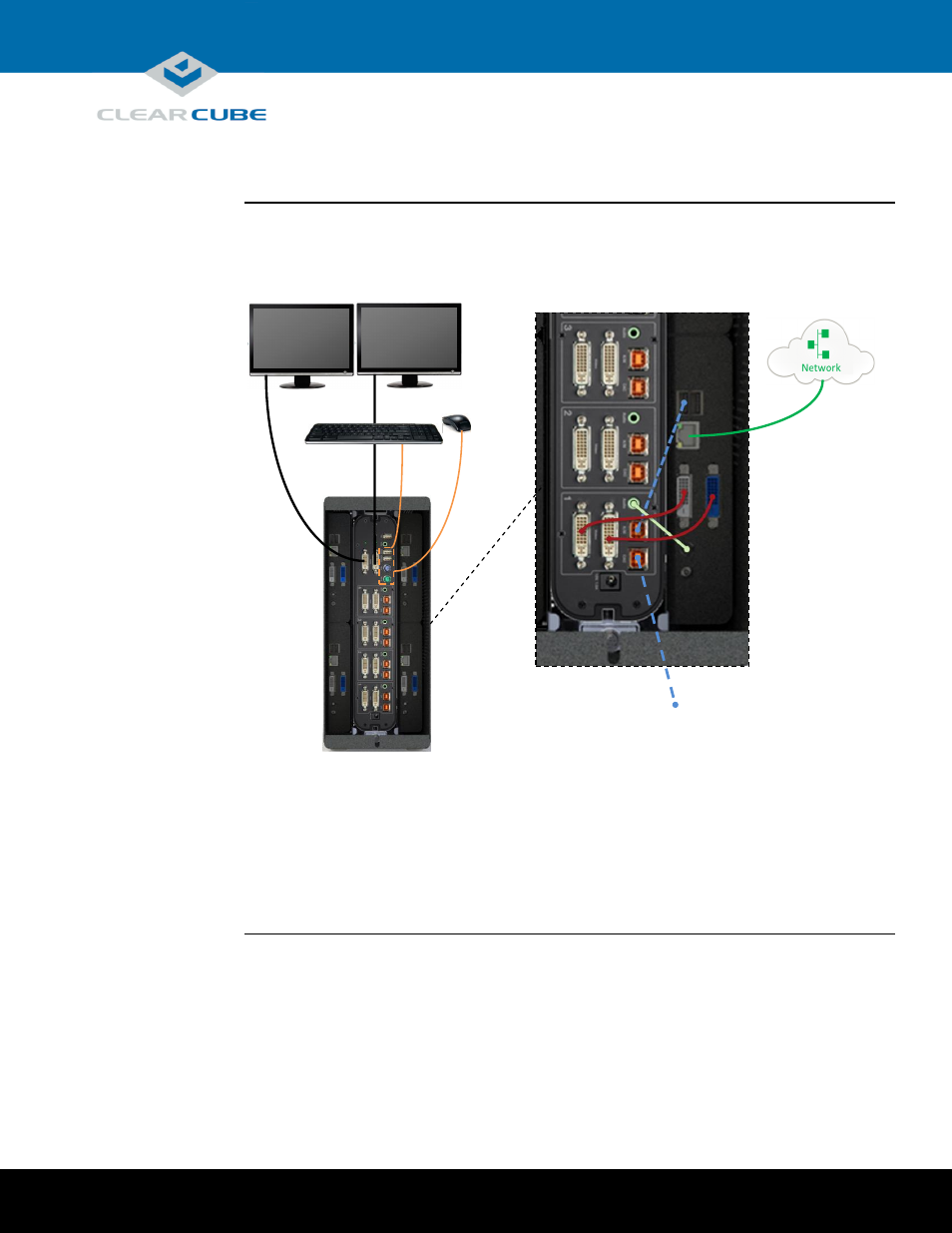

Figure 2. ClientCube 2 with KVM, rear view and default cabling configuration (for simplicity,
cabling for only one zero client is shown)
Optional External CAC Reader
KVM Switch in ClientCube 2
