Installation,
Continued
Mount the
ClientCube 2 The steps below show how to mount a ClientCube 2.
Step Action
1 The ClientCube 2 slides onto the mounting bracket’s square tube. Lift the
ClientCube 2 and align the square hole on the back of the ClientCube 2 with
the bracket’s square tube. Push the ClientCube 2 onto the tube until it stops.

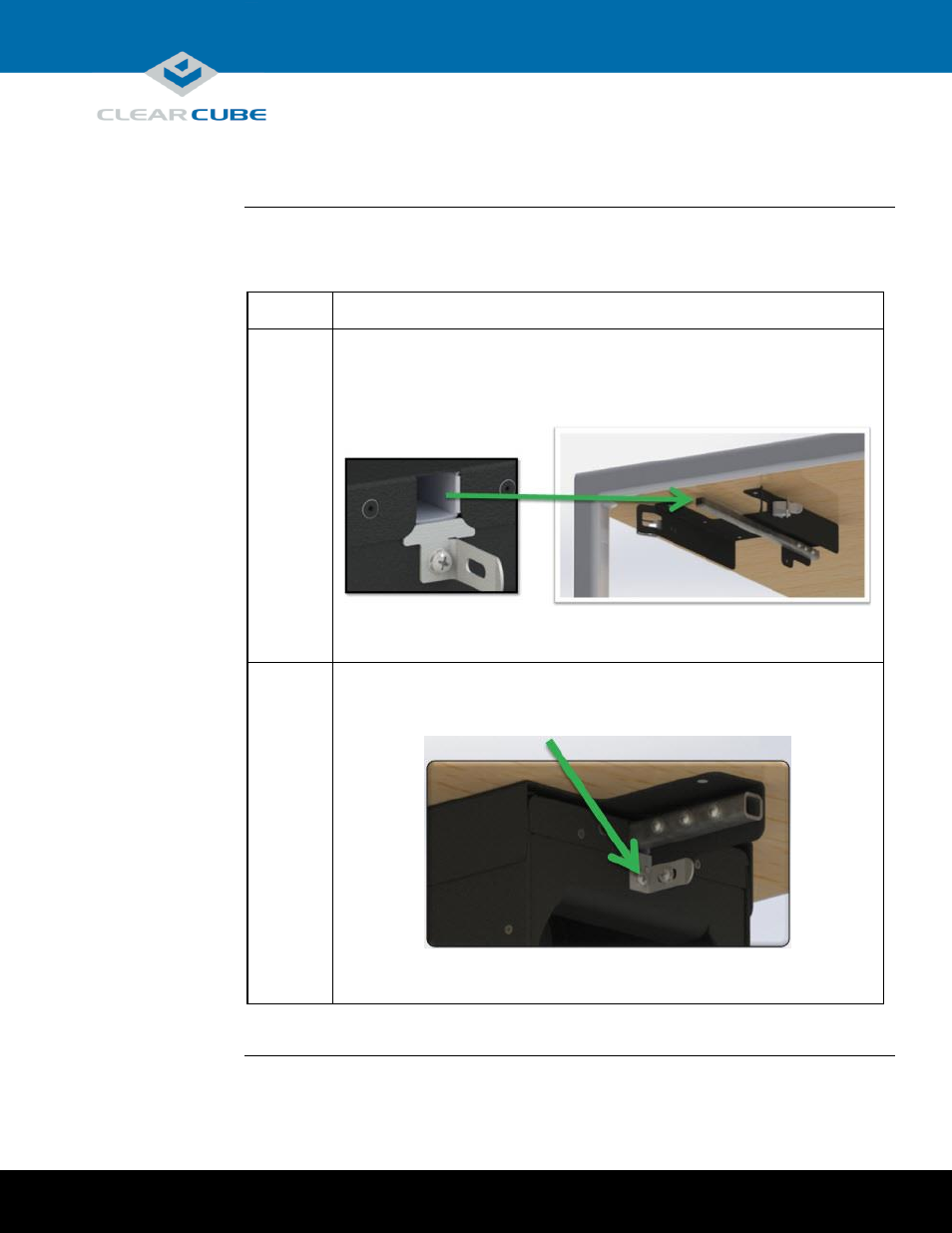

Figure 4. Sliding the ClientCube 2 onto the mounting bracket square tube
2 From the rear of the mounting bracket, screw the included machine screw
into the ClientCube 2.
Figure 5. Secure the bracket to the ClientCube 2 with the included screw
Continued on next page
Rear of ClientCube 2
