Bully Dog 53252 Rapid Flow Induction (RFI) Cold Air Intake - Manual (Page 11)

10

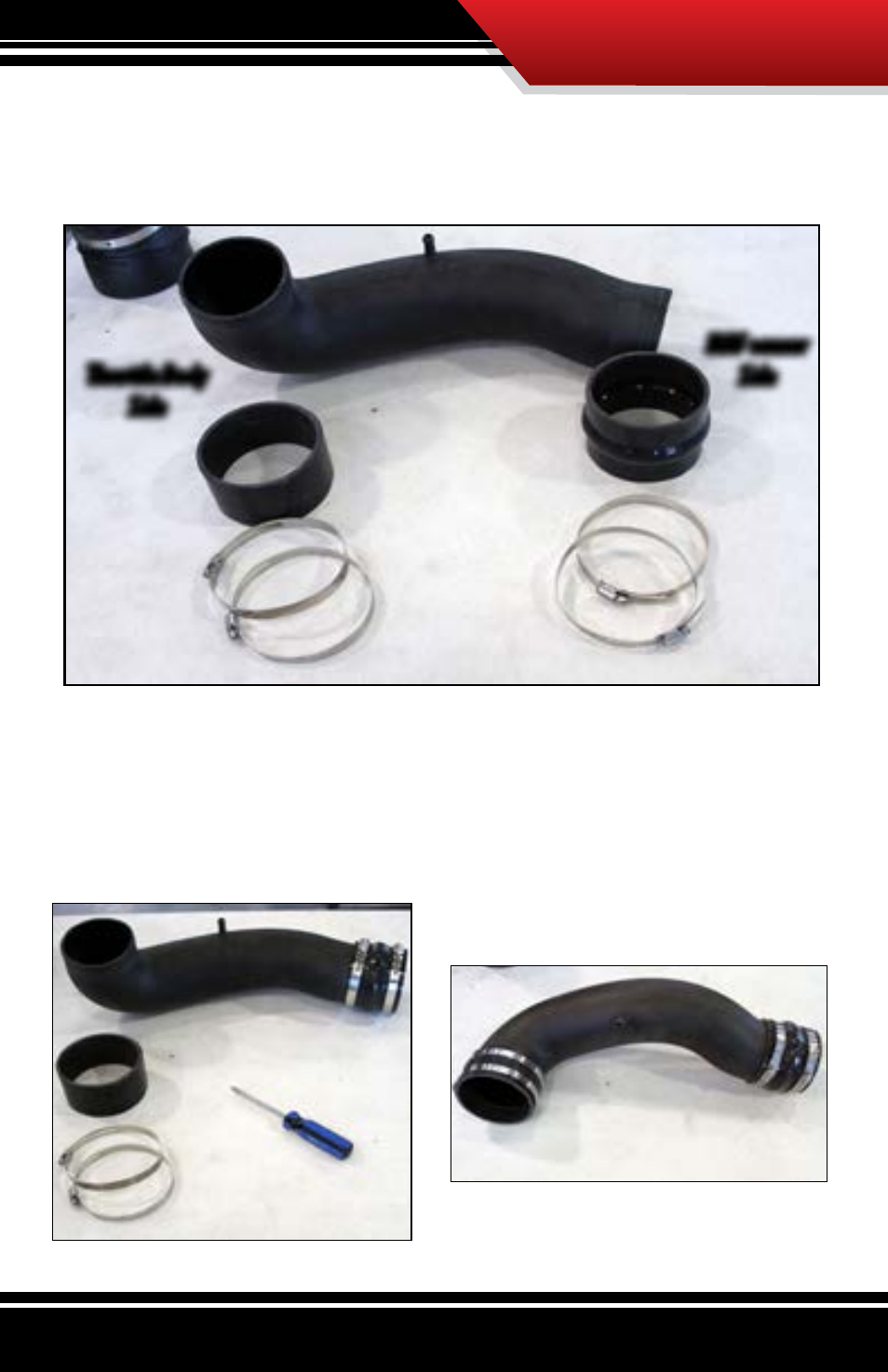

2. Now gather the 4 large band clamps, the 2 silicone couplers, and the stage 2 RFI tube.
Preassembling these parts will make installing these parts on the vehicle much easier.
When installing the couplers, place the coupler with the hump on the MAF sensor side of
the stage 2 tube and the strait coupler on the throttle body side of the stage 2 intake tube.
Putt both couplers onto the stage 2 intake tube and loosely tighten the band clamps over
the coupler, to the point that neither the coupler nor the clamp will fall off while installing
this assembly on the vehicle.
RFI Prep
MAF sensor
Side Throttle Body
Side
