2

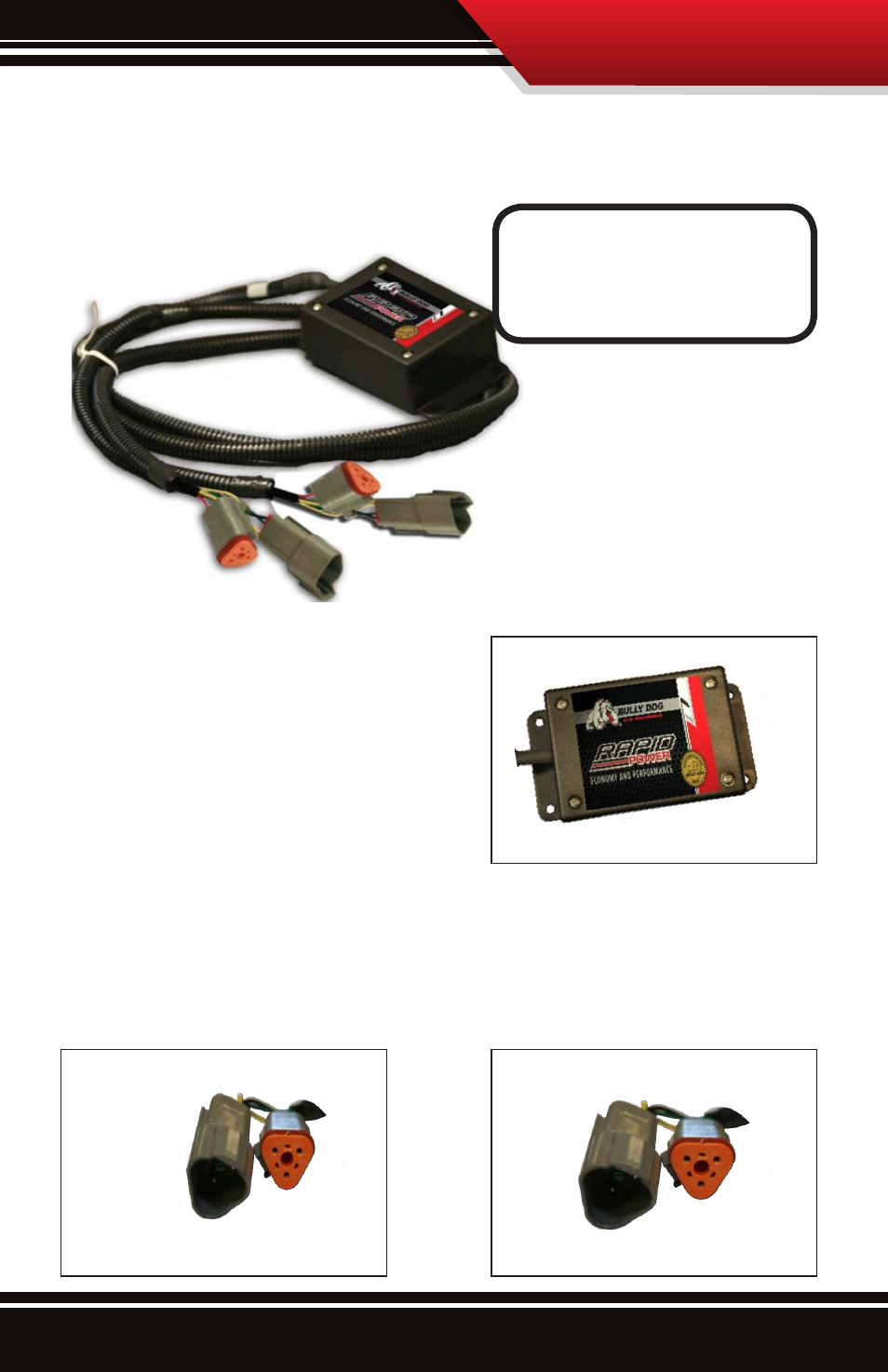

Parts description:
The product is made up of two different parts, the module box,
and cable.
ThE MODUlE bOx: The module box contains the electronics
that will help the engine to produce more horsepower. It is
very important that this module is mounted away from all
moving or hot parts. The box should be placed in an area
protected from dirt and moisture.
ThE CAblE: This cable allows the Rapid Power Module
to connect to the engine. At the end of the wiring harness are
four plugs, two male and two female plugs. These plugs will
connect directly to the engine and wiring harness requiring no
modification of the engine. The shortest cable is the MAP sen-
sor and the longest one is the ICP Sensor plug
inTrOduCTiOn
Male Plug
Male Plug
Female Plug Female Plug
Contents:
1. Rapid Power Module
with Wiring Harness
2. Zip Ties
ThE MODUlE bOx
INjECTION CONTROl pREssURE (ICp)
sENsOR plUgs
MAp sENsOR plUgs
