BV-2322R: Full HD Receiver

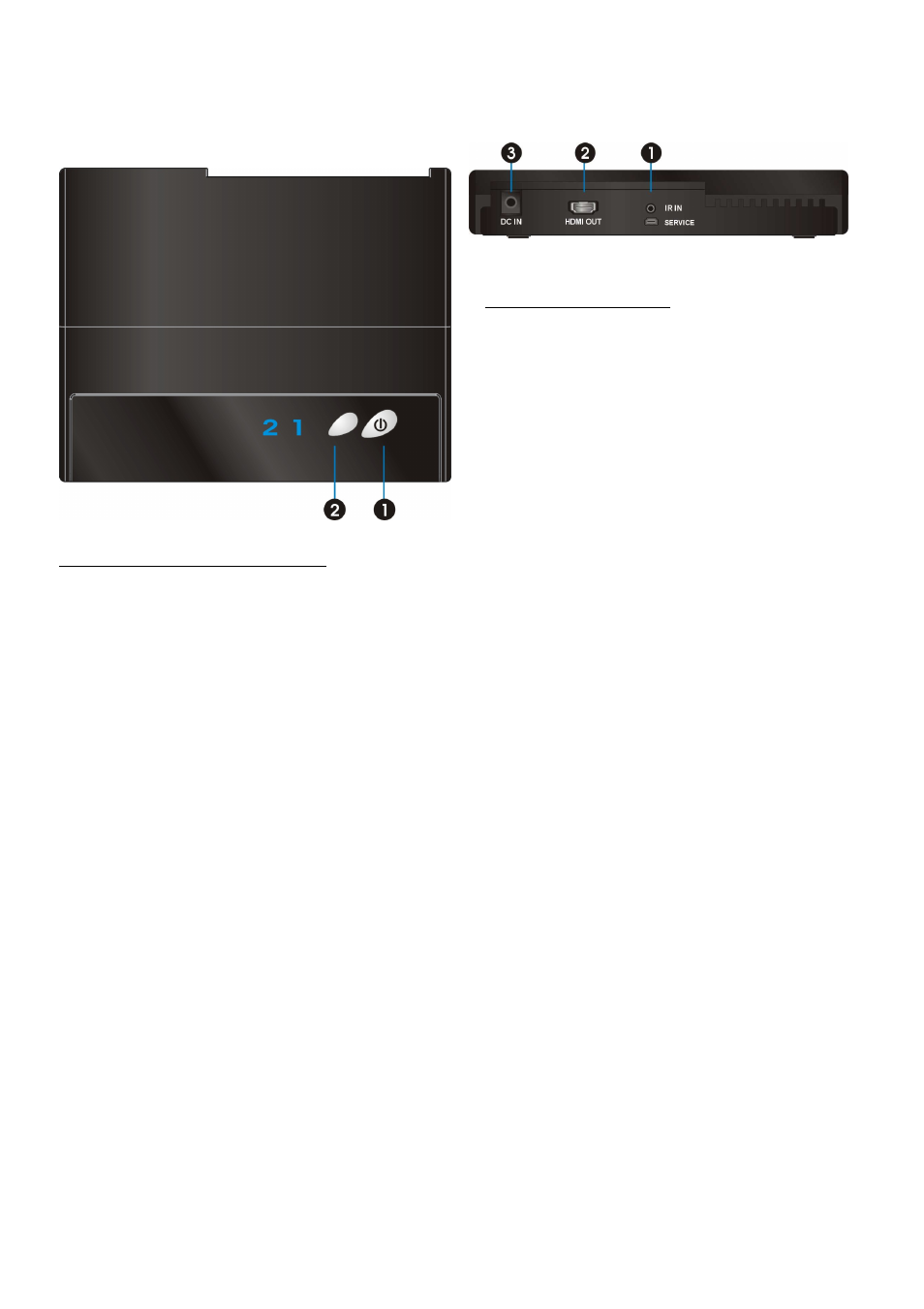

Front Panel Buttons and LEDs
Power Button with LED indicator
Press to turn the receiver on and off. The
indicator in the power button lights up in blue
when the power is on, and turns red in
standby mode.
Source Selection Button
Press this button to change the frequency of IR
blaster.
Note:
Make sure you have connected the BV-2322R
correctly to your HDTV set with an HDMI cable,
and have selected the correct HDMI input on
your TV.
If you have more than one pair of BV-2322,
each transmitter and receiver should be at
least 6.5 feet away from one another.
If both the transmitter and the receiver exist in
the same room, the suggested the minimum
distance between the two is 6.5 feet.
Main Unit Back Panel
IR Sensor Extender Jack
Plug the IR Sensor Extender cable into the IR IN
jack at the rear panel of the receiver.
Generally,
sensors with cable are placed near your HDTV
set so that you can easily operate and control
your AV equipment connected to BV-2322T by
pointing the remote control to the TV instead
of the AV equipment.
HDMI OUT
For connecting the HDTV set via an HDMI
cable.
DC IN
For connecting the BV-2322R power adapter.
