12
3. Installation
Step1: Setup the BV-2322T Transmitter with the A/V Source and the 1
st
HDTV

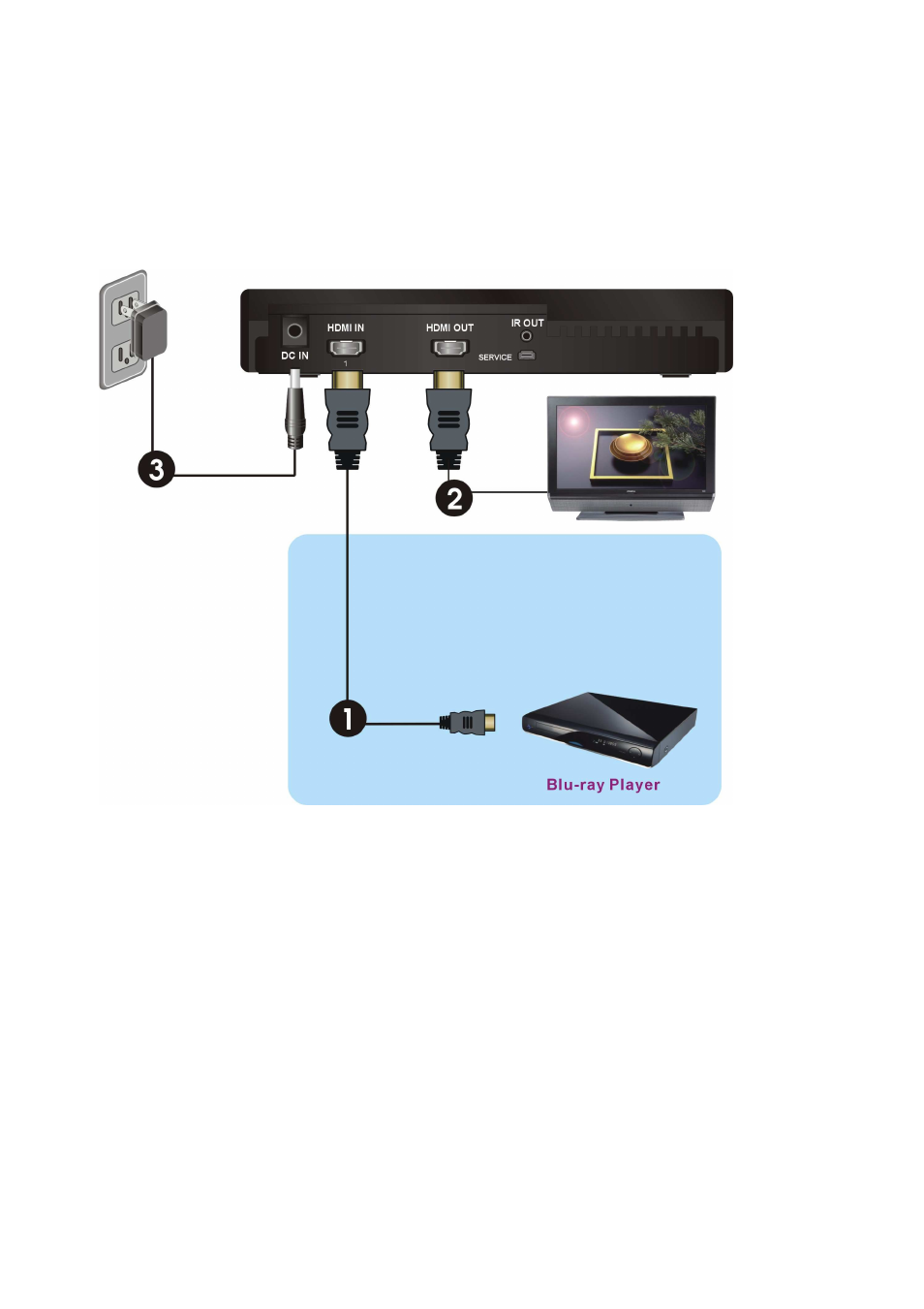

Connect One High-Definition Audio/Video Source and an HDTV to the BV-2322T:
(1) Connect the BV-2322T’s
(transmitter)“HDMI IN” to the
High-Definition AV sources’ “HDMI OUT”
with an HDMI cable (included). The
BV-2322T has a HDMI inputs for the latest
High-Definition device, like the PS3 and
Blu-ray player.
(2)
Connect the BV-2322T’s (transmitter)
“HDMI OUT” to the HDTV set’s “HDMI IN”
port with an HDMI cable for the
loop-through connection.
(3)
Connect the supplied power adapter to the
DC IN jack of the BV-2322T and a wall
socket. The LED indicator in the POWER
button lights up in solid purple when the
BV-2322T is connected to the power mains.
