5. Cables and accessories for the D320 Lite Digitizer
5. CABLES AND ACCESSORIES FOR THE
D320 LITE DIGITIZER
5.1 Cables and accessories
List with available cables and accessories

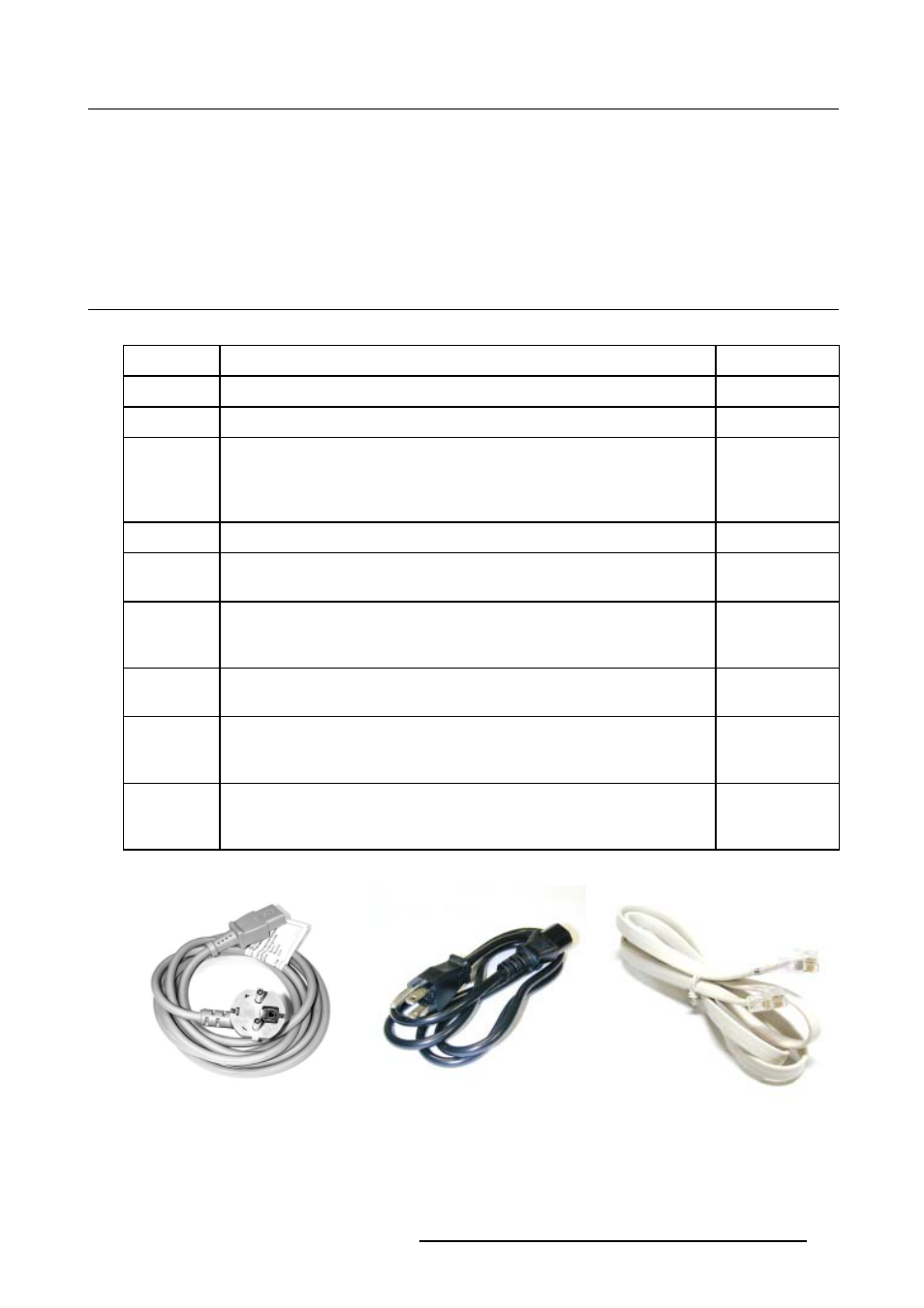

Article No. Description Image
R326103 Power cable with CEE7 plug. image 5-1
R3261115 Power cable with NEMA 5–15 plug. image 5-2
B5580491 Data cable with RJ12 connectors for RS232 connection between
local control PC and COM1 RS232 input port of the master Digitizer.
Also used to connect the COM2 or COM3 port with the COM1 port
of the following Digitizer. image 5-3
Z3498421 RJ12–SUBD adapter. image 5-4
R9827560 Data cable with SUBD connectors for RS232 connection between
local control PC and COM1 RS232 input port of the master Digitizer. image 5-5
Z3499209 One meter data cable with MDR connectors. Used to make a
connection between the LOOP OUT connector of the previous
Digitizer and the LOOP IN connector of the next Digitizer. image 5-6
R9851210 Five meter data cable with DVI connectors. Used to connect the
LED-WALL OUTPUT with an ILite display. image 5-7
R9851216 Five meter data cable with one DVI connector and one waterproof
MDR connector. Used to connect the LED-WALL OUTPUT with an
DLite display. image 5-8
R9851219 One meter data cable with one DVI connector and one MDR
connector. Used to connect the LED-WALL OUTPUT with a Fiberlink
Transmitter. image 5-9
Image 5-1 Image 5-2 Image 5-3
