4. Input modules
4. INPUT MODULES
Overview
•
•
•
•
•
•
•
4.1
DVI input module
Technical info:
•
Computer generated graphical source.
•
DVI data in.
•
162 MHz pixel clock.
•
Resolution from VGA to UXGA/60 Hz.
•
DVI compliant.
•
DVI loop through.
•
Amber LED (upper LED on the front side) will be lit indicating module start up.
•
When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the
system acknowledges the module.
D320 DVI
IN
OUT

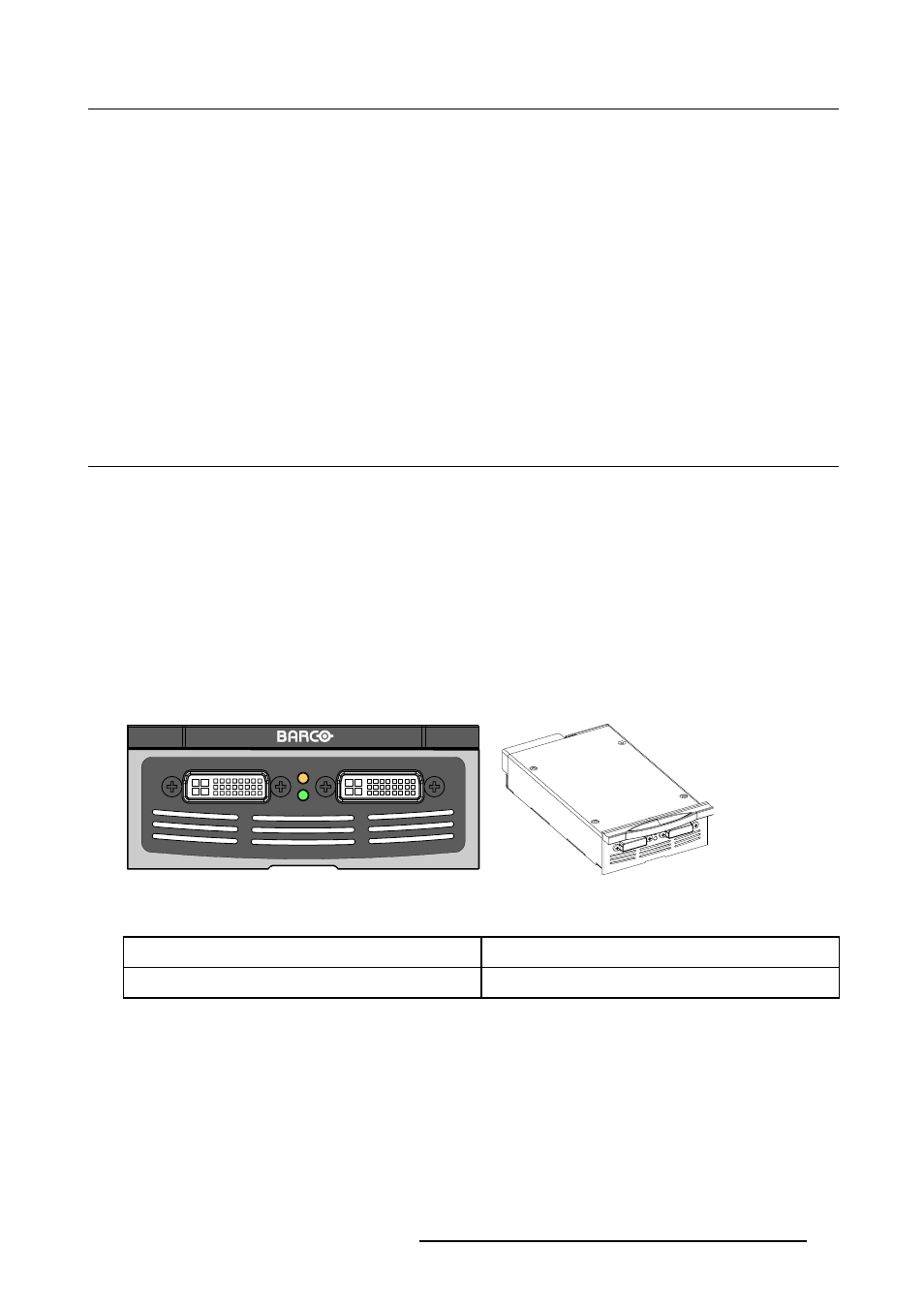

Image 4-1
Image 4-2
Order info:
Article No.
Description
R9850960
D320 Lite Digitizer DVI input module
R5976471 D320 LITE DIGITIZER 15/11/2006
13
