4. Input modules
4.4
CVBS / S-VID input module
Technical info:
•
Video (BNC)
- CVBS : 1Vpp ±3dB (0,7V Video +0,3V Sync) 75 Ohm termination.
- BNC loop through connector.
•
S-Video (4 pins DIN)
- Y : 1Vpp ±3dB (0,7V Video +0,3V Sync) 75 Ohm termination.
- U/V : 0,7Vpp ±3dB 100% color base, 75 Ohm termination.
- Chroma : Multi-Standard (PAL / SECAM / NTSC).
- 4 pins DIN loop through connector.
•
Amber LED (upper LED on the front side) will be lit indicating recognition of film, either continuous or
intermittent film detection.
•
When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the
system acknowledges the module.
•
Supports MacroVision™.

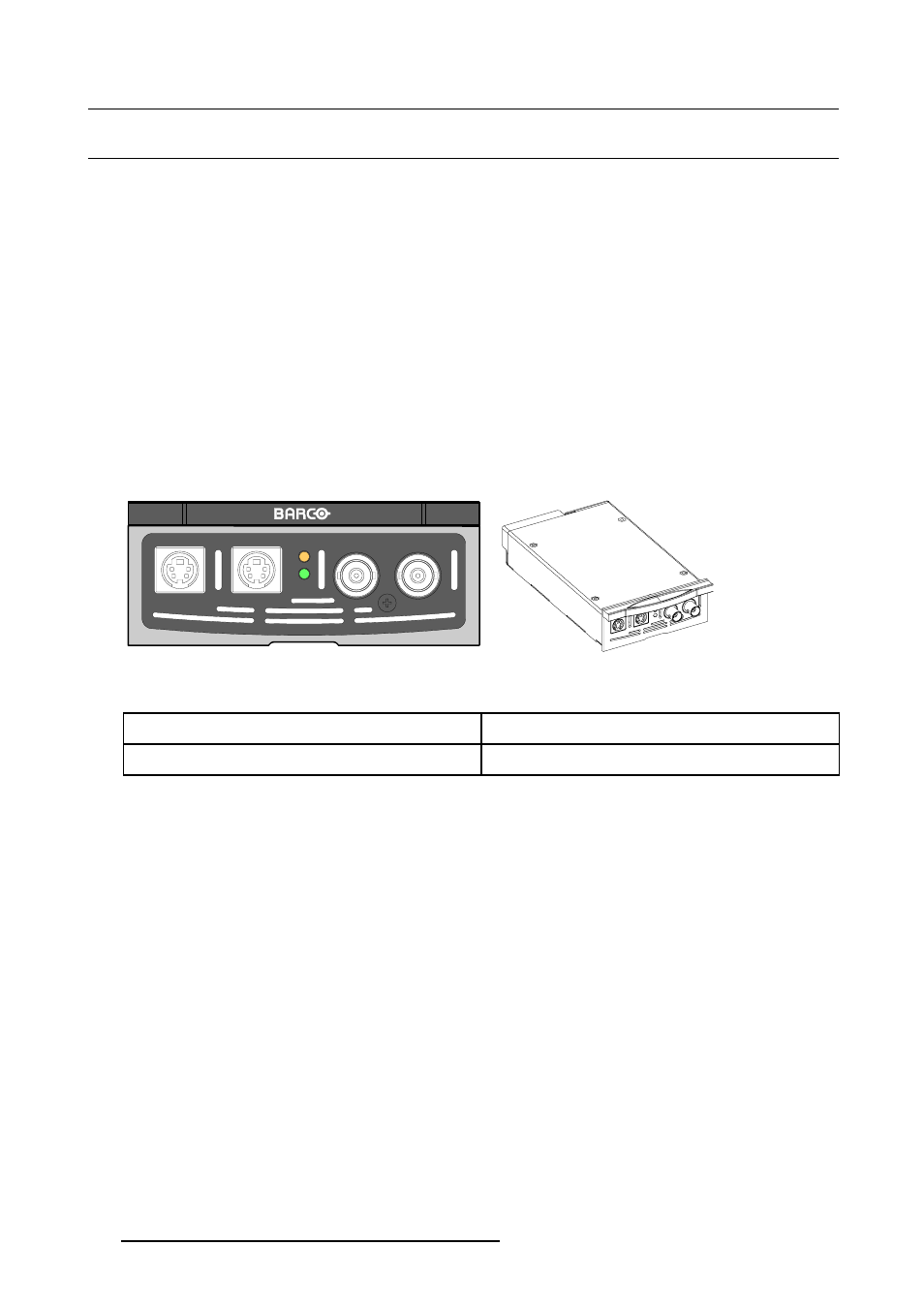

D320 CVBS/S-VID
IN
OUT
IN
OUT
Image 4-7
Image 4-8
Order info:
Article No.
Description
R9850920
D320 Lite Digitizer CVBS / S-VID input module
16
R5976471 D320 LITE DIGITIZER 15/11/2006
