4. Input modules
4.2
SDI input module
Technical info:
•
SDI data in.
•
SDI loop through.
•
270Mbit/s transmission (SMPTE 259M-C).
•
525/625 interlaced.
•
Coax (75 Ohm).
•
Amber LED (upper LED on the front side) will be lit indicating recognition of film, either continuous or
intermittent film detection.
•
When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the
system acknowledges the module.
D320 SDI
IN
OUT

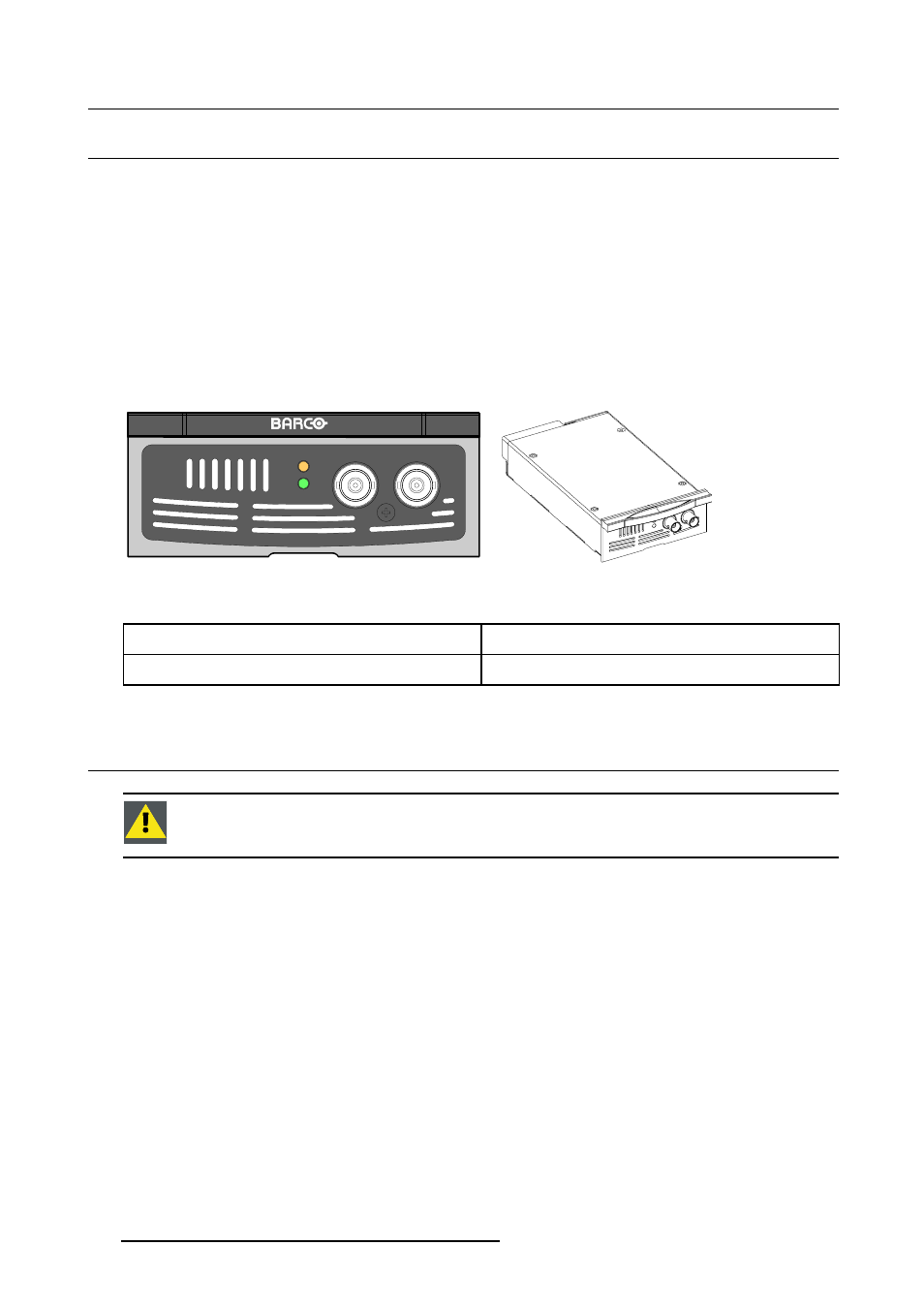

Image 4-3
Image 4-4
Order info:
Article No.
Description
R9850970
D320 Lite Digitizer SDI input module
4.3
HDSDI input module
C
AUTION
:
Maximum two HDSDI input modules may be inserted in one D320 Lite Digi-
tizer.
14
R5976471 D320 LITE DIGITIZER 15/11/2006
