DMX Channel Values In-Depth (Continued)
Reduced
Mode
Standard
Mode
Channel
Value
What it does
8 11 000 <-> 255 Focus (0% <--> 100%)
9 12 000 <-> 255 Dimmer (0% <--> 100%)
10 13
000 <-> 010
011 <-> 110
011 <-> 115
116 <-> 165
166 <-> 170
171 <-> 220
221 <-> 230
231 <-> 245
246 <-> 255
Strobe
Closed
Strobe (fast <-> slow)
Open
Ramp Up (slow <-> fast)
Open
Ramp Down (slow <-> fast)
Open
Random strobe effect
Open
11 14
000 <-> 019
140 <-> 149
150 <-> 159
160 <-> 169
170 <-> 179
180 <-> 189
200 <-> 219
220 <-> 255
Built-in Programs (Note: There is a 3-second delay upon value changes)
No function
Auto Program 1
Auto Program 2
Auto Program 3
No function
Sound Active Mode
System Reset
No function
Gobo Replacement

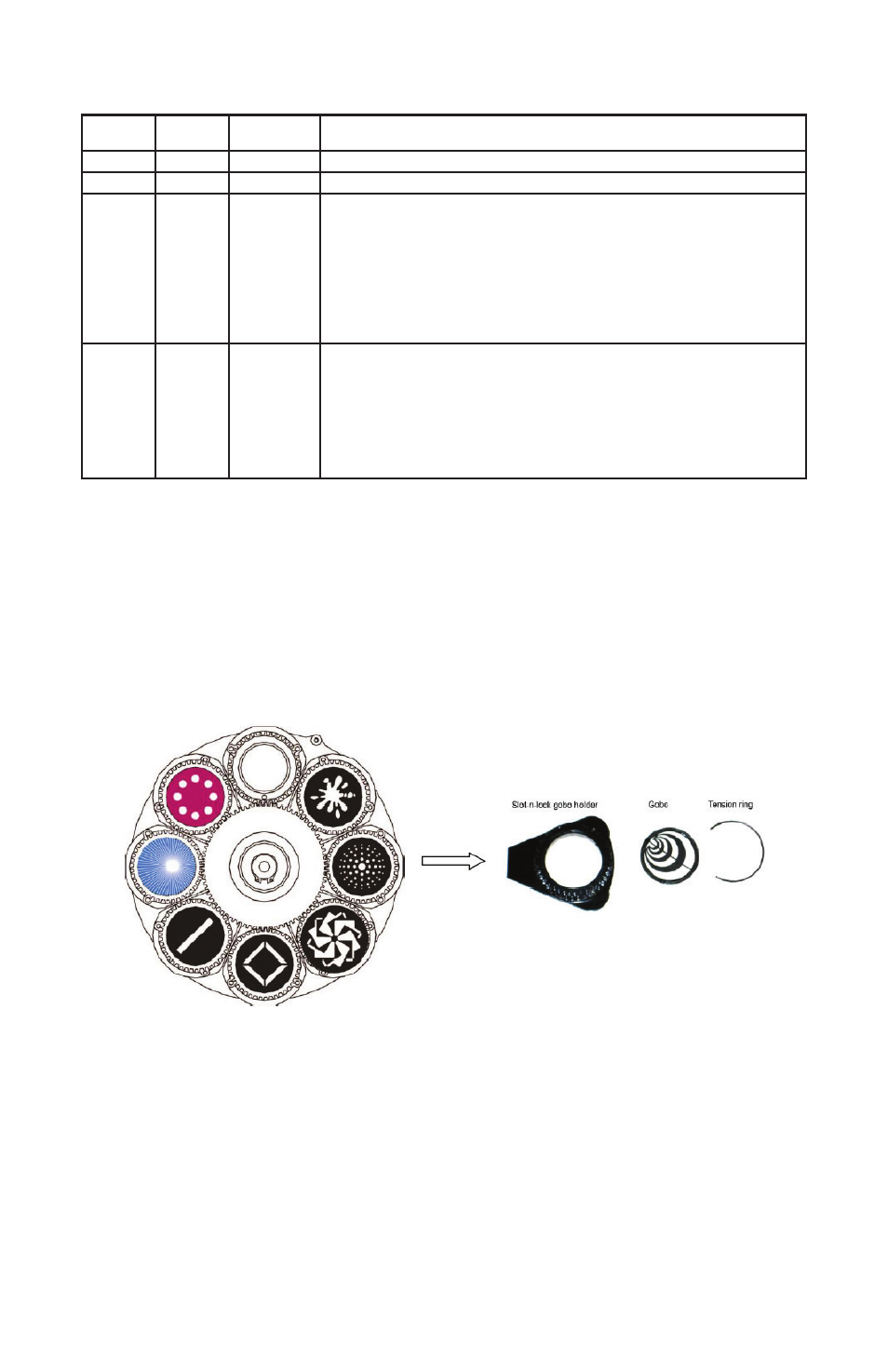

1) Remove the gobo cover by removing the four screws on the top of the fixture head.
2) Remove the slot-n-lock gobo from the gobo wheel by lifting up slightly and sliding it out.
3) Using a small tool, pry the tension ring from the gobo holder.
4) Remove the old gobo, insert the new gobo, and replace in the reverse steps of removal.
