DMX Mode - Fixture ID / DMX Channel Selection
The menu has a unique feature which allows you to assign any or all of you Blade™ QFX
fixtures a “Fixture ID” number. This allows quick access to evenly spaced starting DMX
address that correspond to the number of channels needed in 13/25 channel modes.
13 CHANNEL MODE - INITIAL FIXTURE ID / DMX STARTING ADDRESS:
Fixture ID DMX Address Fixture ID DMX Address
01 001 11 131
02 014 12 144
03 027 13 157
04 040 14 170
05 053 15 183
06 066 16 196
07 079 17 209
08 092 18 222
09 105 19 235
10 118
25 CHANNEL MODE - INITIAL FIXTURE ID / DMX STARTING ADDRESS:
Fixture ID DMX Address Fixture ID DMX Address
01 001 06 126
02 026 07 151
03 051 08 176
04 076 09 201
05 101 10 226
Note: These are only the initial/default fixture ID to DMX address settings. Changing
a DMX address setting within a fixture ID will automatically change all combinations
thereafter, per mode. For example: In 25 channel mode, if you change fixture ID 01 to
DMX starting address 002... then fixture ID 02 will automatically move up one number and
now be DMX starting address 027, fixture ID 03 will be DMX starting address 052, and so
on all the way down the line.

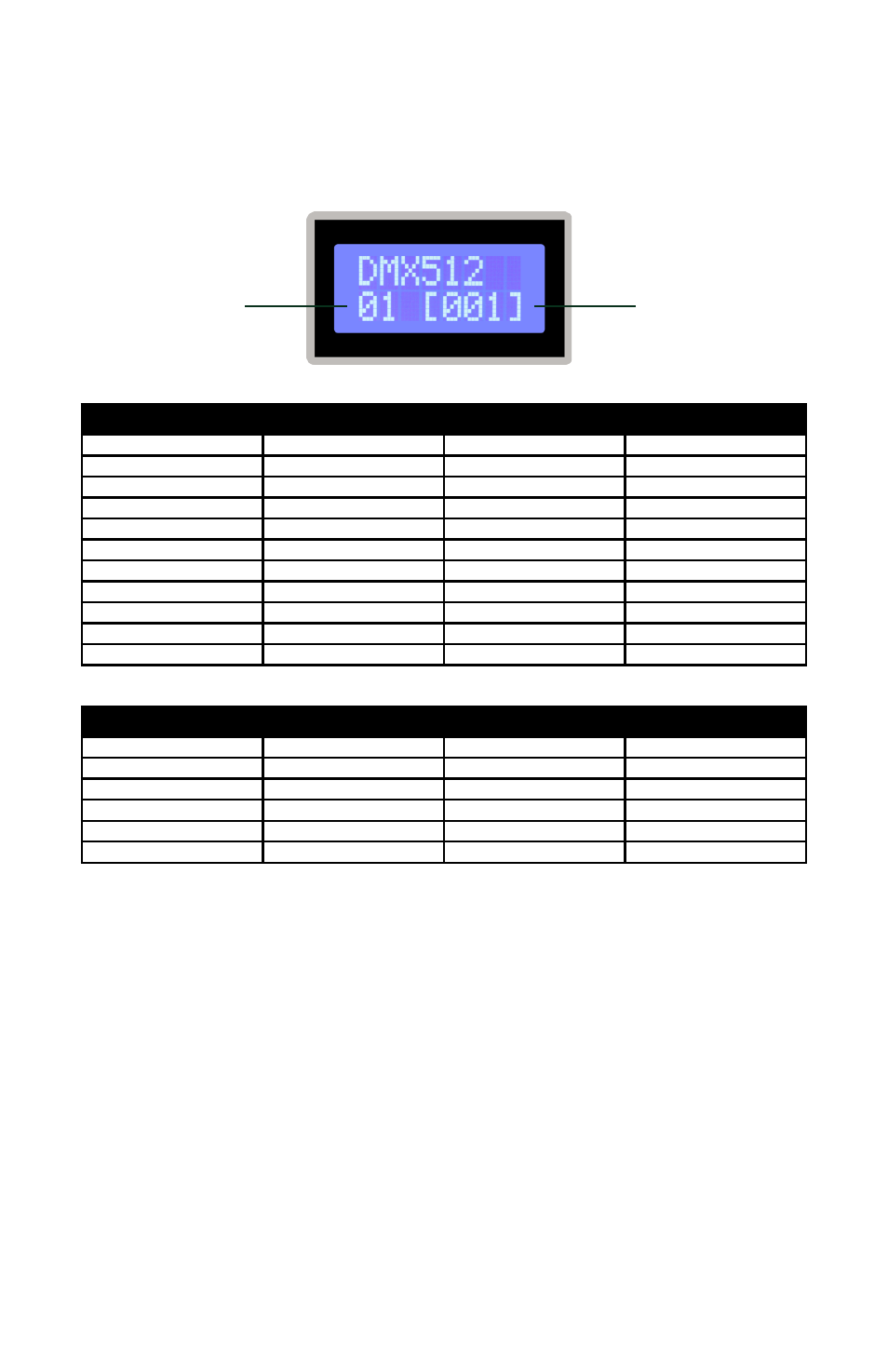

Fixture ID # DMX Channel
