Bird ® Signal Booster II Series
61-89A-50-05489-G1
Bird ® Technologies Group combines the industry leading brands of both Bird Electronic and TX RX Systems and is a global, innovative supplier of RF products, sys-
tems, services and educational solutions. Bird ® Technologies Group reserved the right to modify specifications or discontinue any product without notice.
Y OU’RE HEARD, LOUD AND CLEAR.
30303 Aurora Rd. :: Solon, OH 44139 :: 866.695.4569 :: www.bird-technologies.com

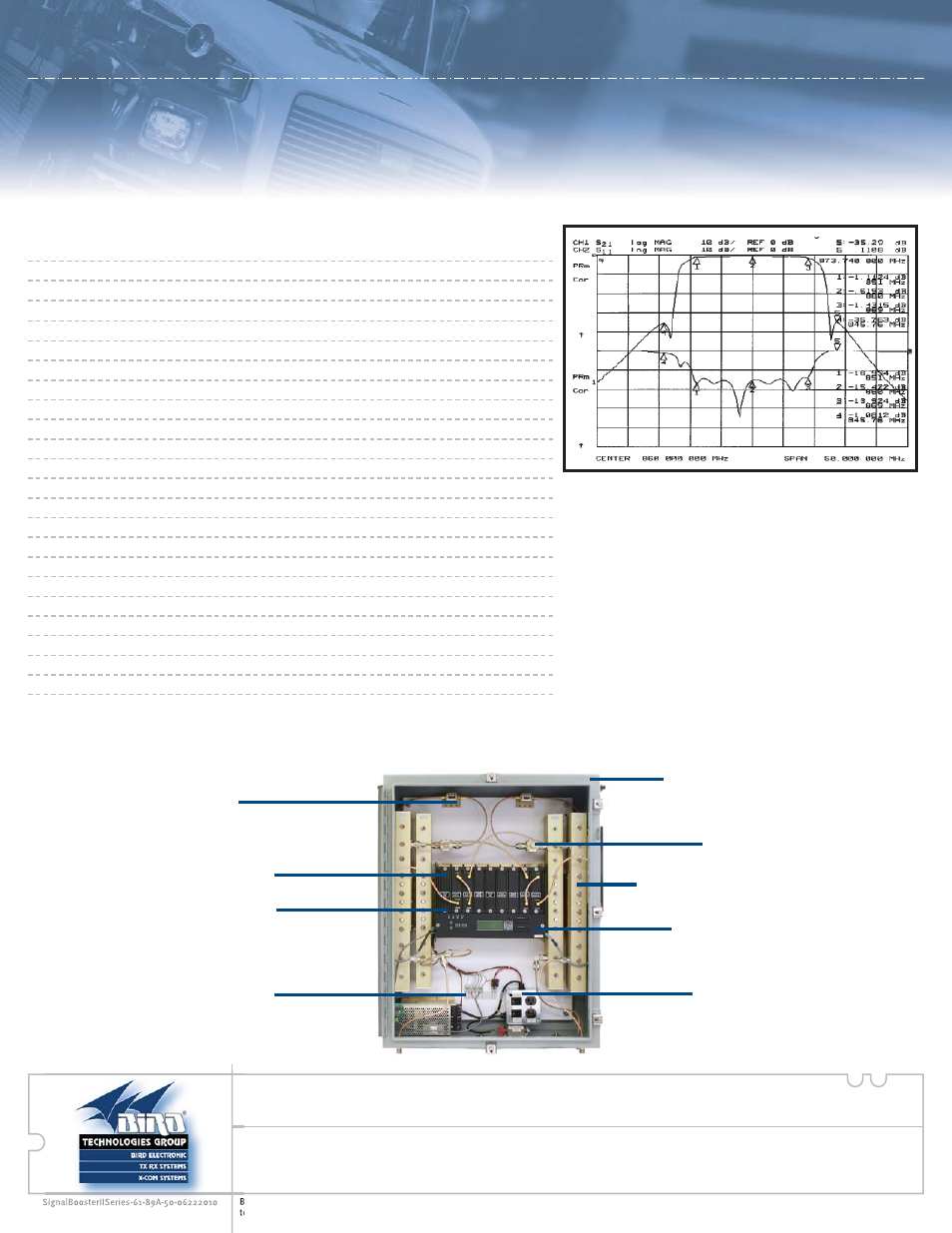

S PECIFICATIONS, E LECTRICAL
Frequency Range LF 806-824 MHz
HF 851-869 MHz
Passband Bandwidth 18 MHz
Minimum Gain 80 dB
Gain Adjustment Programmable 0-30 dB, 0.5 dB increments
3rd Order Output Intercept Point +55 dBm minimum. with no attenuation
Maximum Input Level 0 dBm
Maximum Output Level +30 dBm (single carrier)
RF Sampler PA Output sampler ports
Noise Figure (without attenuation 3.5 dB maximum
Propagation Delay <1 µs
Operating Temperature Range -30 °C to +50 °C
Nominal Impedance 50 ohm
VSWR <1.5:1
Preselector Rejection -35 dB at 4.75 MHz away from passband edges
Input/Output Connectors N female
RF Sampler Connectors BNC female
AC Power Input 100-240 VAC 50-60 Hz
DC Input Voltage +24 to +30 VDC, -48 VDC optional
Unit Power Consumption (AC/DC) <100 VA
Housing Painted Steel NEMA 4 (other options available)
Nominal Size 30” x 24” x 10”
Net Weight 120 lbs.
FCC Certification EZZ5PI031202
Industry Canada Certification 6150-Page Numeric pager signal for summed alarm
(consult factory for technical details) 6150-Battery 24 VDC output with 54 AH capacity
In a separate NEMA 4 enclosure 16”x24”x16”
Amplifier Modules: Hot swappable amps facilitates
easy field service and reconfiguration
Card Cage Modularity: Replacing interconnect
cables with backplane bus
Microprocess-controlled Monitoring and Alarming:
Continuous monitors multiple data points and
instantaneous alarms via LED LCD screen dry
contract closure and internal recording
Digital OLC: Enhanced Output Level Control
capability greater range for greater protection
LED bar graph for easy reading and unique
DataLog for long term system optimization
RF Test Port: Allowing measurement of output
power without interruption of operation
High Performance Filter: Tailored to customer requirements
and field-replaceable for BW reconfigurations
LCD Display Panel: Menu-driven facilitates simple
installation and controlling/monitoring without too
AC and DC Power: 11C-240AC and 24V DC are
standard on each unit
NEMA Enclosure: NEMA 4 or 4X nor-vented enclosure
for outdoor environments
