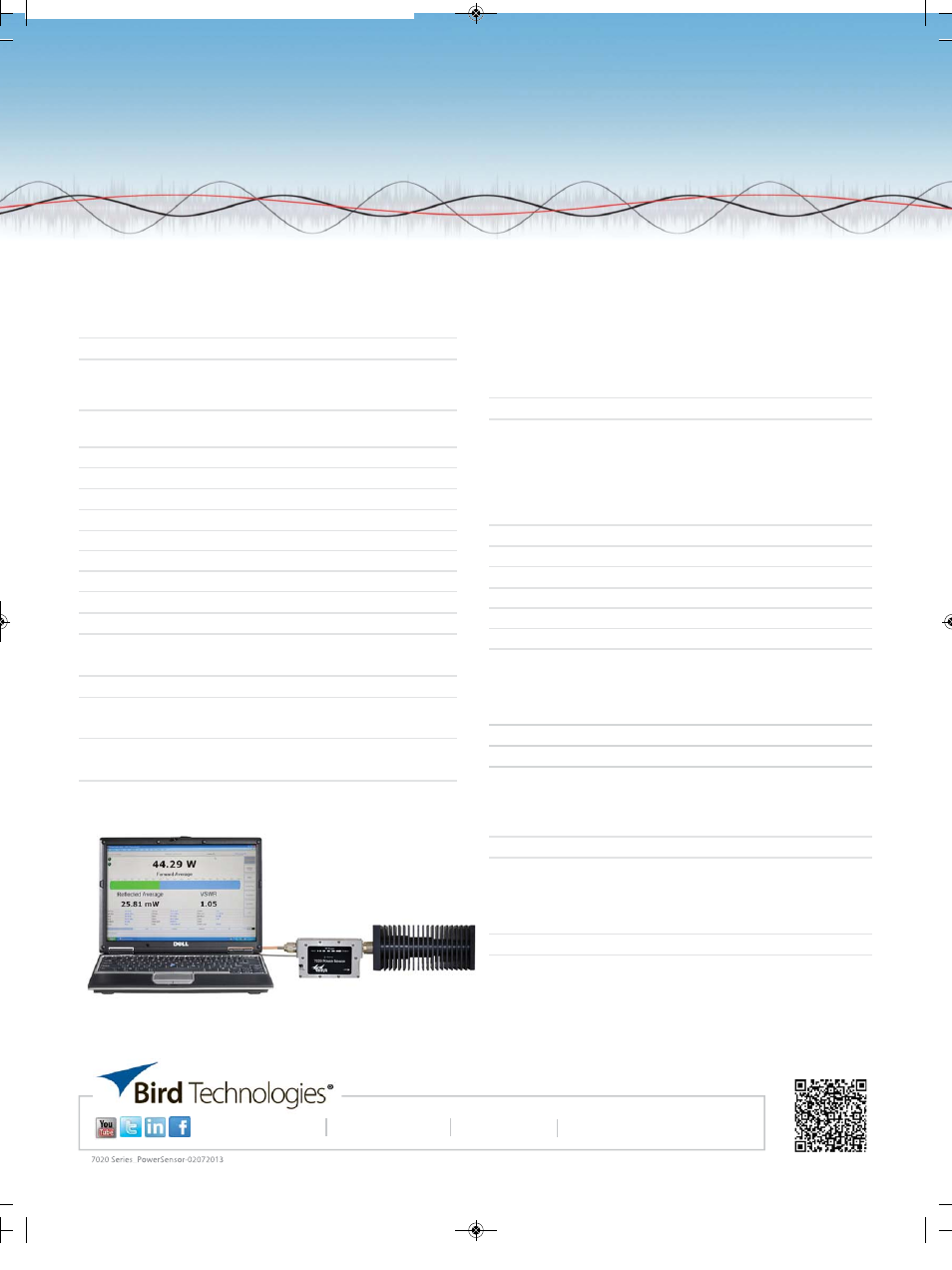

7020 Series Power Sensor
30303 Aurora Rd. Solon, OH 44139 866.695.4569 www.bird-technologies.com
SPECIFICATIONS
Frequency Range 350 MHz - 4.0 GHz
Power Measurement Range 0.15 W to 150 W
Measurement Accuracy +/- (4% of reading + 0.05 W)
(above 35 °C or below 15 °C
add 3%)
Min, Forward Power for Reflected
Measurement
5.0 W
Peak/Average Ratio, Max 12 dB
Insertion Loss, Max: 0.1 dB
Insertion VSWR 1.10 max
Impedance, Nominal 50 ohms
Response Time 3 sec
VSWR Range 1.15 to 99.9
RF Connector N Female
Directivity, Min 28 dB
Recommended Calibration Interval Annually
Power Supply
Source 5Vdc from USB host
Current Draw 35 mA
Interface
Protocol USB 2.0
Connector USB Type ‘B’ with “SeaLATCH”
locking USB connector
Data Logging with VPM2 Software
STANDARDS COMPLIANCE
CE European Standard EN 61326-1:2006 –
Electronic Equipment for Measurement,
Control and Laboratory
Use – EMC Requirements in accordance
with EMC Directive (2004/108/EC
RoHS Compliant
Upgradability Firmware field-upgradable via the USB
port
MECHANICAL AND ENVIRONMENTAL
Dimensions, Nominal 4.8“ x 2.2“ x 1.3”
(122mm x 54mm x 32mm)
Weight, nominal 0.8 lbs (0.36 kg)
Shock Mil-PRF-28800F Class 3
Vibration Mil-PRF-28800F Class 3
Operating Temperature -10 to +50 °C (+14 to +122 °F)
Storage Temperature -40 to +80 °C (-40 to +176 °F)
Humidity, Max 95% (non-condensing)
Altitude, Max 4,572 m (15,000ft)
STANDARD ACCESSORIES (INCLUDED)
5A2653-6L2 Sealatch USB Cable
VPM2 Virtual Power Meter
920-7020S Instruction Manual (Sensor)
920-VPM2 Instruction Manual (VPM2)
OPTIONAL ACCESSORIES (NOT INCLUDED)
PTA-MNMN Adapter
PTA-MNME Adapter
PTA-MNFE Adapter
COMPATIBLE DEVICES
SA-XT Series Site Analyzer
VPM2 Virual Power Meter
5000-XT Digital Power Meter
