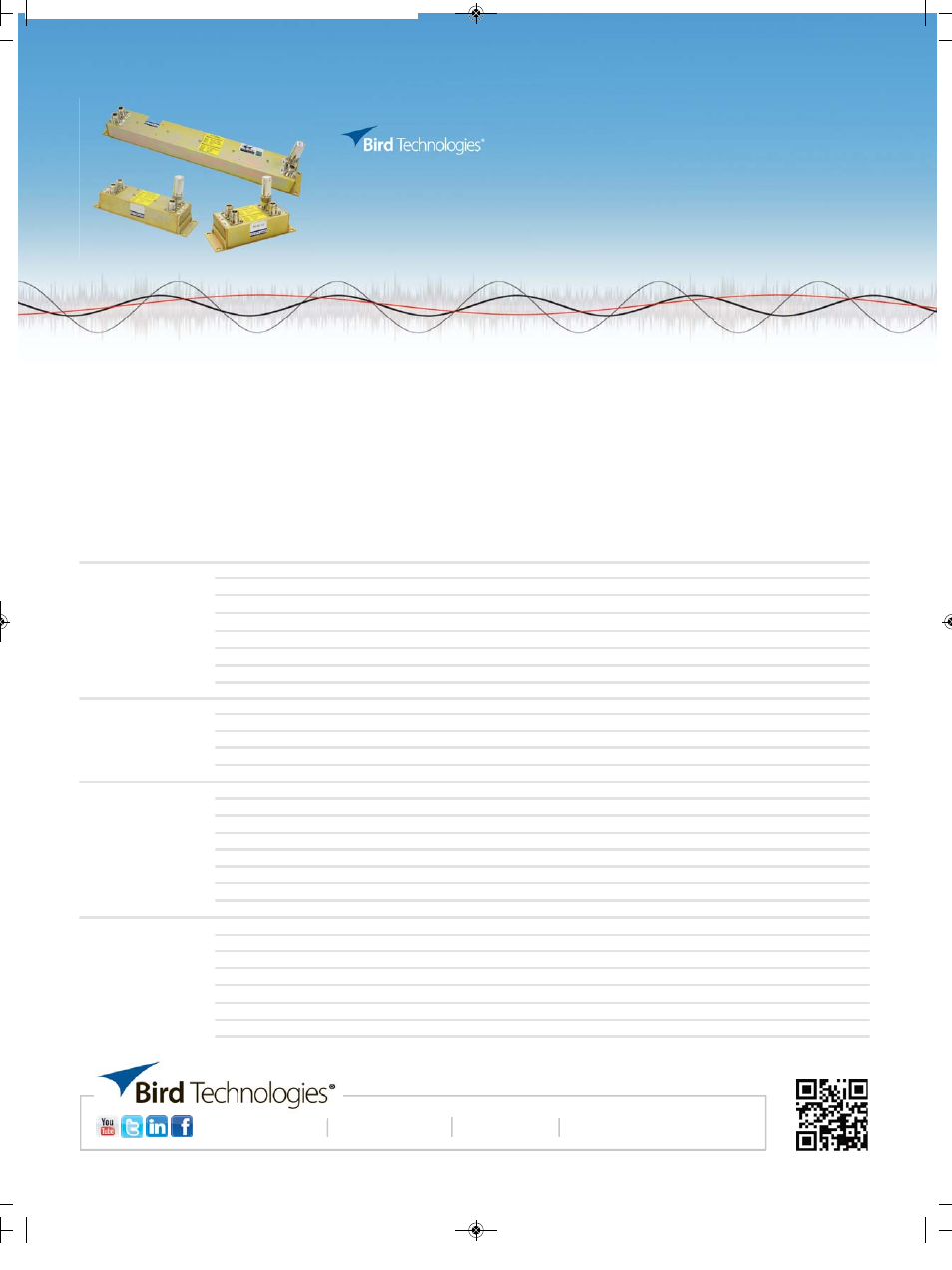

Hybrid Directional Couplers
TX RX Systems Brand
Coupler_Hybrid Directional-04172014
30303 Aurora Rd.
Solon, OH 44139
866.695.4569
www.bird-technologies.com
Used for power division and signal distribution applications. The broad array of splits facilitates balanced signal distribution in
the most comprehensive systems. Additionally, the Tri-Band products allow multi-band signal distribution via a single transmission line
where multi-agency communication systems are required. They largely eliminate the near-far problem and maximize the cost-
efficiency of the signal boosters. Bi-directional nature of the couplers allows them to be used for two-way communications with
minimal loss above the desired coupling value.
• Alodine Gold finish
• Silver plated N female connectors with gold plated pins
• Epoxy coating available upon request
• Multiple load configurations (no load, 5W, or 25W) available for different power requirements
Frequency Range
Decoupled
Value (dB)
Thruline
Loss (dB)
Power. Ratio vs
Decoupled Ports
5-Watt Load
Model No. (2.8 lbs)
25-Watt Load
Model No. (3.2 lbs)
No Load
Model No. (2.6 lbs)
VHF, UHF &
800 MHz Harmonic
(144-174 MHz,
450-530 MHz and
806-890 MHz)
-3.0 ± 0.7
-3.0 ± 0.3
50%/50%
85-05-01
85-05-0101
85-05-01-LT
-4.8 ± 0.7
-1.8 ± 0.3
67%/33%
85-05-02
85-05-0201
85-05-02-LT
-6.0 ± 0.7
-1.2 ± 0.3
75%/25%
85-05-03
85-05-0301
85-05-03-LT
-7.0 ± 1.0
-1.0 ± 0.2
80%/20%
85-05-04
85-05-0401
85-05-04-LT
-10 ± 1.0
-0.5 ± 0.2
90%/10%
85-05-05
85-05-0501
85-05-05-LT
-15
-0.2
97%/3%
85-05-06
85-05-0601
85-05-06-LT
-20
-0.2
99%/1%
85-05-07
85-05-0701
85-05-07-LT
-30
-0.2
99.9%/0.1%
85-05-08
85-05-0801
85-05-08-LT
132-174 MHz
-3.0 ± 0.7
-3.0 ± 0.3
50%/50%
85-38-01
85-38-0101
85-38-01-LT
-4.8 ± 0.7
-1.8 ± 0.3
67%/33%
85-38-02
85-38-0201
85-38-02-LT
-6.0 ± 0.7
-1.2 ± 0.3
75%/25%
85-38-03
85-38-0301
85-38-03-LT
-7.0 ± 1.0
-1.0 ± 0.2
80%/20%
85-38-04
85-38-0401
85-38-04-LT
-10 ± 1.0
-0.5 ± 0.2
90%/10%
85-38-05
85-38-0501
85-38-05-LT
350-520 MHz
-3.0 ± 0.7
-3.0 ± 0.3
50%/50%
85-58-01
85-58-0101
85-58-01-LT
-4.8 ± 0.7
-1.8 ± 0.3
67%/33%
85-58-02
85-58-0201
85-58-02-LT
-6.0 ± 0.7
-1.2 ± 0.3
75%/25%
85-58-03
85-58-0301
85-58-03-LT
-7.0 ± 1.0
-1.0 ± 0.2
80%/20%
85-58-04
85-58-0401
85-58-04-LT
-10 ± 1.0
-0.5 ± 0.2
90%/10%
85-58-05
85-58-0501
85-58-05-LT
-15.0 ± 1.0
-0.2
97%/3%
85-58-06
85-58-0601
85-58-06-LT
-20.0 ± 1.0
-0.2
99%/1%
85-58-07
85-58-0701
85-58-07-LT
-30.0 ± 1.0
-0.2
99.9%/0.1%
85-58-08
85-58-0801
85-58-08-LT
746-960 MHz
-3.0 ± 0.7
-3.0 ± 0.3
50%/50%
85-83-01
85-83-0101
85-83-01-LT
-4.8 ± 0.7
-1.8 ± 0.3
67%/33%
85-83-02
85-83-0201
85-83-02-LT
-6.0 ± 0.7
-1.2 ± 0.3
75%/25%
85-83-03
85-83-0301
85-83-03-LT
-7.0 ± 1.0
-1.0 ± 0.2
80%/20%
85-83-04
85-83-0401
85-83-04-LT
-10 ± 1.0
-0.5 ± 0.2
90%/10%
85-83-05
85-83-0501
85-83-05-LT
-15
-0.2
97%/3%
85-83-06
85-83-0601
85-83-06-LT
-20
-0.2
99%/1%
85-83-07
85-83-0701
85-83-07-LT
-30
-0.2
99.9%/0.1%
85-83-08
85-83-0801
85-83-08-LT
