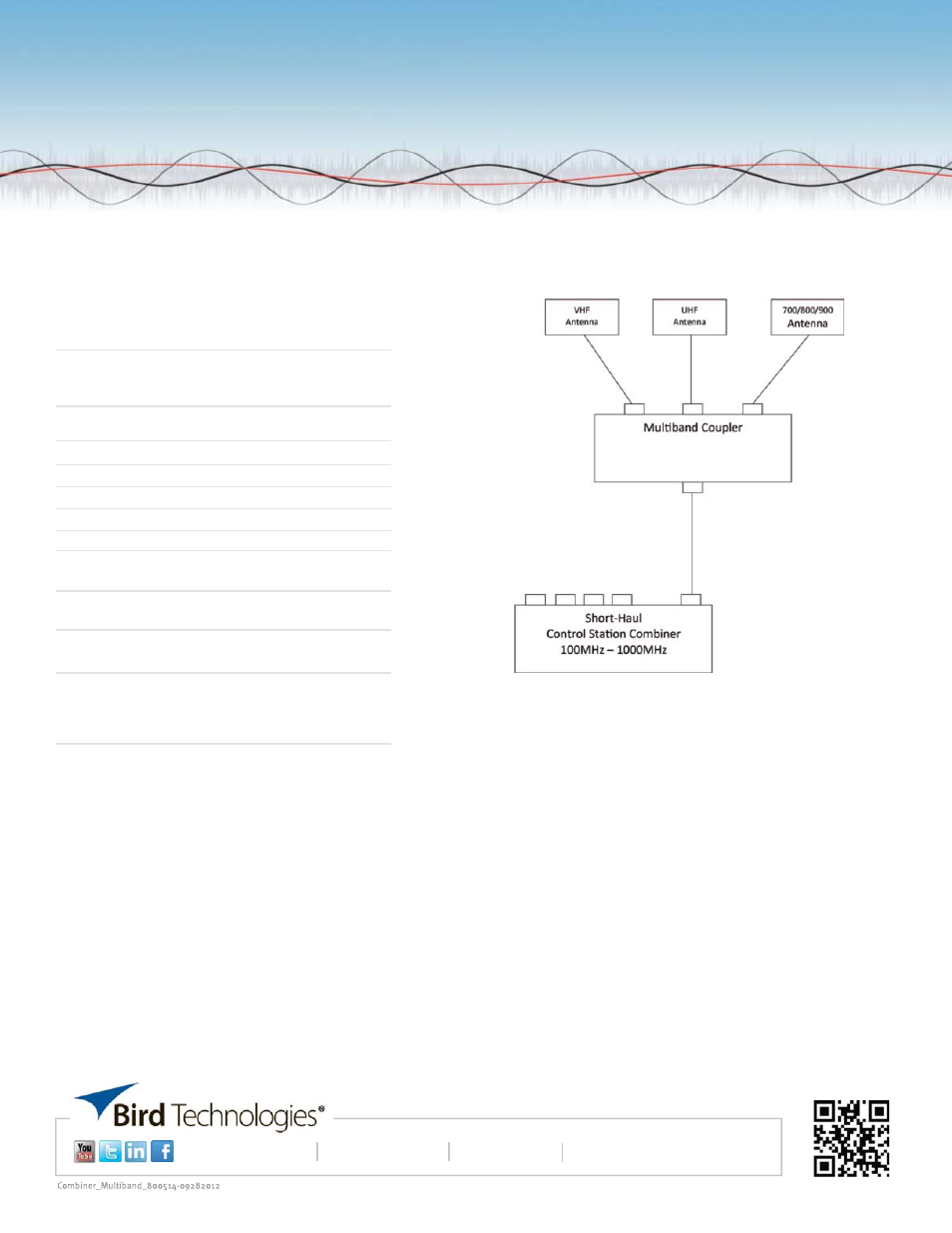

Multiband Coupler
80-05-14
30303 Aurora Rd. Solon, OH 44139 866.695.4569 www.bird-technologies.com
SPECIFICATIONS
Frequency Range 30-180 MHz
330-520 MHz
746 MHz - 1.3 GHz
Insertion Loss 30-180 MHz 1 dB max.
330-520 MHz 1.2 dB max.
746 MHz - 1.3 GHz 1.2 dB max.
Sub-band Port-Port
Isolation
>40 dB
T/R Port Return Loss >14 dB
ANT Port Return Loss >14 dB
Power Rating 30 watts max continuous
Temperature 30 to +60 °C
RF Connectors N (Female)
Environmental IP67 Subject to sealing of
connectors terminations
Mounting* Suitable for Wall or Cable Tray
Mount
Enclosure International Rating IP67
NEMA Rating 6
Size 5.6 x 3.3 x 1.3 in /
143.5 x 85.0 x 32.0 mm
(Note: Not including connectors
or brackets)
Weight 1.1 lbs /.5 kgs
* Contact factory for additional mounting options
