Digital Conduction Cooled Loads
750-CT, 1500-CT, 2500-CT
30303 Aurora Rd.
Solon, OH 44139
866.695.4569
www.bird-technologies.com
SPECIFICATIONS
Power Rating*
750-CT
1500 CT
2500 CT
750 W
1.5 kW
2.5 kW
Frequency Range
460-890
Peak to Average Power
>13 dB
VSWR
1.25:1 max
Impedance
50 Ohms (nominal)
Connector
“QC” 7/16 DIN Female normally
supplied
Coolant
Dry (Conduction Cooled)

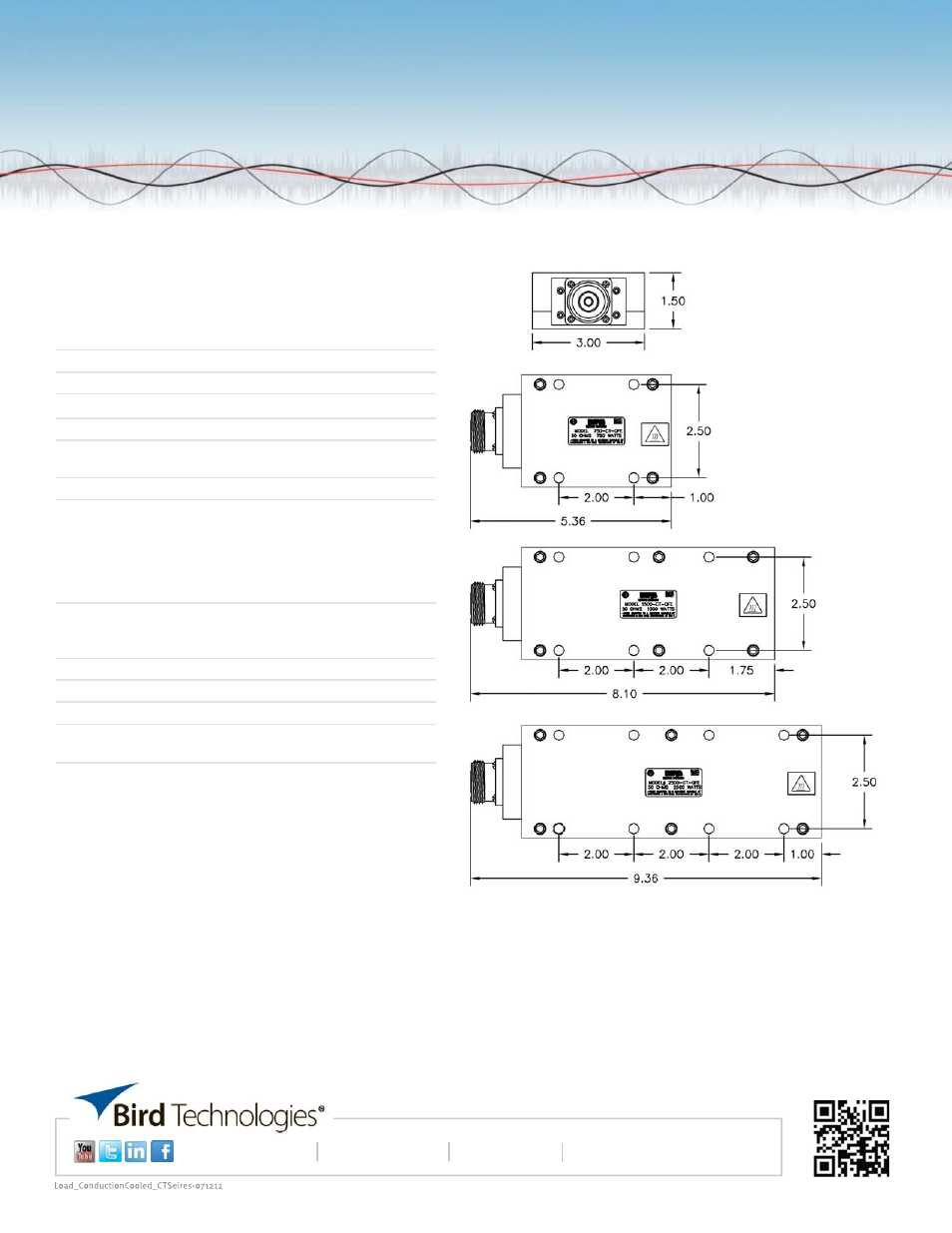

Dimensions (mm)
750-CT
1500 CT
2500 CT
5.36” x 3.00” x 1.50”
(138 mm x 78 mm x 38 mm)
8.10” x 3.00” x 1.50”
(208 mm x 78 mm x 38 mm)
9.36” x 3.00” x 1.50”
(240 mm x 78 mm x 38 mm)
Weight (kg)
750-CT
1500 CT
2500 CT
2.3 lbs (1.1 kg)
3.5 lbs (1.6 kg)
4.2 lbs (2 kg)
Operating Position
Any
Protection Rating
IP60
Ambient Temperature
-40°C to +55°C
Finish
Chromate Coating on
Aluminum/Copper
RoHS Compliant
Yes
*When mounted in a heatsink capable of maintaining a maximum case
temperature of 100°C
