APPLICATIONS
Cellular, PCS, DCS, 2G, 3G, 4G, CDMA, cdmaOne, CDMA 2000,
1x, 1x EV-DO, GSM, GPRS, EDGE, UMTS, HSDPA, W-CDMA,
TDMA, AMPS as well as 802.11, Bluetooth, Broadcast,
Emergency, Fire, GPS, HDT V, IBOC, In-Building, Lab,
Microwave, NPSPAC, Paging, Police, Private, Project 25, Public
Safety, Tactical Military, Telematics, Tetra, Trunking, Utilities,
WiMAX, WLAN and WLL.
SPECTRUM ANALYZER SPECIFICATIONS
Frequency Range 100 kHz to 3.6 GHz
Frequency Resolution 1 Hz
Frequency Uncertainty ± 1 ppm
Reference Aging ± 1 ppm / year
Temperature Drift ± 1 ppm / °C
Data Points 705 displayed
Spectral Purity –85 dBc @ 30 kHz
Sweep Time 2.2 s, full span; 1 ms, zero span
Resolution Bandwidth 100 Hz to 1 MHz RBW
Video Bandwidth 10 Hz to 300 kHz VBW
Amplitude Accuracy ± 1.0 dB typ, ± 1.5 dB max
Dynamic Range 66 dB, intermod-free
Noise Floor –135 dBm DANL
Attenuator 0, 10, 20, or 30 dB; internal
Pre-Amplifier +24 dB gain, internal
Single-Button ACPR,
Measurements Demod, C/I
Occ BW, Channel Power, Field
Strength, AM/FM
Power Meter Option: compatible with Models
5012D, 5010D, 5010T, 5011, 5011-EF, 5016D,
5017D, 5018D, and 5019D power sensors. These
external power sensors provide ± 5% (± 0.2 dB)
accuracy, with NIST Traceability.
SIGNALHAWK TM SPECIFICATIONS
Display 8.4”, TFT, 800 x 600 pixel
Battery 5.5 hour, field replaceable
Drop Test 1 meter per EN 61010-1
Transit Drop Test 10 drops per MIL-PRF-28800F
Explosive Atmosphere Per MIL-PRF-28800F 4.5.6.3
CE Compliant Yes
RF Input, N(F) +20 dBm (100 mW) max
USB Connectivity PC; USB drive and accessories
Size and Weight 11.5” x 10.5” x 3.8”, 7.8 lbs
Saved Trace Storage 300 internal; 90,000 USB drive
Win CE Viewers Word, Excel, PPT, PDF, Image
Power Meter 5012, 5010B, 5010T, 5011, 5011-EF, 5016 and
5017 External Sensors, Optional
VNA SPECIFICATIONS
Frequency Range 1.6 MHz to 3.6 GHz
Frequency +/-2 ppm uncertainty, 40 kHz res
Data Points 705 default, 12 to 11265 selectable
Sweep Time 0.6 s with 705 data points
RF Output, N(F) -40 dBm to +10 dBm, 1 dB steps
Interference Immunity +13 dBm on frequency
Directivity -42 dB calibrated
1-Port VNA Measurements Match (VSWR & Return Loss dB) Distance-to-
Fault (DTF), Cable Loss
2-Port VNA Loss/Gain -90 to +50 dB, 12/24 V Int Bias-Tee
2-Port VNA Measurements Gain & Loss (Amplifier Gain,
Insertion Loss, Antenna Isolation)
MODEL / STANDARD ACCESSORIES
7002A220-1 Soft Carry Case
920-SH36-OPS OPS Operators Manual
920-SH36-REF Start-Up Instructions
5A2653-10 USB Cable, 10 ft, USB A (M) to USB B (M)
5A2743-1 AC Adapter/Charger
5A2238-3 Car Adapter/Charger
5A2720-2 Internal Li-Ion Battery, Field Replaceable
7002A210 PC Tool Software and Manual CD’s
5A2745-1 USB Drive, Win CE Compatible
Spare standard accessories are available as optional
accessories. Manuals and soft/firmware updates available
at www.bird-technologies.com.
MODEL / VNA OPTIONAL ACCESSORIES
CAL-MN-C Calibration Combo, Open/Short/Load, N(M)
CAL-FN-C Calibration Combo, Open/Short/Load, N(F)
CAL-ME-C Calibration Combo, Open/Short/Load,
7/16 DIN(M)
CAL-FE-C Calibration Combo, Open/Short/Load,
7/16 DIN(F)
2-T-MN Load, 2 W, N(M)
2-T-FN Load, 2 W, N(F)
5A2264-09-MF-10 RS-232 Cable, 10 ft, 9-pin, (M) to (F)

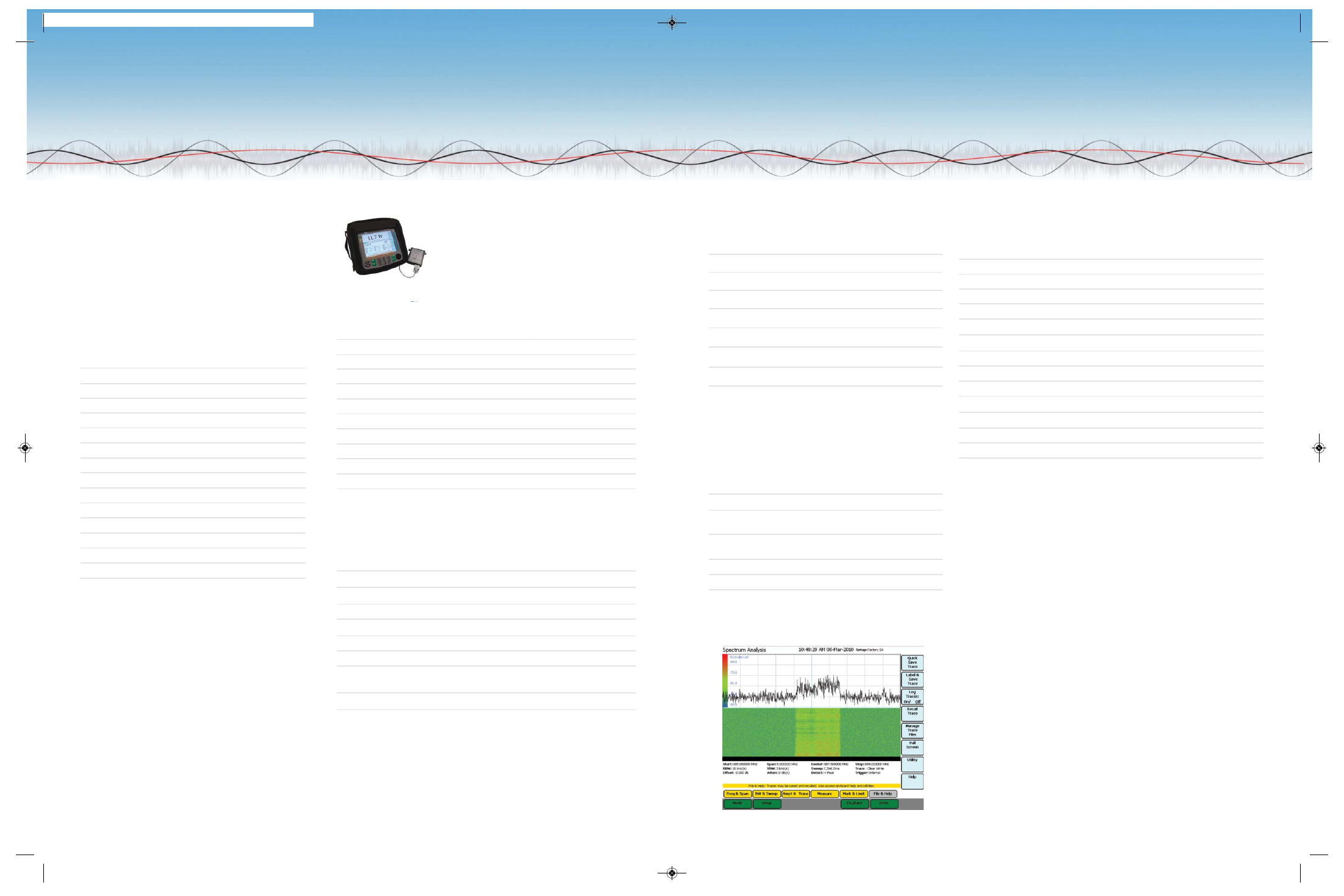

WATERFALL (SPECTROGRAPH)
MODEL / SPECTRUM ANALYZER OPTIONAL ACCESSORIES
4240-500-10 Field Strength Antenna Adapter, N(M) to SMA(F)
*Recommended for field strength antennas.
ANT-100 Field Strength Antenna, 136 to 221 MHz, SMA(M)*
ANT-400 Field Strength Antenna, 400 to 512 MHz, SMA(M)*
ANT-800 Field Strength Antenna, 824 to 894 MHz, SMA(M)*
ANT-900 Field Strength Antenna, 890 to 960 MHz, SMA(M)*
ANT-1800 Field Strength Antenna, 1710 to 1880 MHz, SMA(M)*
ANT-1900 Field Strength Antenna, 1850 to 1990 MHz, SMA(M)*
ANT-2400 Field Strength Antenna, 2400 to 2500 MHz, SMA(M)*
100-SA-MFN-40 Attenuator, 100 W, 40 dB, N(M) to N(F), 2.4 GHz
50-A-MFN-30 Attenuator, 50 W, 30 dB, N(M) to N(F), 4 GHz
25-A-MFN-30 Attenuator, 25 W, 30 dB, N(M) to N(F), 4 GHz
10-A-MFN-30 Attenuator, 10 W, 30 dB, N(M) to N(F), 4 GHz
5-A-MFN-20 Attenuator, 5 W, 20 dB, N(M) to N(F), 4 GHz
2-A-MFN-20 Attenuator, 2 W, 20 dB, N(M) to N(F), 4 GHz
5A2746-1 Headphones
