Installation procedure, Sensor location – Bendix Commercial Vehicle Systems BLINDSPOTTER INSTALLATION GUIDE User Manual
Page 10
8
Installation Procedure
Sensor Location
The Bendix
™
BlindSpotter
®
Side Object Detection Sensor should be mounted on
the side of the vehicle, between 22 and 36 inches from the ground and at least 18

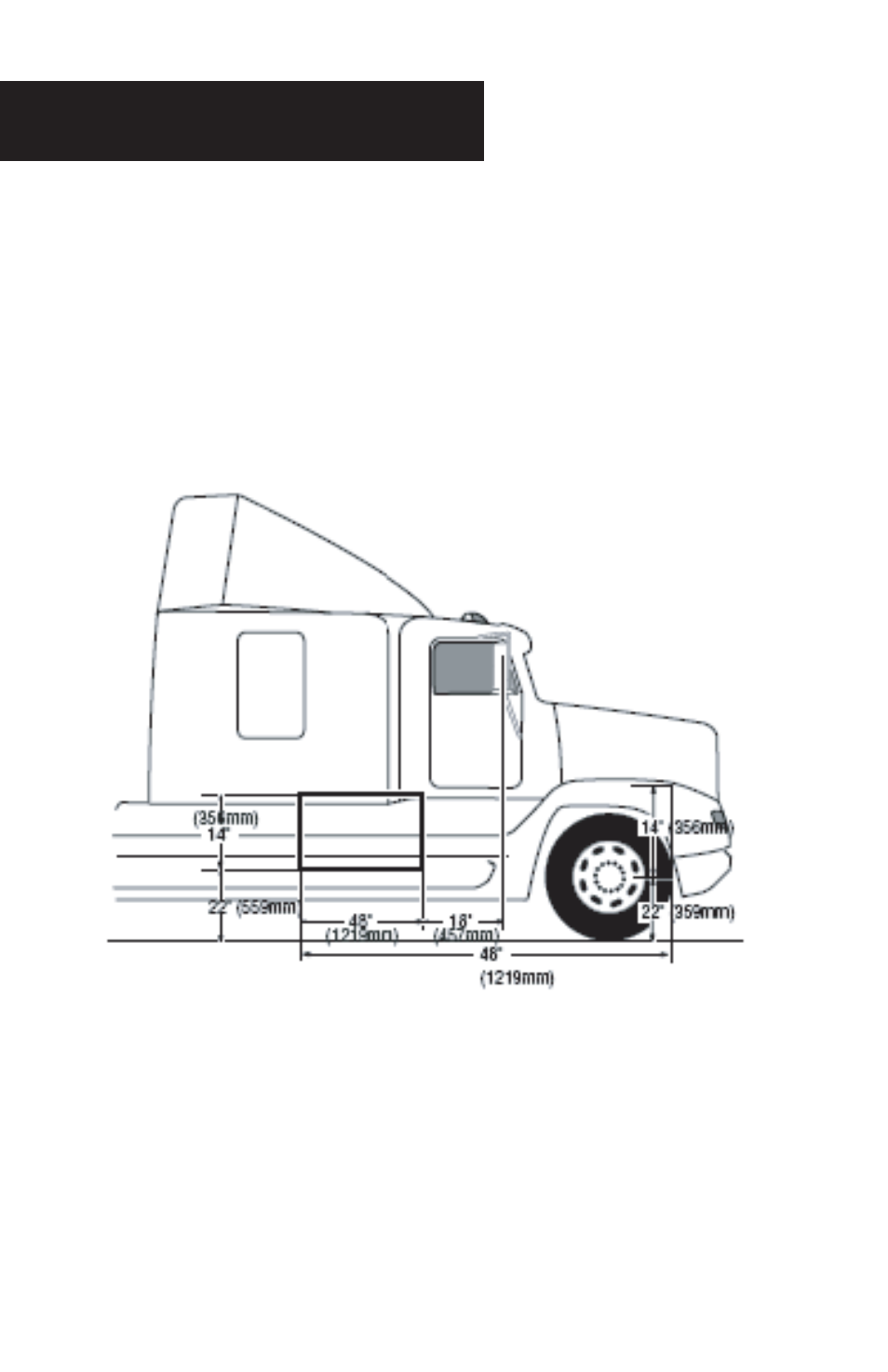

inches rear of the side view mirror (see diagram below).
Note: To reduce the possibility of the sensor detecting objects mounted to the
vehicle like the steps or fuel tanks, make sure the face of the sensor extends
out a minimum of 5/16 of an inch further than any other object within six (6)
inches of the sensor's body.
