Connections
2 * Power supply
For more information about connections, see the Guide on
www.bang-olufsen.com/guides.
For information about how to connect the music system to the mains using
the supplied power supply, please refer to its own Guide. 1* For access to internet radio, DLNA server (NAS),
3 rd party server, BeoSound 5/BeoMaster 5 setup, etc.
NOTE! Only connect to a local area network (LAN)
that does not exit your house or building.

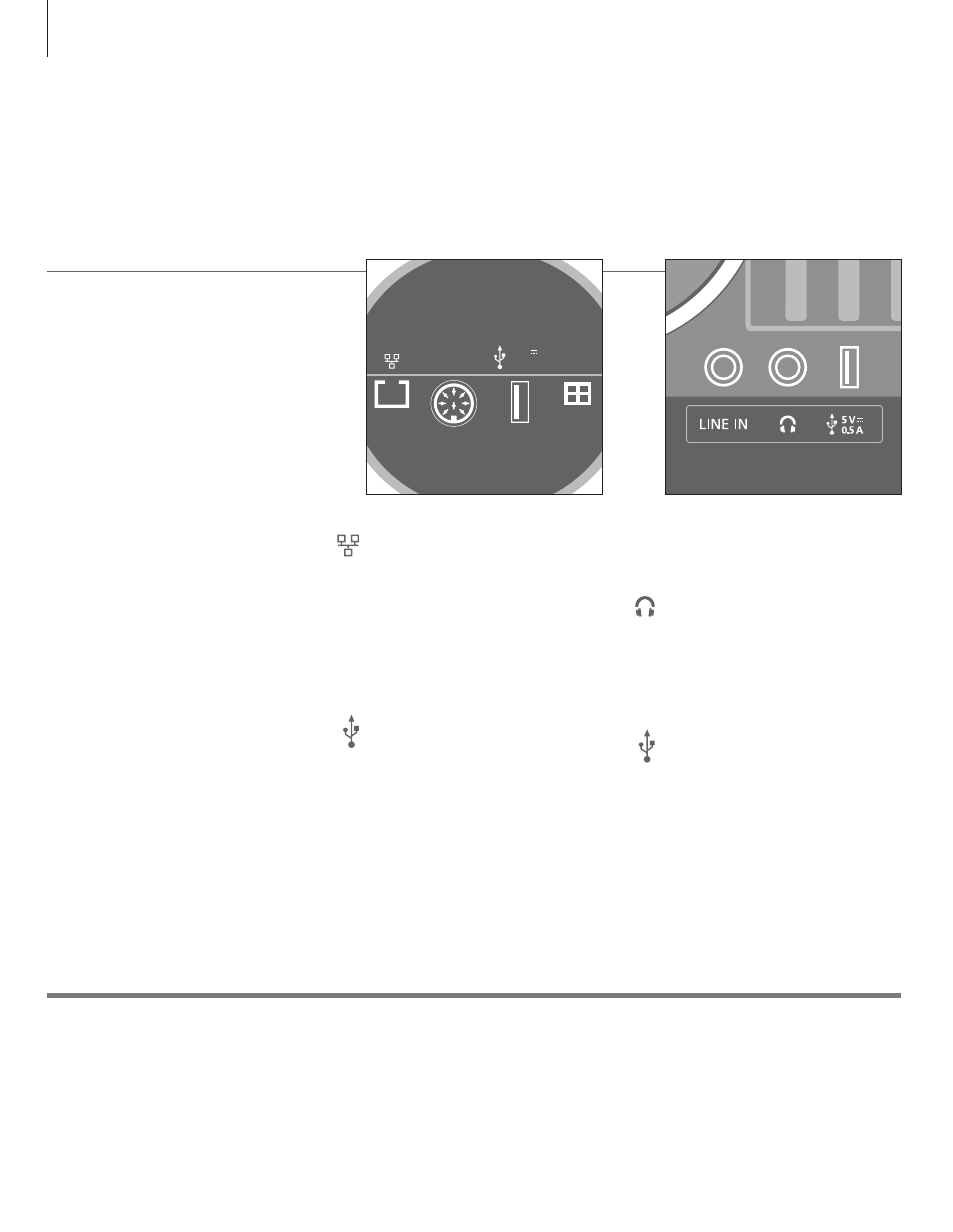

ETHERNET CONNECTION* 1
POWER LINK
Power Link socket for loudspeaker
connection
Loudspeaker connections – Power Link
Connect your active speakers to the socket
marked Power Link and loop the signal
through from speaker to speaker. Refer to
the Guides for the BeoLab loudspeakers.
USB
USB connection – for permanent music
storage on external hard disc drive.
POWER
Connect the music system to the mains
using the supplied power supply.*
2
LINE IN
Line-in connection – for connection of
an MP3 player such as an iPod.
Headphone connection
When headphones are plugged in, the
speakers, connected to your music
system, are muted.
NOTE! Prolonged listening at a high
volume level may cause hearing
damages!
USB
USB connection – for temporary music
storage on a USB stick.
Connections
Important information
The permanent sockets are placed on the back
side of the music system, whereas sockets for
temporary use are easily accessible below the
display.
Connections
To use BeoSound 5 Encore as a navigation panel for your music collection, one or
several digital music sources must be connected.
POWER
LINK
POWER
DC
5 V
0.5 A
