Connect the cables

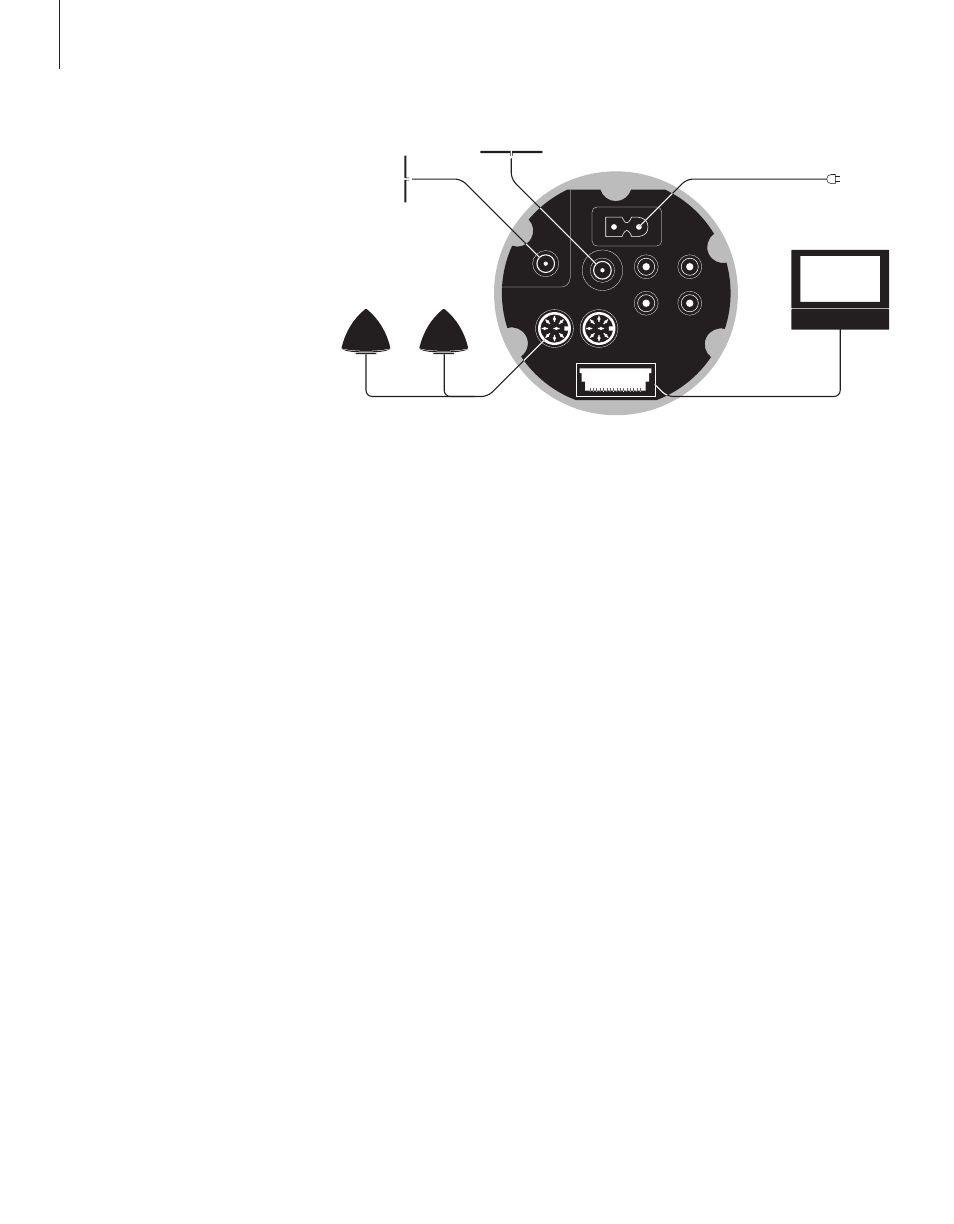

The socket panel is placed at the base
of your music system. Use the
diagram and graphics imprinted on
the socket panel unit when locating
the sockets.
Do not connect your system to the
mains until you have finished
connecting all other cables.
Aerial connections – FM/DAB*
We recommend that you connect your DAB aerial
before connecting your other aerials.
– Connect your DAB aerial to the socket marked
DAB, and your FM aerial to the socket marked
FM.
When using an FM dipole aerial …
– Tune in to the radio station you want, then turn
the aerial horisontally until you receive the best
possible signal.
When using a DAB aerial …
– Use the DAB AERIAL ADJUSTMENT menu,
described on page 15, to fi nd out where to
place your aerial. The menu lets you know how
strong the DAB signal is.
– Make sure that you hang or mount the aerial
vertically.
Do not mount your music system permanently –
for example, on a wall bracket – until you have
found out where the signal is strongest and
placed your system accordingly!
MASTER
LINK
AUX
FM
DAB
POWER LINK
OUT
~
IN
L R
24
*NOTE! The DAB socket is only available if your
music system is equipped with the built-in DAB
module.
