Cable connections
In this Guide is explained how
to set up the loudspeaker in a
setup with BeoVision 7. If used in
a setup not including BeoVision 7,
you will require a mains cord
and a Power Link cable. These
cables are avail able as optional
accessories from your Bang &
Olufsen retailer.
The socket panel is located on the
rear of the loudspeaker. For
information about the sockets on
your Bang & Olufsen system, refer
to the Guides enclosed with the
system.
Before you make any connections,
disconnect your Bang & Olufsen
system from the mains supply!
POWER LINK socket: Use this
socket to connect the loud speaker
to one of the Power Link sockets
on the Bang & Olufsen system.
Note: Do not use a Power Link cable
of the older type, as this will cause
noise, and therefore not give
optimum sound quality! The new
type has a triangular mark on the
plug.
Cable clamp: For safety reasons,
the mains cord from the wall outlet
must be secured to the loud speaker.
To do so, tug the cord behind the
clamp.
Mains cord: The supplied mains
cord and plug are specially designed
for the product. If you change the
plug or damage the mains cord, you
must buy another from your Bang &
Olufsen retailer!

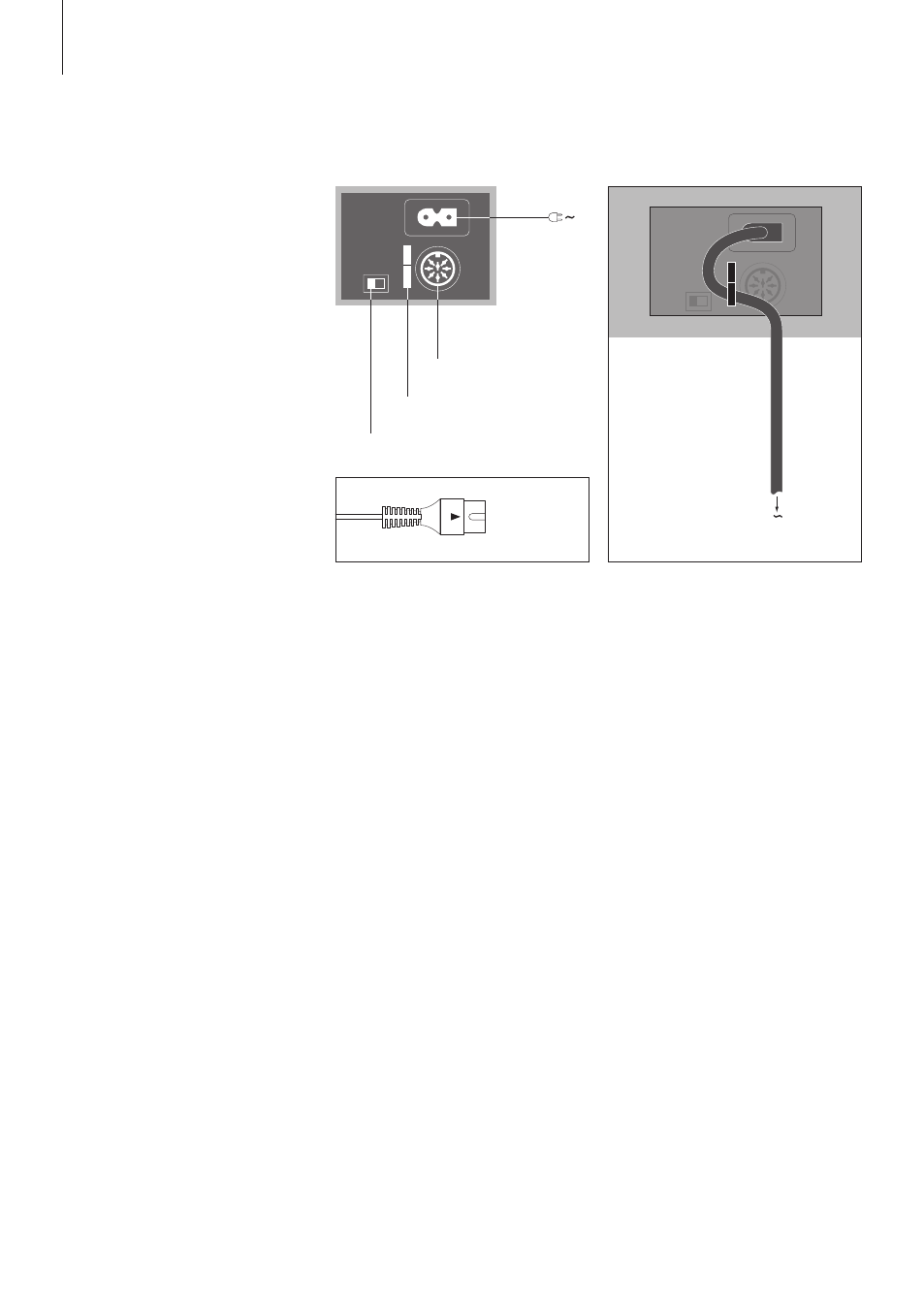

Power Link
Mk 3
6
Position switch
Cable clamp
POWER LINK
socket
