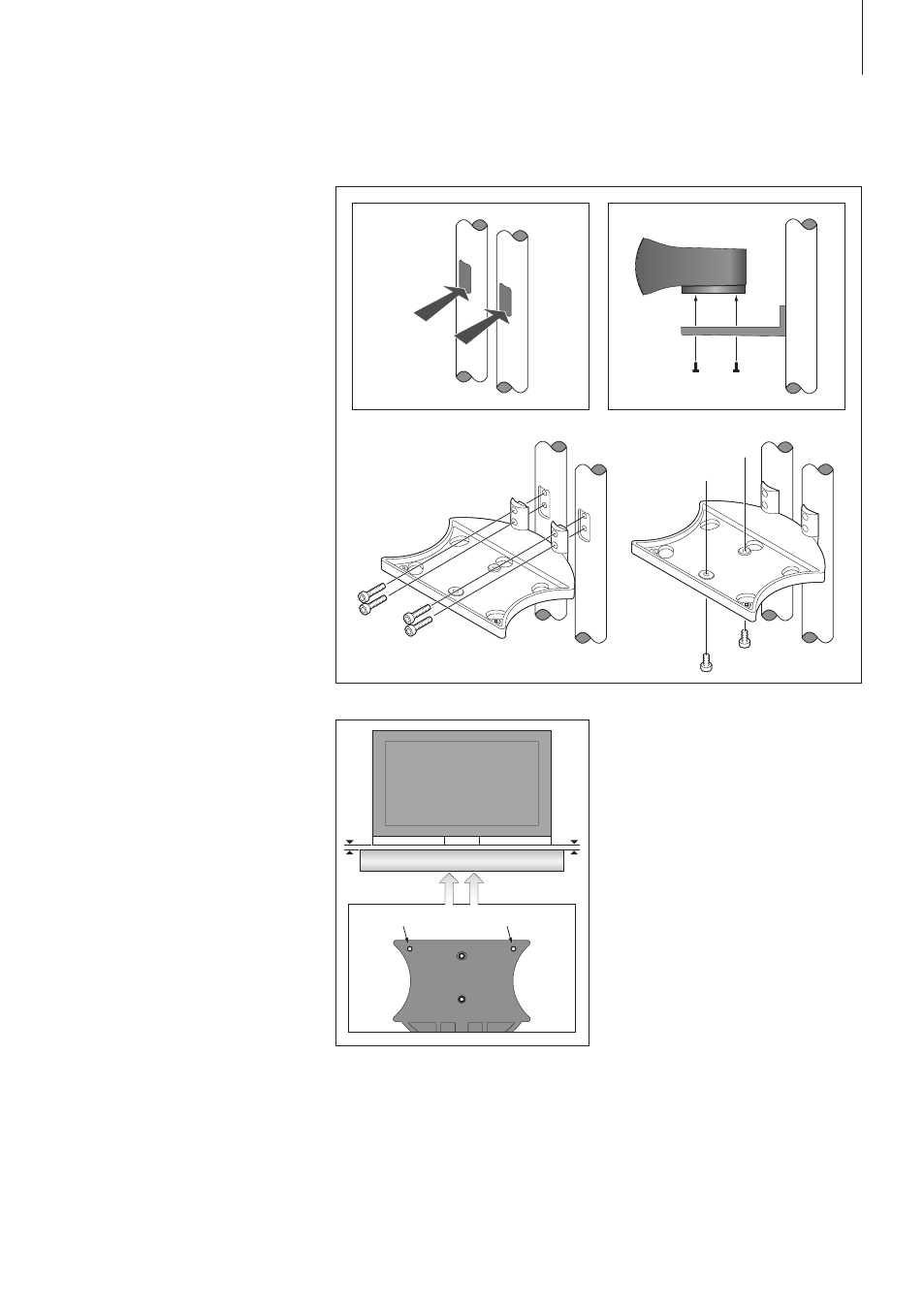

To fasten the loudspeaker
Here is explained how to fasten the
loud speaker to a Bang & Olufsen
stand.
a Remove the two small covers (if
any) on the stand. Press each
cover as shown, and they will
come loose.
b Fasten the bracket to the stand.
Use the four longest screws
(M5 × 25 mm).
c Fasten the loudspeaker to the
bracket. Use the two short screws
(M5 × 8 mm). However, do not
fully tighten the screws before
you have made the adjustments
mentioned below (d).
Adjustments: First, make sure that
the television is adjusted to a level
position on its stand! Then use the
two screws (d) to adjust the loud­
speaker so that it is parallel to the
lower edge of the television. Align
the loud speaker front with the tele­
vision and tighten the two screws
(c).
