7

…to a non-Bang & Olufsen

product

The phono socket marked LINE must be

used instead of the Power Link sockets if

the BeoLab 1 is to be connected to a non-

Bang & Olufsen product (using e.g. a cable,

part no. 6270595). The signal must be on a

regulated low-voltage level.

• Connect one speaker to each of the sound

channels.

• The switch marked L • R • LINE must, in this

case, be set to LINE on both speakers (set the

switch to its utmost right position).

…to the mains

Connect the enclosed mains cord to the

socket marked POWER, but do not connect

it to the wall socket yet.

Running the cables

You might find it easier to “thread” the

cables into the enclosed cable cover before

you connect them to the BeoLab 1.

Cable cover: Use the enclosed tool to “zip up”

the cable cover when you have placed both the

mains cord and the Power Link cable inside it.

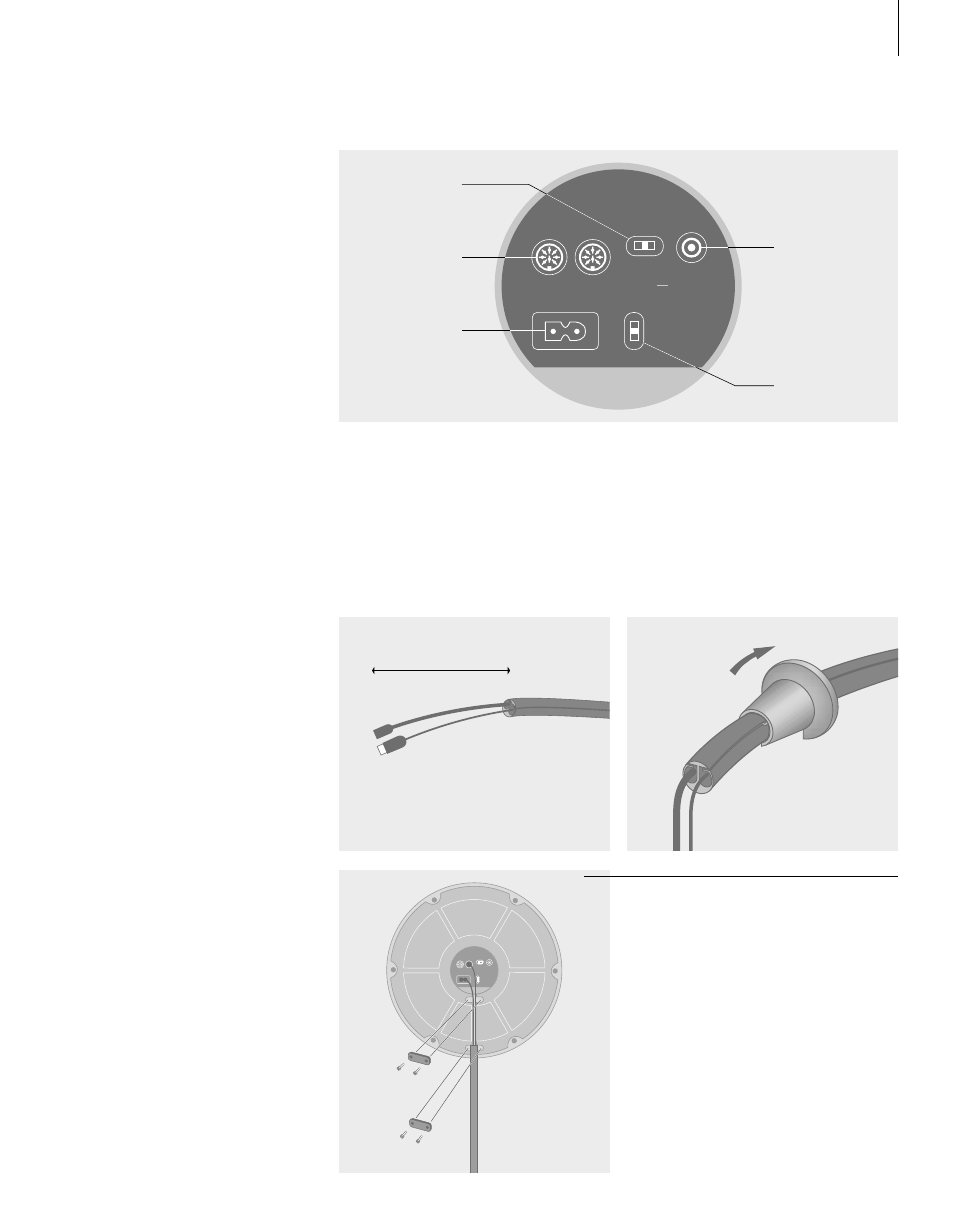

1 POWER LINK 2

POWER

L R LINE

SPEAKER POSITION

FREESTANDING
AGAINST WALL
IN CORNER

25 cm / 10"

L • R • LINE

switch

Power Link

connections

Connection to

the mains

LINE
connection

Speaker Position
switch

Cable clamps: For safety reasons you must

fasten the cables and cable cover with the two

clamps, as shown.
