Balboa Water Group GS-Series Configuration Guide - Manual

Output Features Quadrant
J50 Audio Visual (always hot - no relay) 3-A
J47 Circ Pump 3-A
J29 Ozone 4-A
J23 2-Speed Pump 1 4-A
J20 Spa Light 8-B
System can be factory configured for either a Duplex Topside Panel,
a Serial Standard Panel, or a Digital Deluxe Panel.
Note: Some panels styles are not available depending on system
configuration. Consult your Balboa product representative for details.

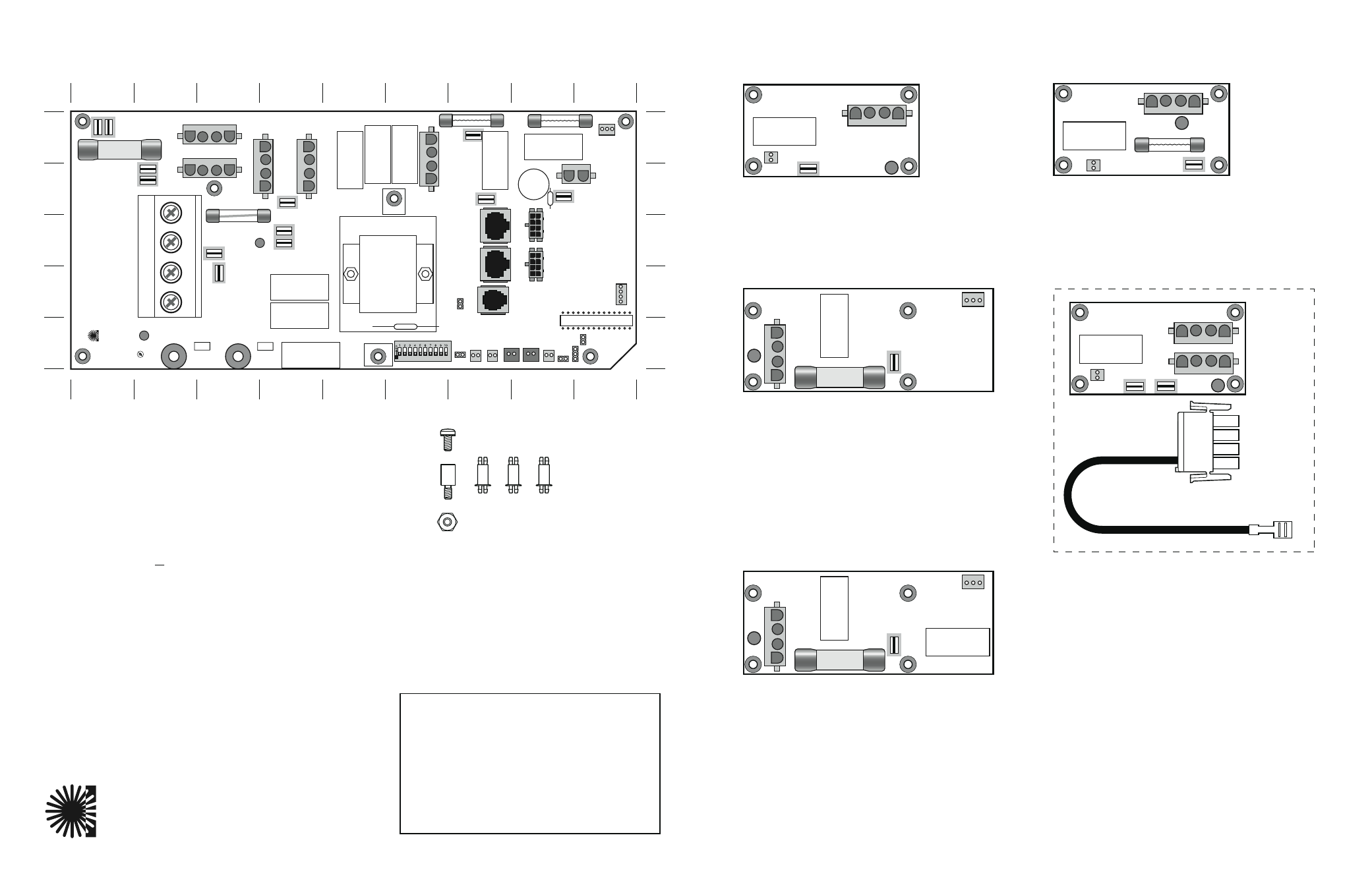

GS500Z Configuration Guide
GS500Z Expander Board Options
Instruments
Balboa
Incorporated
X-P CE
Used for a 1-speed Pump output.
• J4 on X-P CE connects directly to Line AC
using J52 or J51 on the main GS500Z PCBA.
• J2 on X-P CE connects to J60 on the main board.
• W12 on X-P CE connects directly to Neutral AC
using J57 or J58 on the main GS500Z PCBA.
Document PN 40508_F
02-02-2007
PN 53547
X-Mount P
Used for mounting any Expander Board
in a plastic enclosure.
Standoffs attach to heater mounting bracket. PN 53933
A
B
C
D
E
A
B
C
D
E
1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9
G N
G N
J6
J7
J4 J5
J2
W12
K2
G N
J6
J4
J2
W12
K2
X-B CE
Used for a Blower output ONLY.
• J3 on X-B CE connects directly to Line AC
using J52 or J51 on the main GS500Z PCBA.
• J2 on X-B CE connects to J60 on the main board.
• W12 on X-B CE connects directly to Neutral AC
using J57 or J58 on the main GS500Z PCBA.
PN 53311
PN 55025 X-P231 CE
Can replace the X-P CE in cases where branch circuit
protection is needed for high amperage devices that
would over-burden power input fuse F6 (1-A) on the
main PCBA.
• J6 on X-P231 CE connects directly to Line AC
using J25 or J32 on the main GS500Z PCBA,
depending on AC Service Configuration.
• J7 on X-P231 CE connects to J60 on the main board.
• W1 on X-P231 CE connects directly to Neutral AC
using J57 or J58 on the main GS500Z PCBA.
PN 55138 X-P332 CE
Can replace the X-P CE in cases where branch circuit
protection is needed for high amperage devices that
would over-burden power input fuse F6 (1-A) on the
main PCBA.
• J6 on X-P332 CE connects directly to Line AC
using J25 or J32 on the main GS500Z PCBA,
depending on AC Service Configuration.
• J7 on X-P332 CE connects to J13 on the main board.
• W1 on X-P332 CE connects directly to Neutral AC
using J57 or J58 on the main GS500Z PCBA.
X-2SP CE Kit
Adapter PN 25339 is used in conjuction with
an X-O3 CE to run a 2-speed Pump 2.
No Blower is available when this kit is used.
• J4 on X-03 CE connects directly to Line AC
using J52 or J51 on the main GS500Z PCBA.
• J2 on X-03 CE connects to J60 on the main board.
• W12 on X-03 CE connects directly to Neutral AC
using J57 or J58 on the main GS500Z PCBA.
• J5 on X-03 CE connects J17/26 connector on
the main GS500Z PCBA using adapter wire VS-P2.
PN 53985
VS-P2 Adapter Wire
PN 25339
To J5 on X-O3
To J17/26
(Blower/P2)
NOTE Regarding J12 (Quadrant 9-E):
When J12 on the Main Board is jumpered on
pins 2 & 3, the system is in GS50xZ compatibility
mode.
If J12 on the Main Board is jumpered on pins 1 & 2,
the system is in GS51xZ/GS5xxSZ/GS5xxDZ
compatibility mode.
G N
J6
J3
J2
W12
K2
F10A 250V
F5
G
R
B
W
J1
W1
J7
J6
F30A 480V
X-P231 CE
PN 55025
P/N 22909 REV B
G
R
B
W
J1
W1
J7
J6
F30A 480V
X-P332 CE
PN 55138
P/N 22909 REV B
TB1
HTR2 J101 J100 HTR1
G N
J50
T1
J1
J2
J10
J57
J58
J71
J46
J25
J26
J72
J90
J28
J1A
J2A
J32
J52 J51 F6, T30A 480V
AV
OZONE PUMP 1
OPT. BLWR/PUMP 2
CIRC. PUMP
K1
K3
K4
K6
E.GND
E.GND
J47
G N
G
N
G
N
J29 J23
G
N
J17/26
K2
K9
J20
N G
W2
1
2
3
4
W1
Balboa
BALBOA INSTRUMENTS, INC.
GS500Z
COPYRIGHT 2006
MADE IN U.S.A.
P/N 22015_A J60 J44
J18
1
1
1
1 1 1 1
J7 J8
EXT RLY
TST
J6
SEN A VAC SEN B
J22
J43
AUX F
J18
J13
J11
J12
J19
F2
S1
SWITCHBANK A
K8
K5
C9
U4
F3A 250V
F7 F1
F10A 250V
F4, T0.3A 250V
Pb
F3
