Section 5: Assembly Procedures

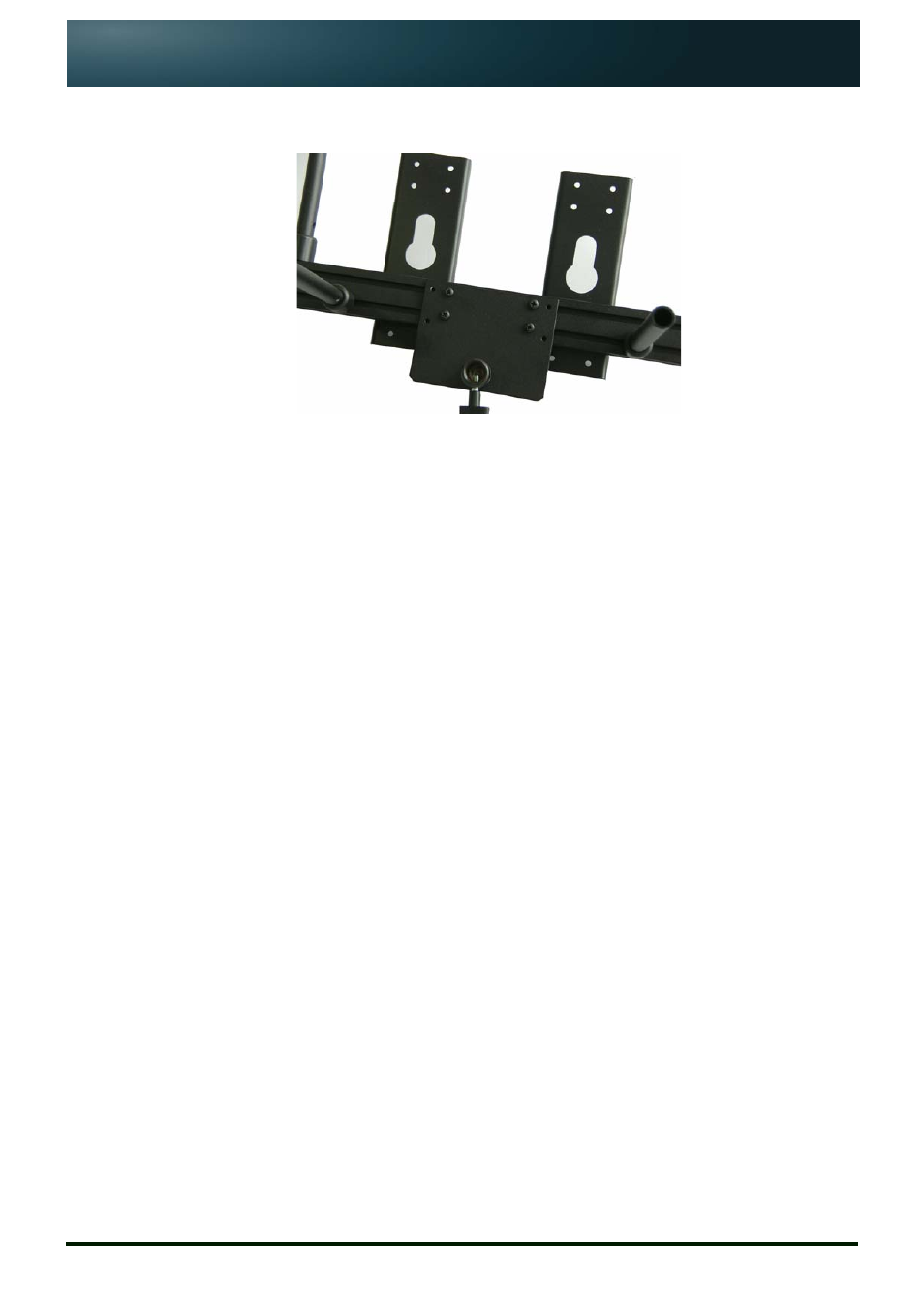

Attach Magic Arm mounting plate to OCU bracket
Position monitor below OCU
TFM17
Assembly and Installation
Guide
8. Replace the plastic end caps and re-attach the horizontal mounting bar
that was remover in step 1 above.
9. Replace the OCU bracket assembly on to the tripod mounting plate.
